Oil Pan: Service and Repair

REMOVAL
1. Raise vehicle on hoist and drain engine oil.
2. Remove front engine torque bracket from bending strut and insulator mount.

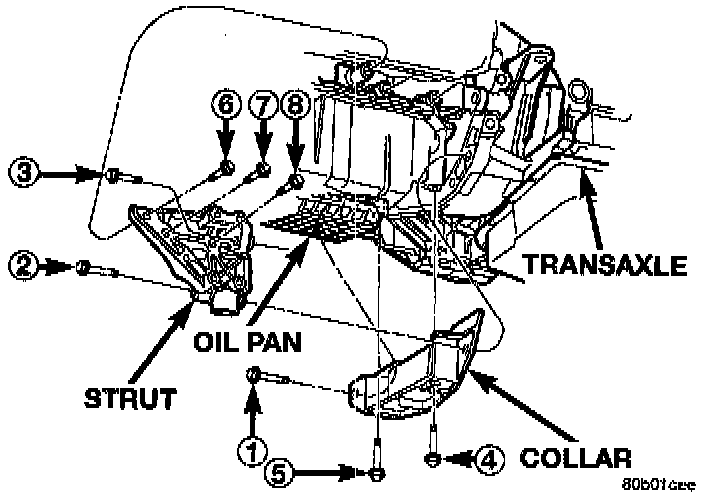

Structural Collar And Bending Strut-Removal And Installation:

3. Remove bolts attaching collar and bending strut to engine, oil pan, and transaxle. Remove strut and collar.
4. Remove oil pan.
5. Clean oil pan and all gasket surfaces.

INSTALLATION

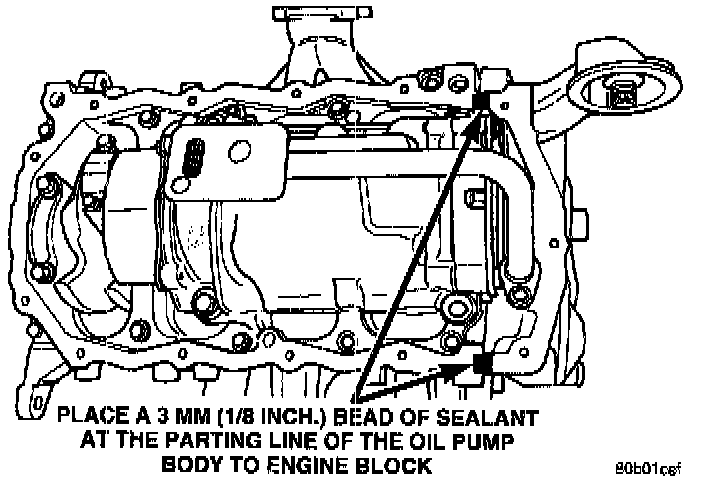

Oil Pan Sealing:

1. Apply Mopers Silicone Rubber Adhesive Sealant or equivalent at the oil pump to engine block parting line .

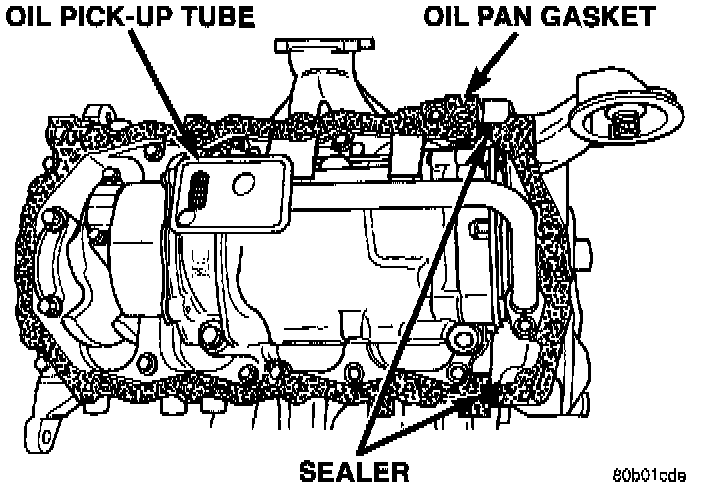

Oil Pan Gasket Installation:

2. Install the oil pan gasket to the block.
3. Install pan and tighten the screws to 12 Nm (105 inch lbs.).

CAUTION: Torque procedure for the structural collar and bending strut must be followed or damage could occur to oil pan, collar, and/or bending strut.

4. Perform the following steps for installing structural collar and bending strut:
- Step 1: Place collar into position between transaxle and oil pan. Install collar to transaxle bolt 1, hand start only.
- Step 2: Install collar to oil pan bolt 4, hand tight only.
- Step 3: Position bending strut in place and hand start only bolt 3 into the upper transaxle hole.
- Step 4: Install bolt 2, through strut and collar, hand start only.
- Step 5: Install bolt 6, strut to cylinder block, hand tight only.
- Step 6: Install the remaining collar to oil pan bolt 5, hand tight only.
- Step 7: Final torque collar to transaxle bolts 1 -3, to 101 Nm (75 ft. lbs.).
- Step 8: Install bolts 7 and 8, through strut and into cylinder block.
- Step 9: Final torque bolts 4 - 8 to 61 Nm (45 ft. lbs.).
5. Install front torque bracket. Tighten torque bracket to bending strut bolts to 33 Nm (24 ft. lbs.) and front engine mount through bolt to 61 Nm (45 ft. lbs.).
6. Lower vehicle and fill engine crankcase with proper oil to correct level.
