Engine Support Module (Front and Rear Mounts)
REMOVAL1. Raise vehicle on hoist.
2. Remove thru bolt at rear mount and remove bolts attaching module to crossmember.

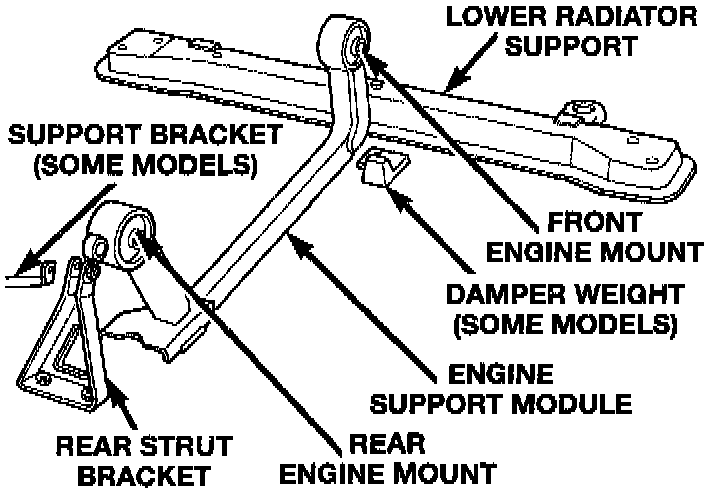

Engine Support Module:
3. Remove upper attaching bolt from rear support strut bracket.
4. Remove front attaching bolts from support module to lower radiator support.
5. Support cooling module.
6. Remove lower radiator support bolts, and remove support.
7. Remove thru bolt at front mount and remove support module.
INSTALLATION
1. Install thru bolt at front mount. Do not tighten at this time.
2. Install lower radiator support.
3. Install attaching bolts from support module to lower radiator support.
4. Install upper bolt at rear support strut bracket.

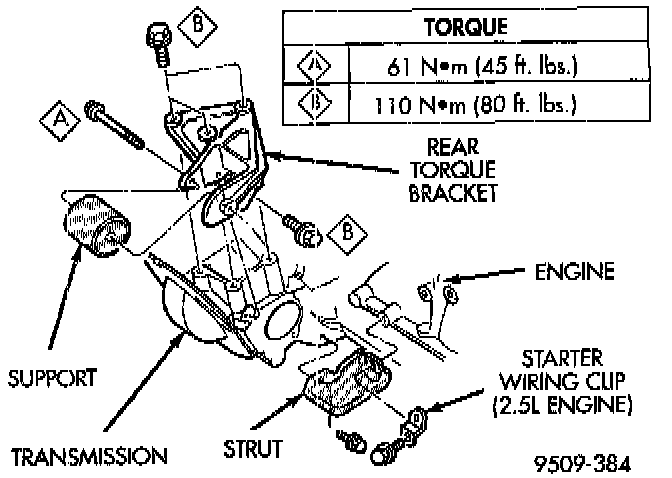

Engine Mounting-rear 2.4L:
5. Install thru bolt at rear mount. Tighten to 61 Nm (45 ft. lbs.).
Engine Mounting Front-2.4L:
6. Tighten thru bolt at front mount tighten to 61 Nm (45 ft. lbs.).
