Cleaning and Inspection

REMOVAL
1. Remove air intake plenum.
2. Cover lower intake manifold with a suitable cover during service.
3. Disconnect and relocate spark plug wires.

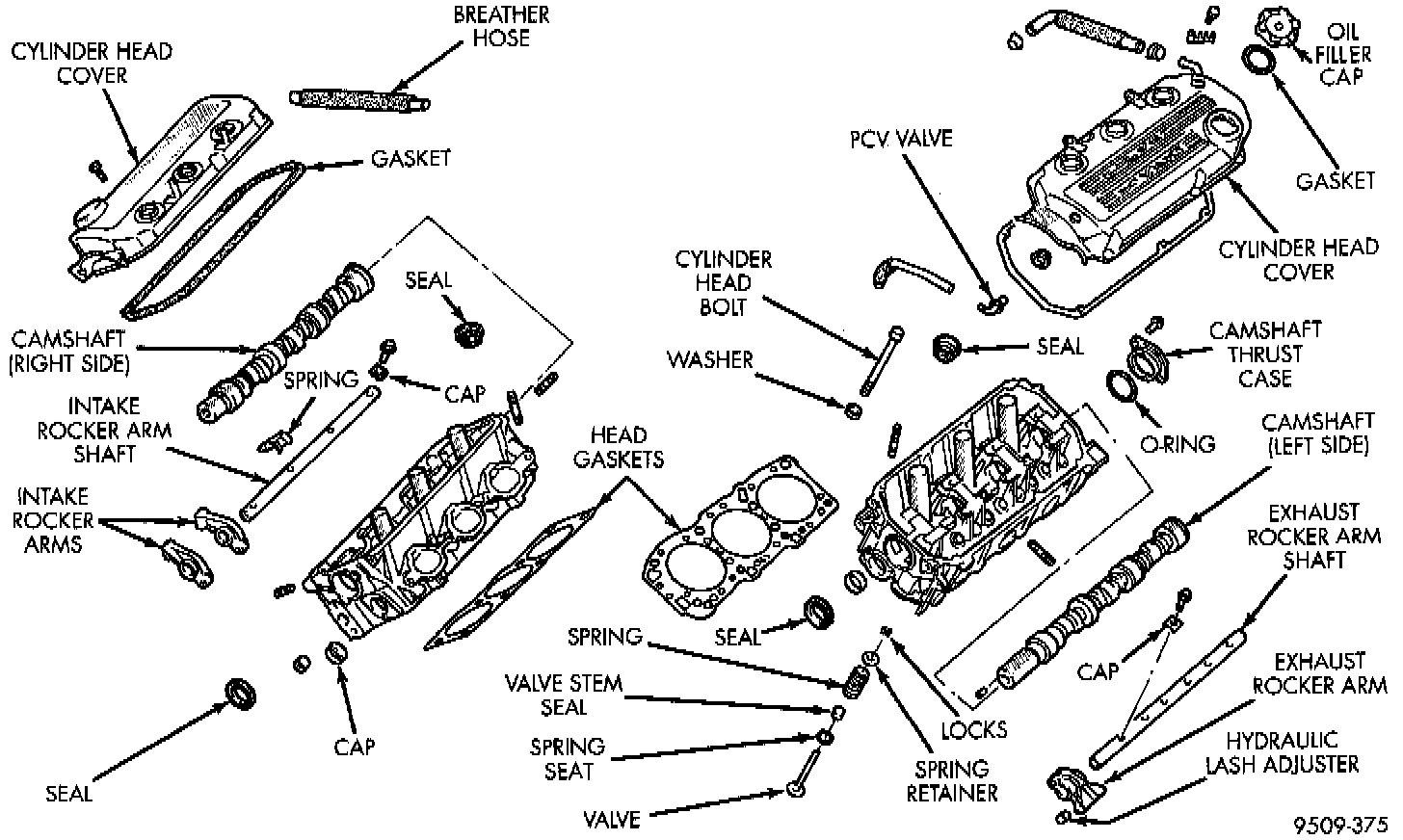

Cylinder Head Components:

4. Remove cylinder head cover screws and remove cover.

INSTALLATION

NOTE: Before installation, clean cylinder head and cover mating surfaces. Make certain the rails are flat.

1. Clean cylinder head and cover mating surfaces. Install new gasket.
2. Install cover and tighten cover bolt washer and gasket assembly to 10 Nm (88 inch lbs.).
