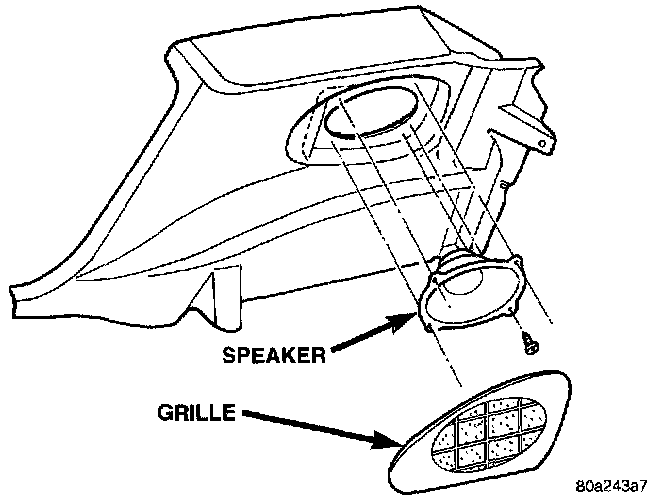

Rear Quarter Panel Speaker

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

REMOVAL
1. Remove rear quarter panel trim grille.

Rear Speakers:

2. Remove four retaining screws.
3. Disconnect wire connector and remove speaker.

INSTALLATION
For installation reverse the above procedure. Be sure that the wire connectors are facing rearward in vehicle.
