Door Mounted Speaker

CAUTION: Do not operate the radio with speaker leads detached. Damage to the output devices may result.

REMOVAL

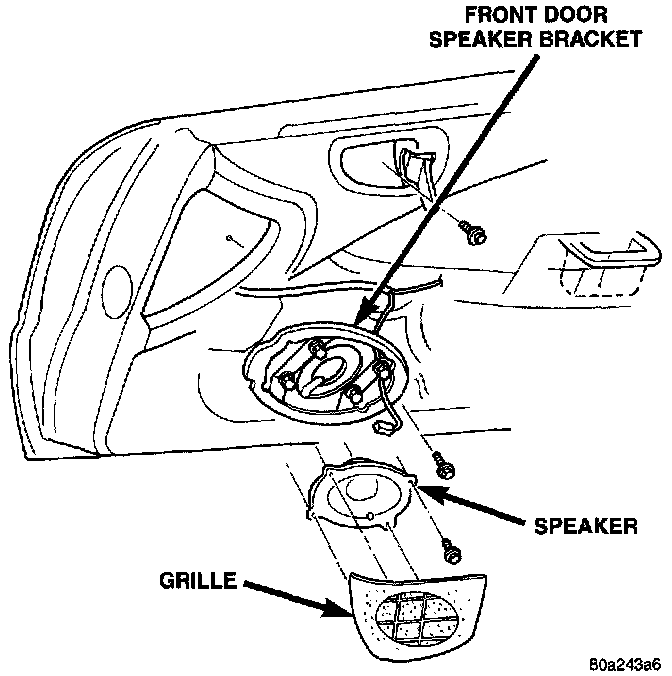

Door Mounted Speaker:

1. Carefully, pry speaker grille away from door trim panel.
2. Remove four speaker retaining screws.
3. Pull speaker away from door and disconnect wiring.

INSTALLATION
For installation reverse above procedures. Ensure speaker is in the proper position
