Manual Antenna

Check for short or open circuits with an ohmmeter or continuity light once the antenna cable is disconnected from the radio. The radio coax cable has a connector that connects behind the between passenger seat and console.

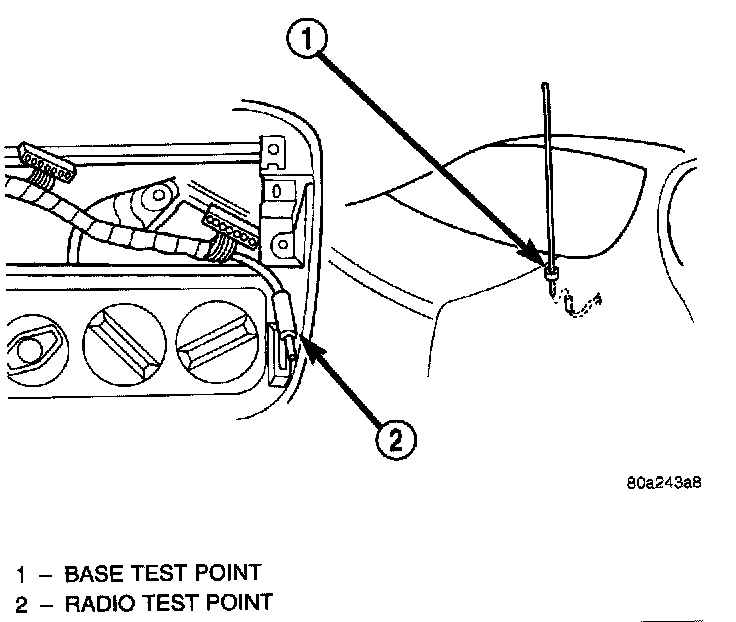

Antenna Test Points:

1. Continuity should be present between the antenna base and radio end pin of antenna cable plug.
2. No continuity should be observed or a very high resistance of several megohms between the ground shell of the connector and radio end pin.
3. Continuity should be observed between the ground shell of the connector and the mounting hardware in the trunk right rear quarter panel.
