A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Antilock Brakes / Traction Control Systems
>>
Diagnostic Charts (By Test or Chart Number)
>>

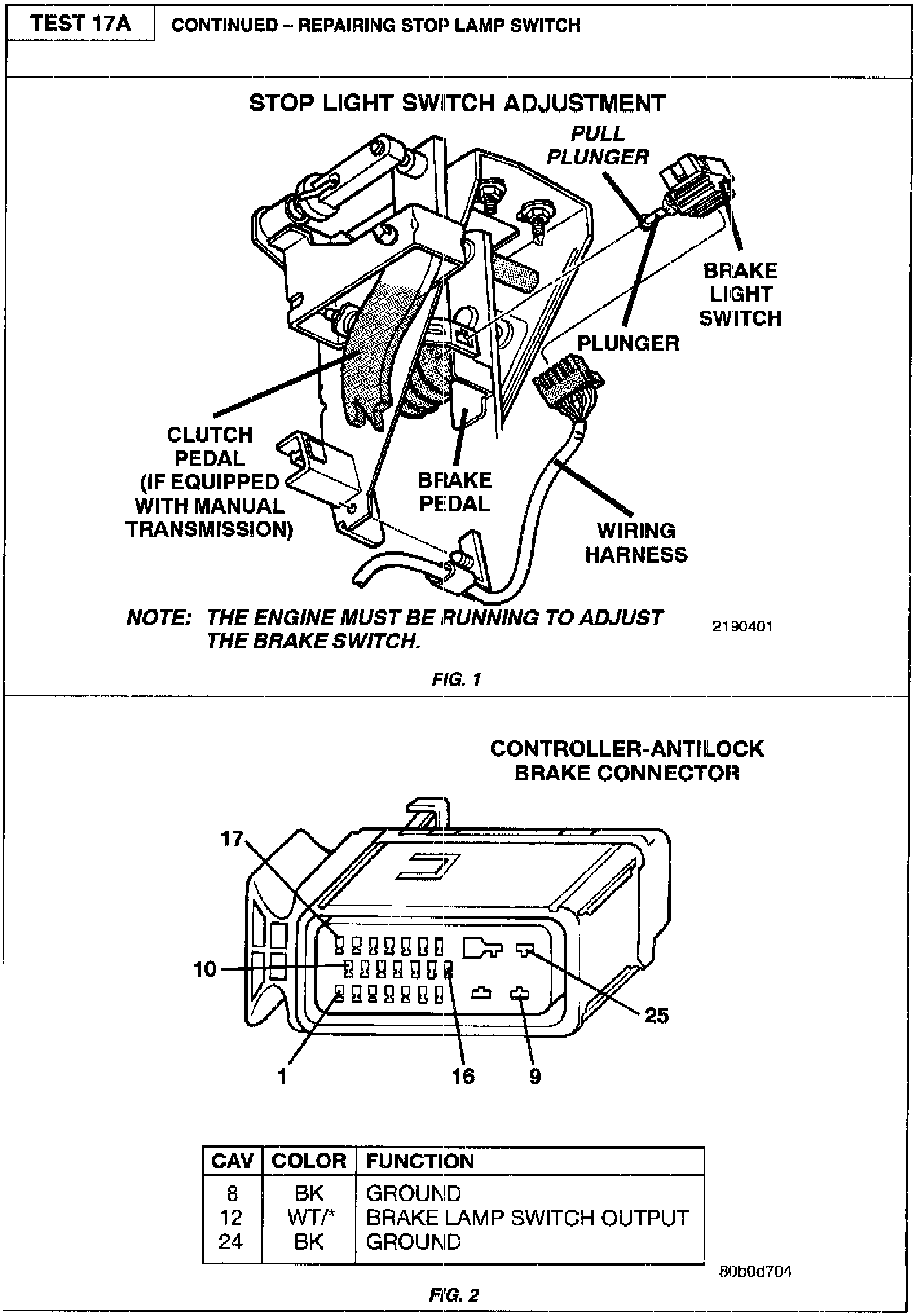

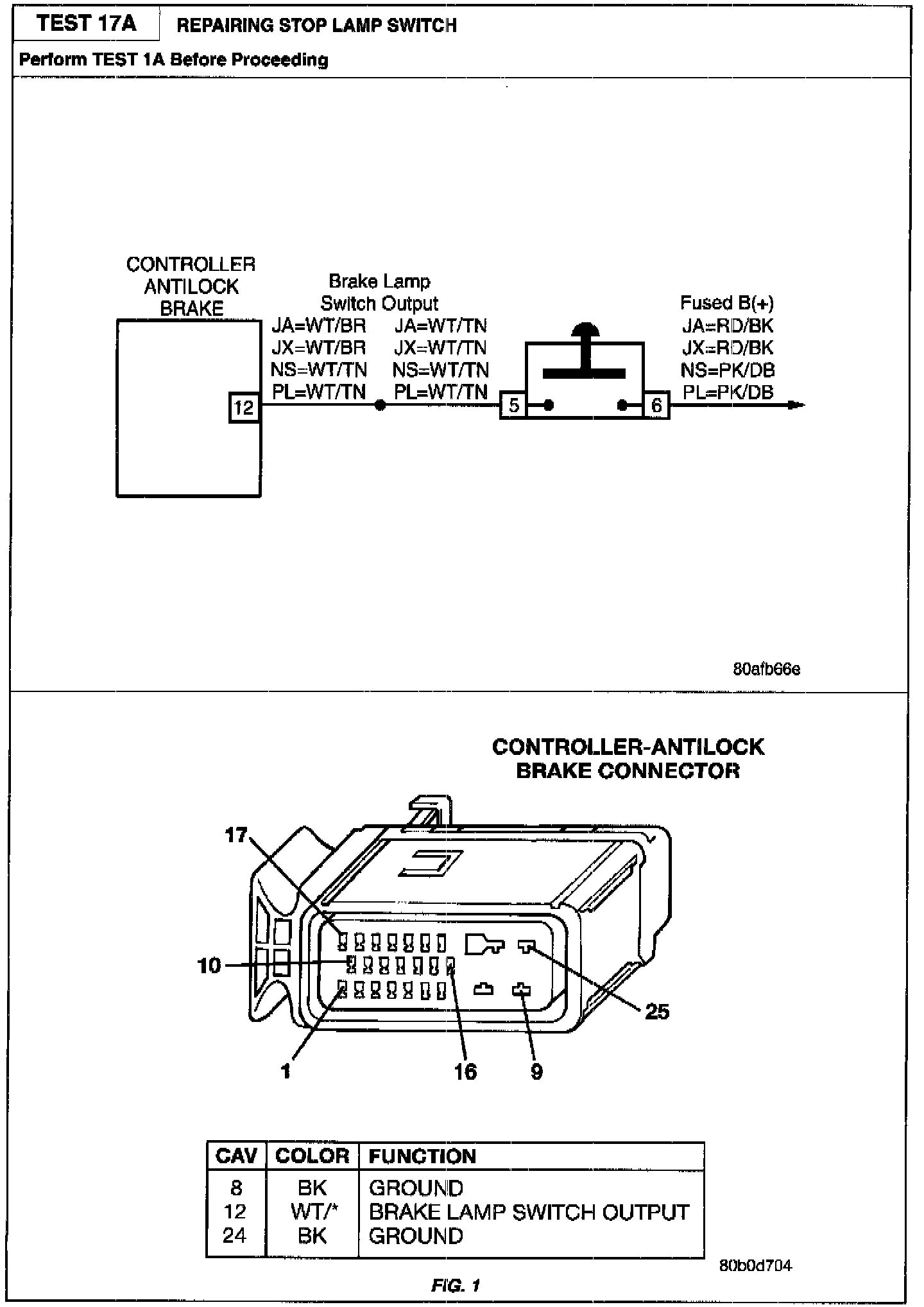

Test 17A - Stop Lamp Switch
Test 17A - Stop Lamp Switch
Related Figures:

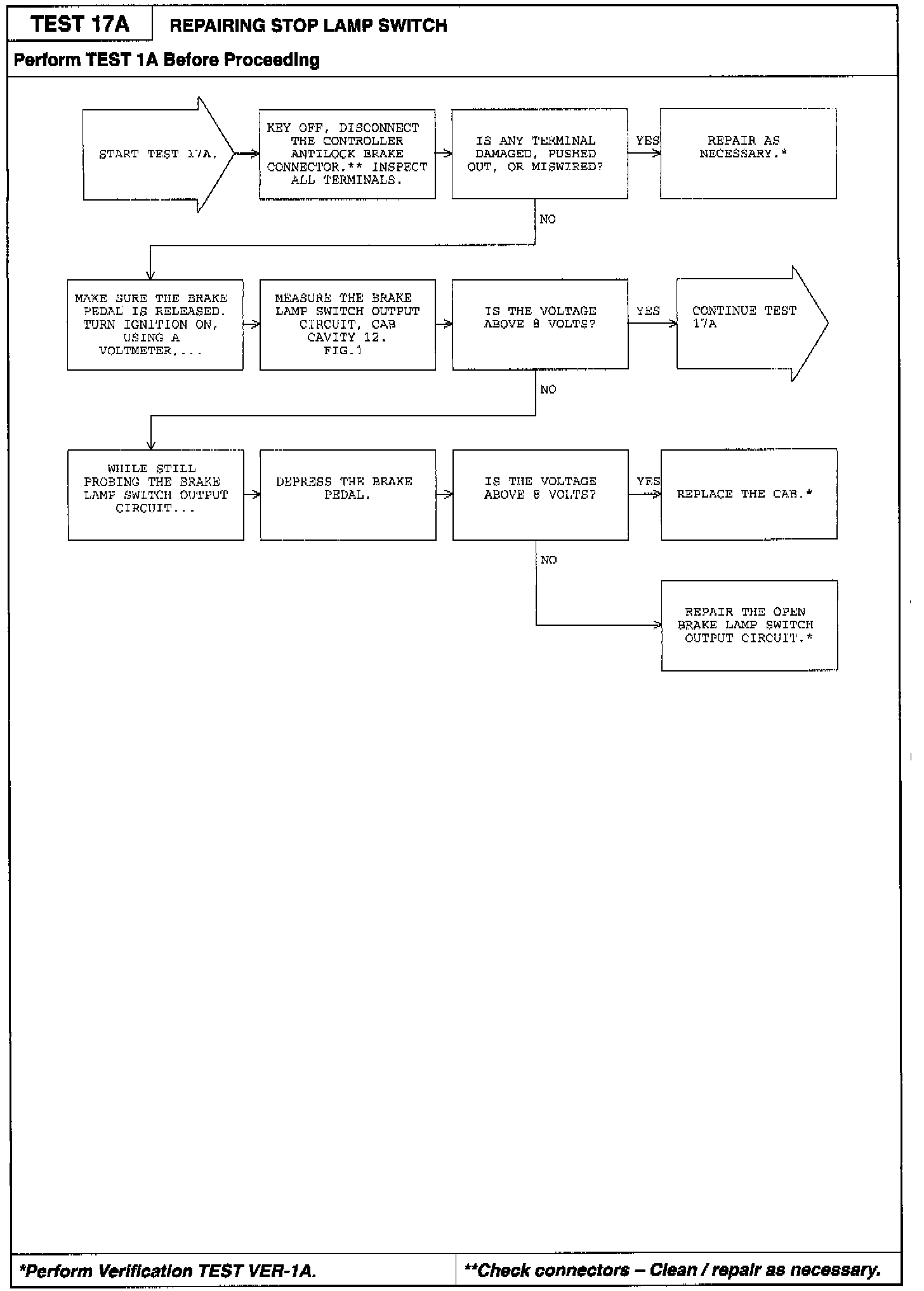

Diagnostic Chart:
Related Figures:

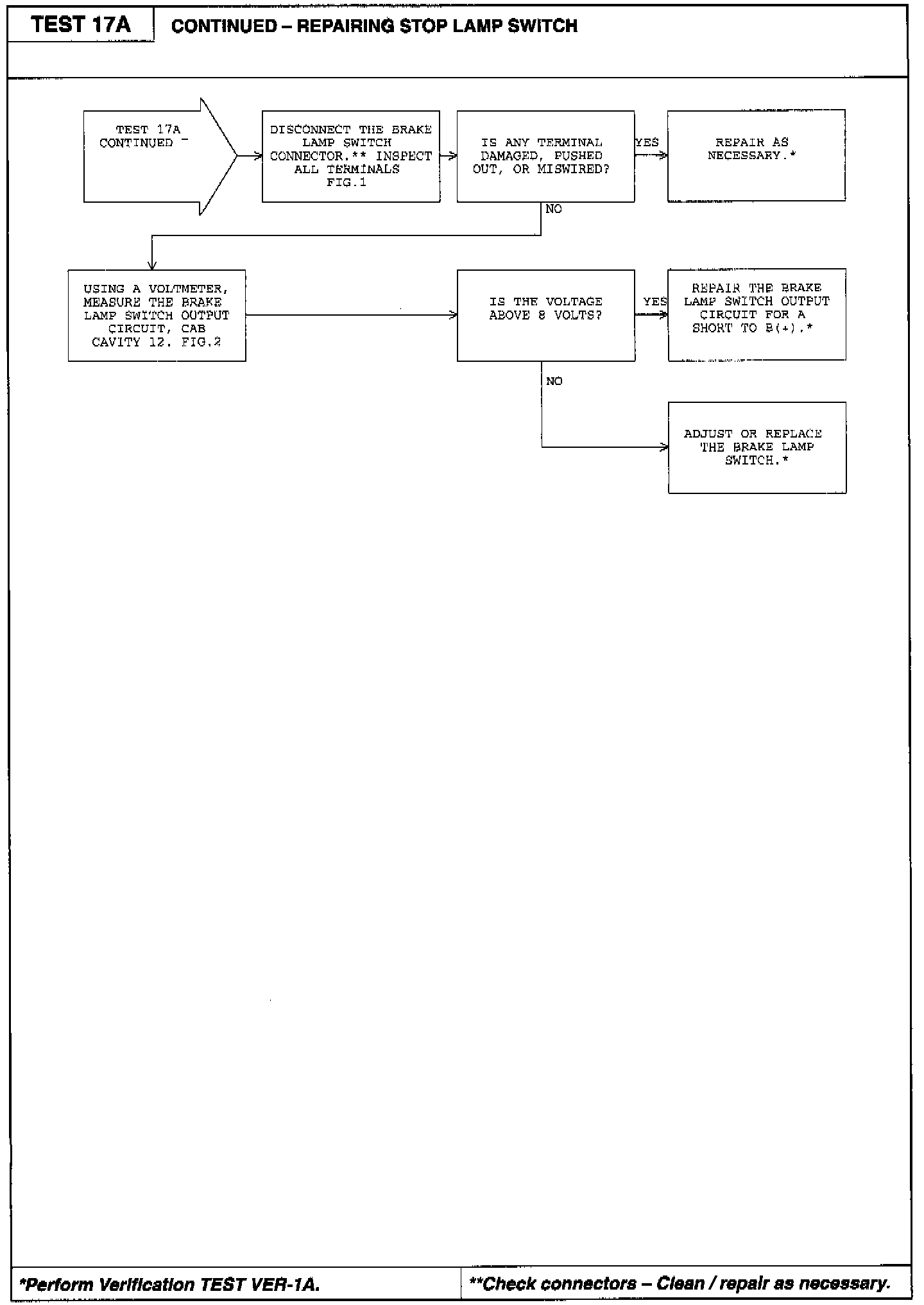

Diagnostic Chart:
