Test 11A - CAB Power Feed Circuit
Test 11A - CAB Power Feed Circuit

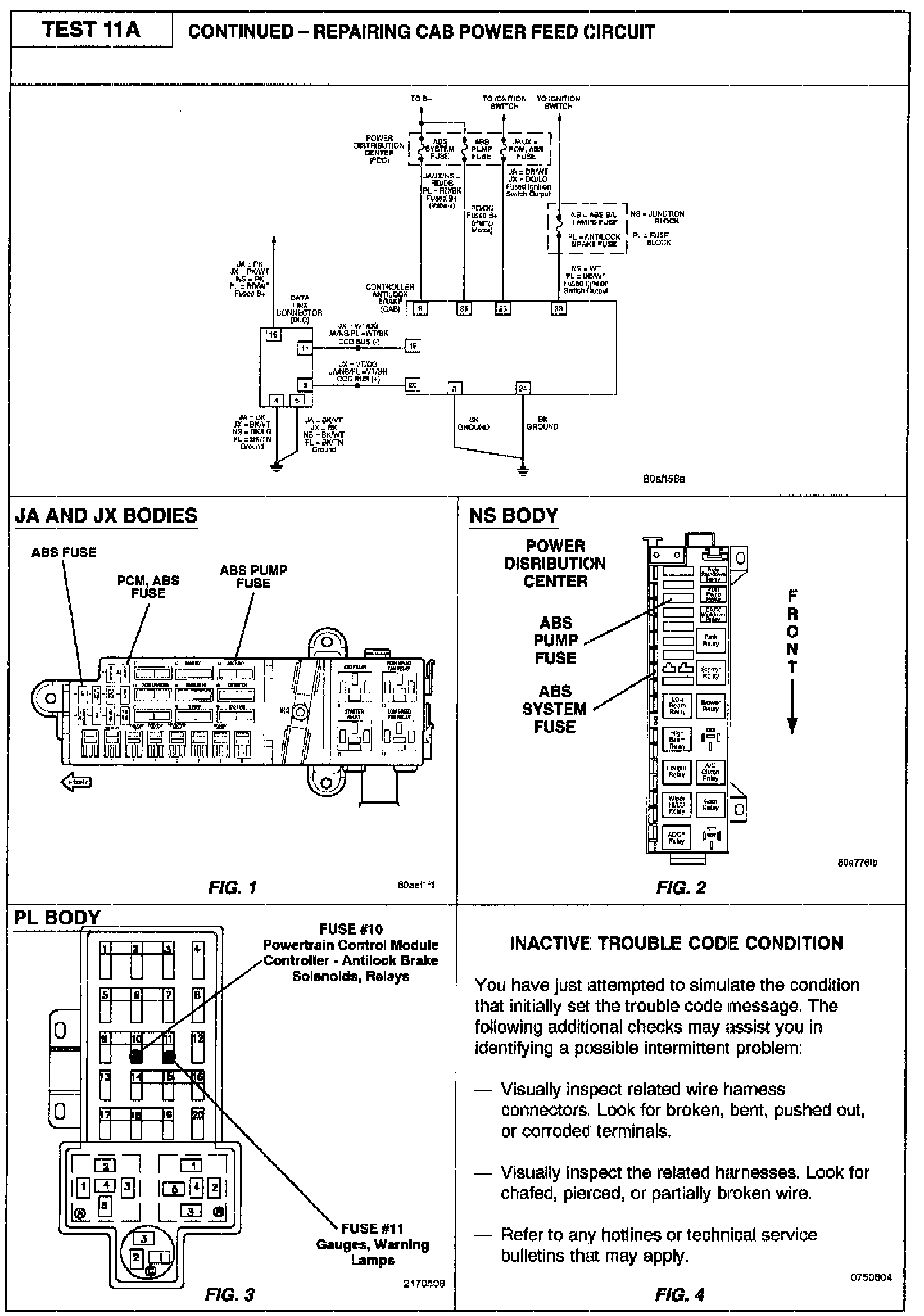

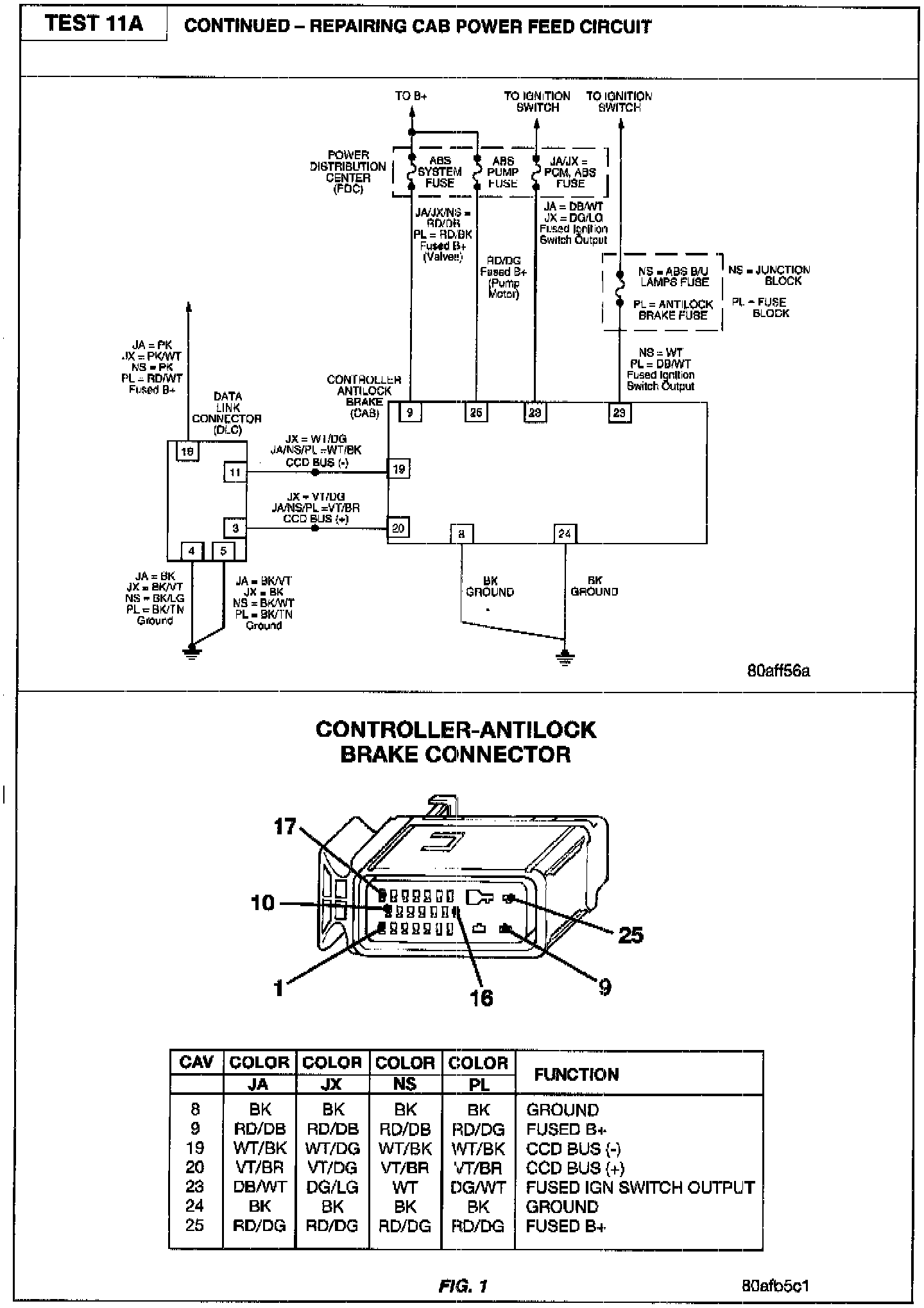

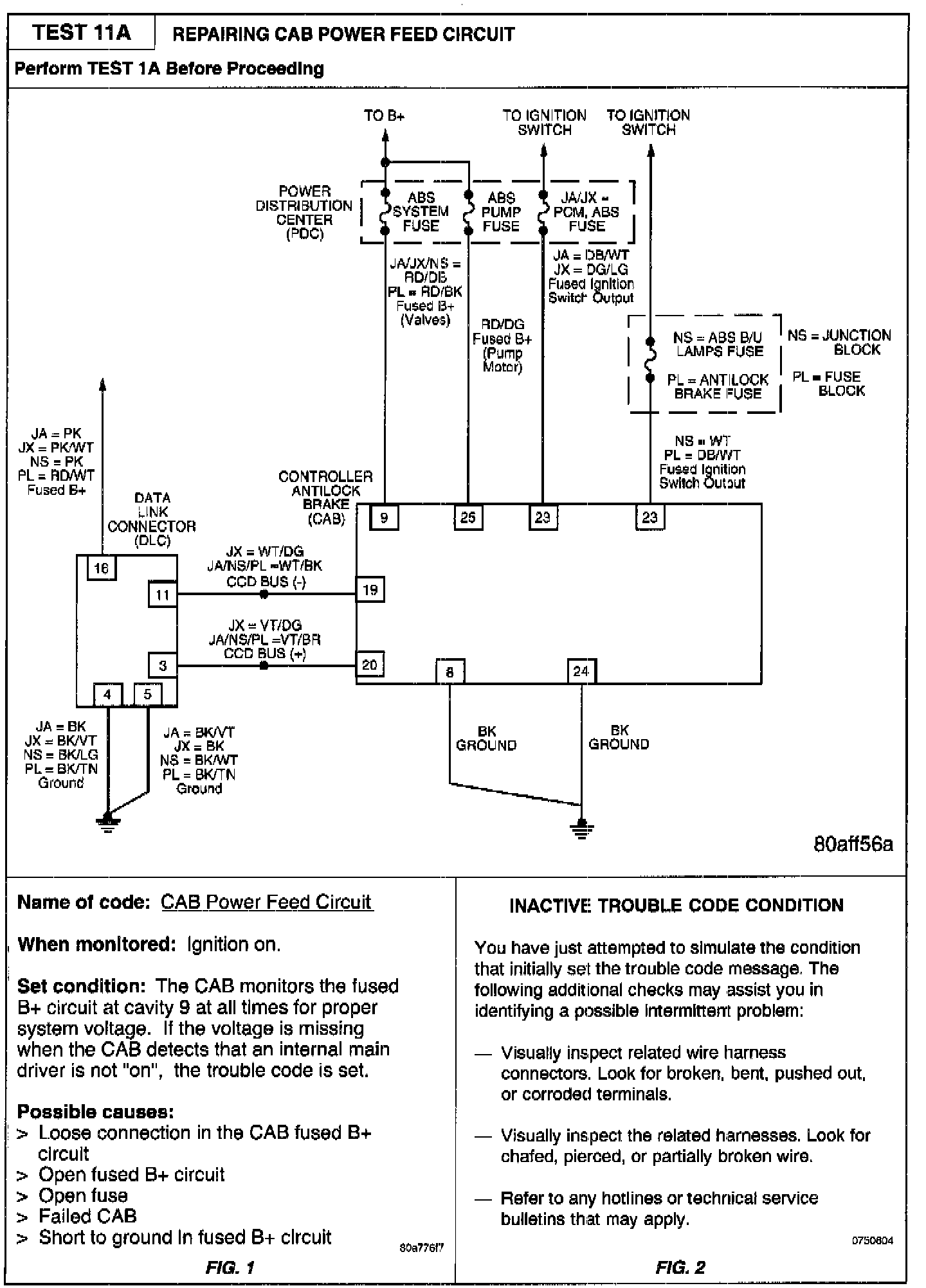

Related Figures:

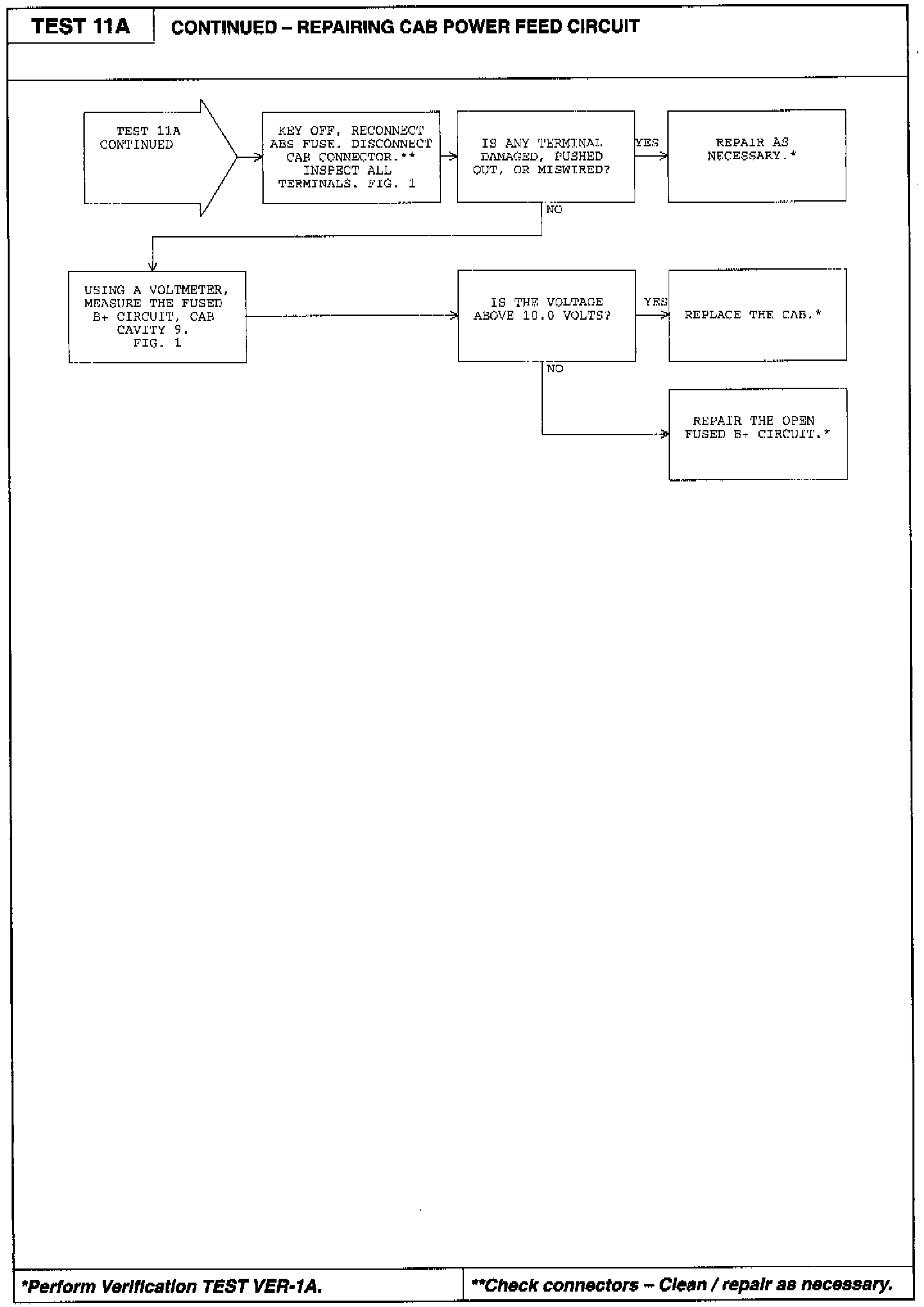

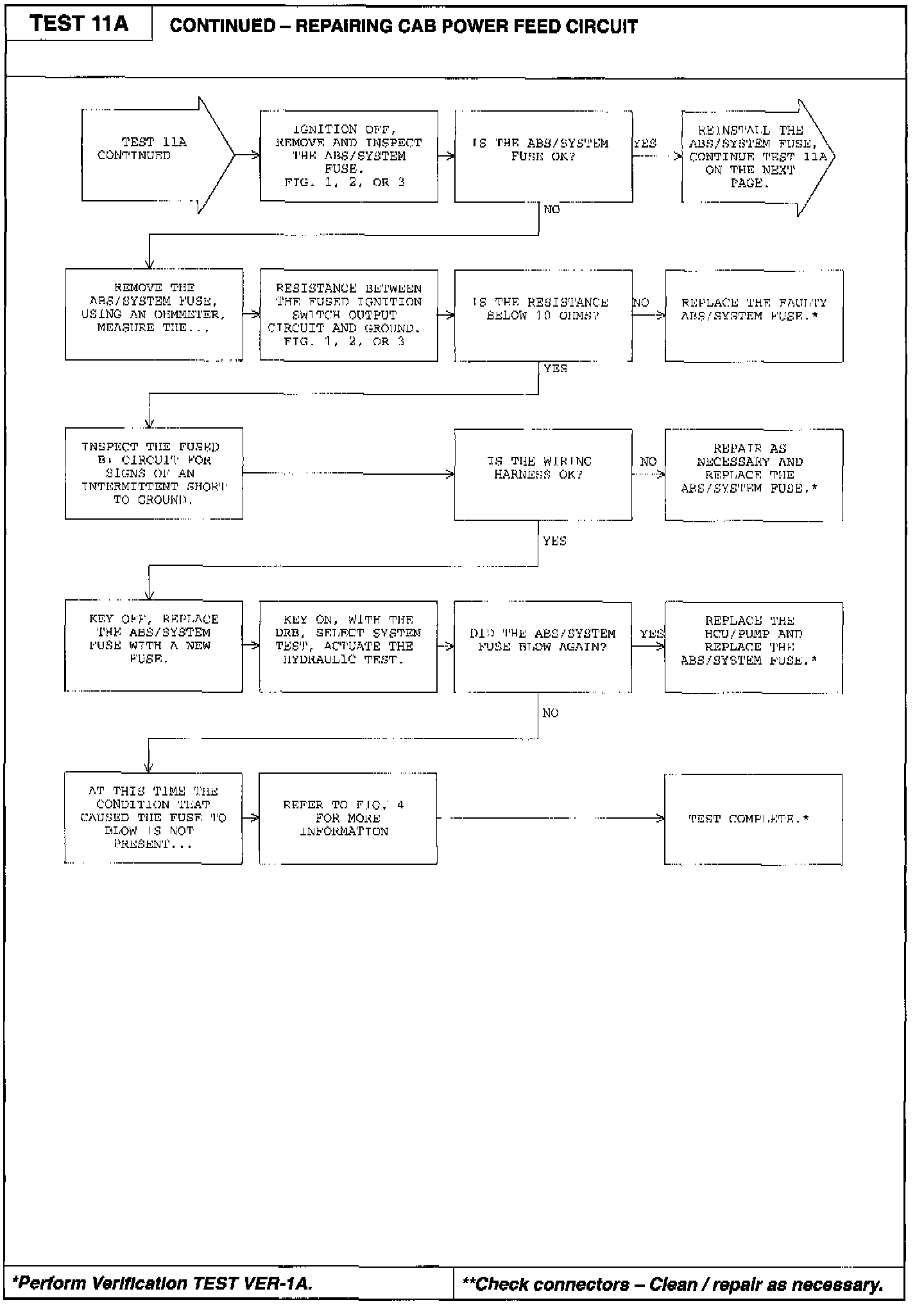

Diagnostic Chart:
Related Figures:
Diagnostic Chart:
Related Figures:
Diagnostic Chart:
