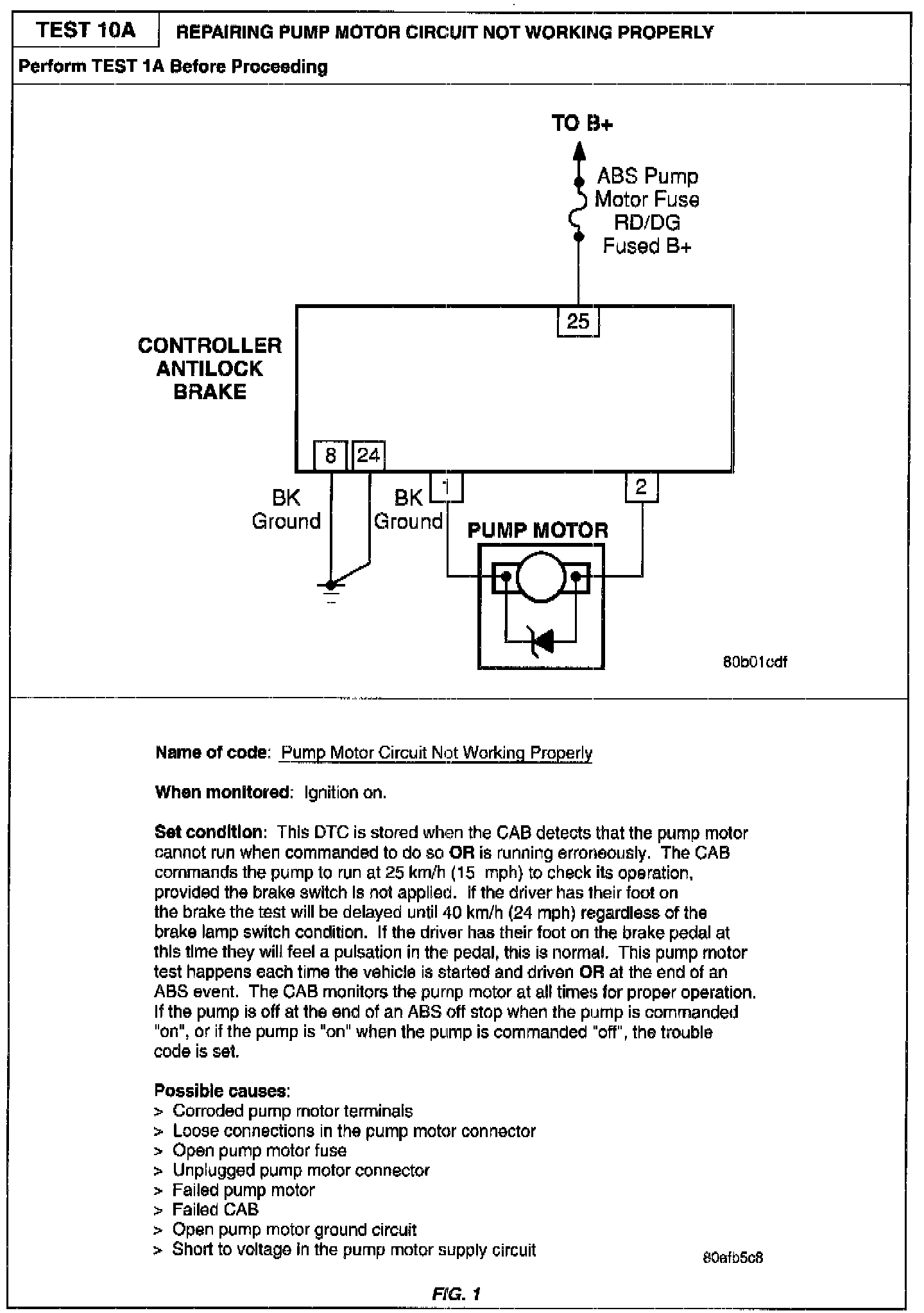

Test 10A - Pump Motor Circuit Not Working Properly
Test 10A - Pump Motor Circuit Not Working Properly
Related Figures:

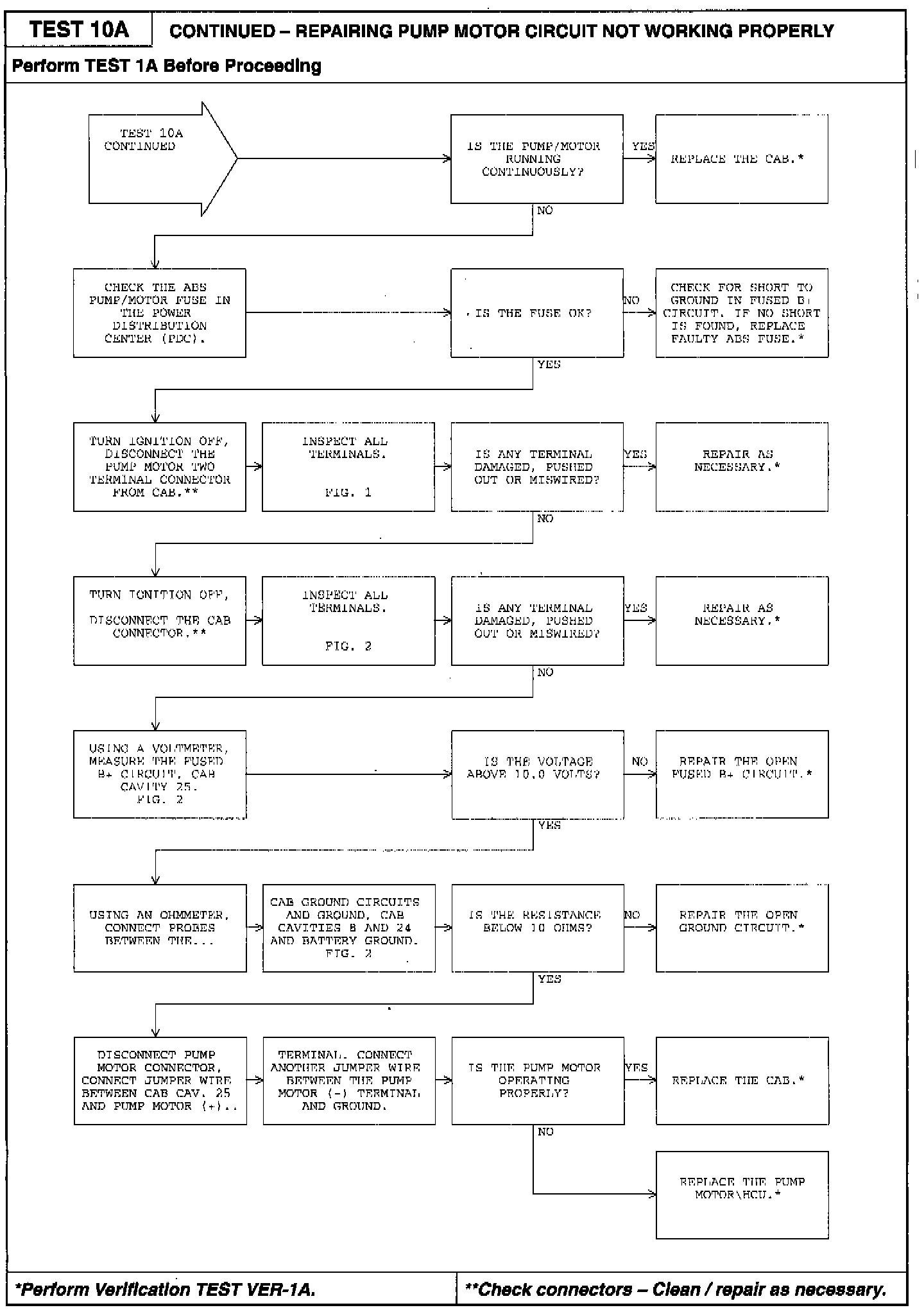

Diagnostic Chart:
Related Figures:
Diagnostic Chart:
