Washer Fluid Level Switch: Service and Repair

REMOVAL

Negative Battery Cable Remote Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Hoist vehicle.
3. Remove front fascia as necessary (left side only and use a 2x4 to prop left edge of fascia away from body).
4. Disconnect the wire connector from the reservoir fluid level sensor.

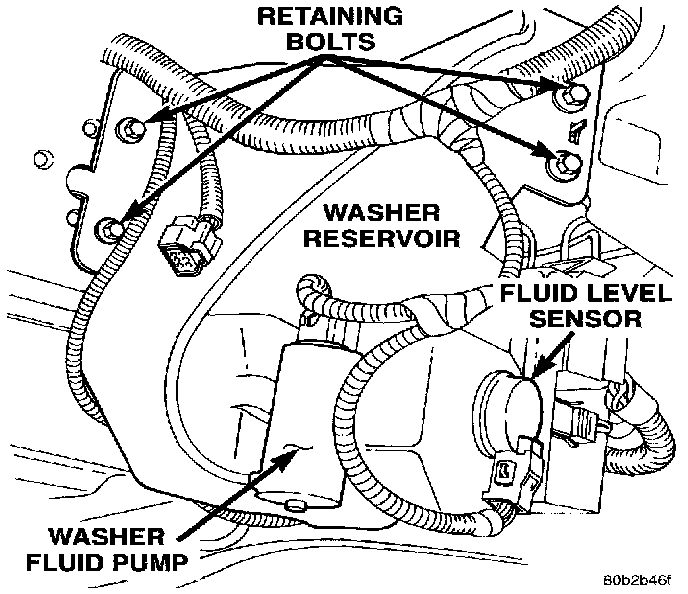

Washer Reservoir:

5. Gently pry sensor away from reservoir and out of grommet. Care must be taken not to puncture reservoir.
6. Remover rubber grommet from reservoir and throw away.

INSTALLATION
- For installation, reverse the above procedures.

NOTE: Use a new mounting grommet when installing a new sensor assembly.

- Assure "flat" of sensor is aligned under the "ridge" of reservoir and that sensor connector is facing down in the fully seated position.
