Combination Switch: Service and Repair

REMOVAL

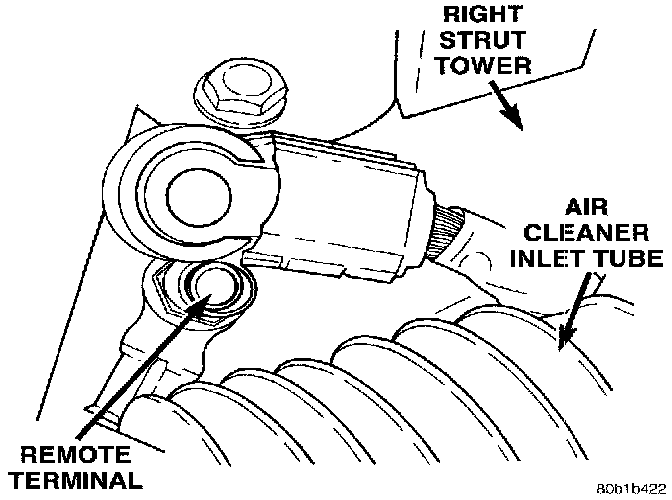

Negative Battery Cable Remote Terminal:

1. Open hood and disconnect the negative battery cable remote terminal from the remote battery post.
2. Remove tilt lever.
3. Remove both upper and lower steering column shrouds.

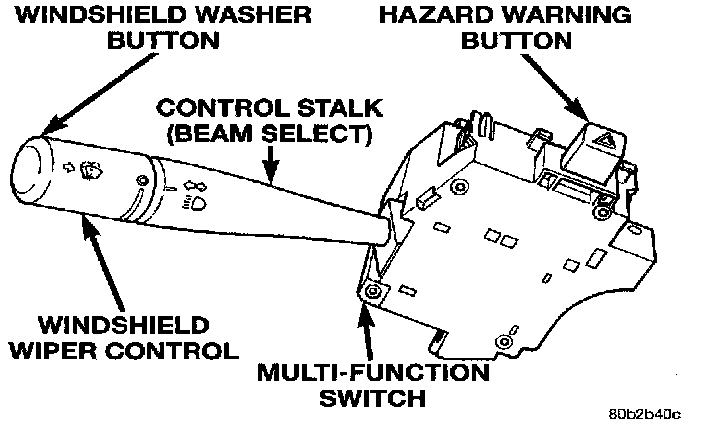

Multi - Function Switch:

4. Remove multi-function switch mounting screws and connectors.

INSTALLATION
- For installation, reverse the above procedures.
1. Tighten multi-function switch retaining screws to 17 in. lbs. (2 N.m) torque.
