Ignition Coil: Diagrams

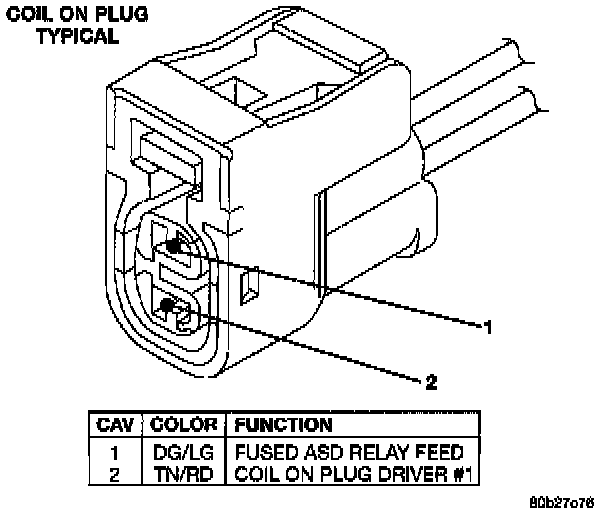

Coil On Plug Typical:
Coil On Plug Connector #2:

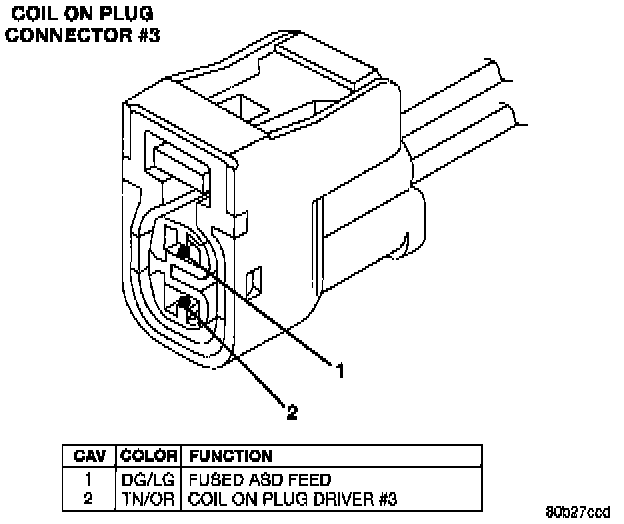

Coil On Plug Connector #3:

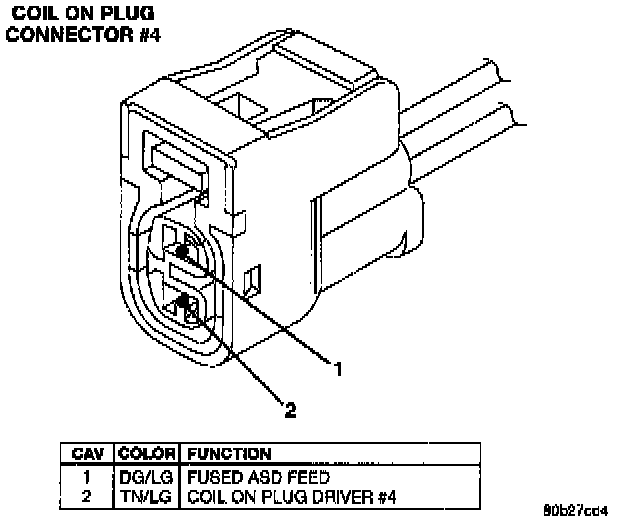

Coil On Plug Connector #4:
Coil On Plug Connector #5:

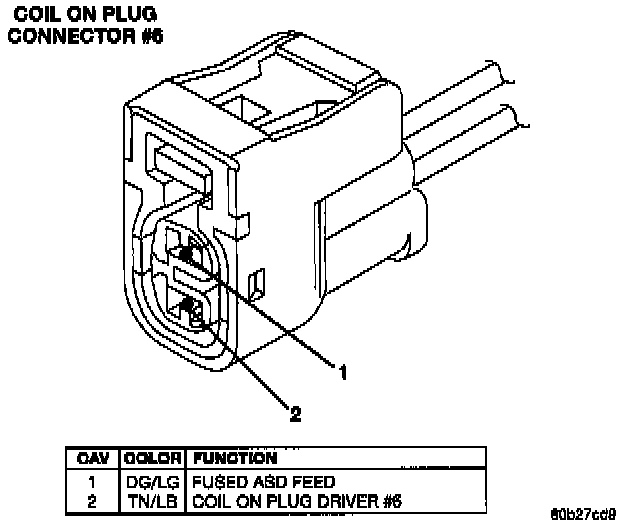

Coil On Plug Connector #6:
