Fuel Line Coupler: Description and Operation

Fig 4 Plastic Quick Connect Fittings:

QUICK-CONNECT FITTINGS
Different types of quick-connect fittings are used to attach various fuel system components. These are: a single-tab type, a two-tab type or a plastic retainer ring type. Some are equipped with safety latch clips. Refer to Service and Repair for more information.

CAUTION: The interior components (0-rings, spacers) of quick-connect fitting are not serviced separately. Do not attempt to repair damaged fittings or fuel lines/tubes. If repair is necessary, replace the complete fuel tube assembly.

Fuel tubes connect fuel system components with plastic quick-connect fuel fittings. The fitting contains non-serviceable 0-ring seals (Fig. 5).

CAUTION: Quick-connect fittings are not serviced separately. Do not attempt to repair damaged quick-connect fittings or fuel tubes. Replace the complete fuel tube/quick-connect fitting assembly.

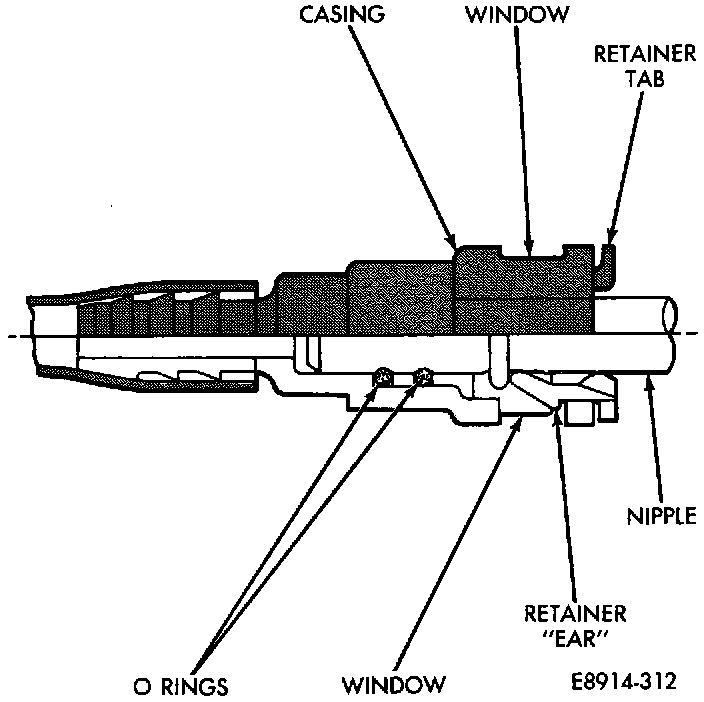

The quick-connect fitting consists of the 0-rings, retainer and casing (Fig. 5). When the fuel tube enters the fitting, the retainer locks the shoulder of the nipple in place and the 0-rings seal the tube.
