Air Temperature Sensor ( Ambient / Intake ): Locations

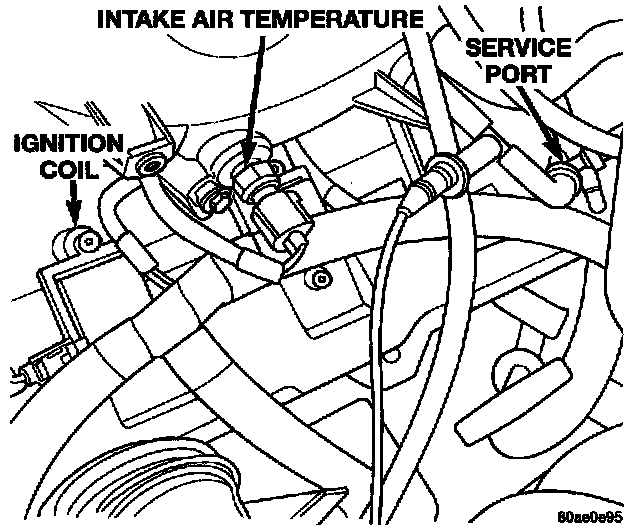

Intake Air Temperature, Service Port, Ignition Coil:

INTAKE AIR TEMPERATURE SENSOR
The Intake Air Temperature (IAT) sensor measures the temperature of the air as it enters the engine. The sensor supplies one of the inputs the PCM uses to determine injector pulse-width.

The IAT sensor threads into the intake manifold.
