Wiring Diagrams

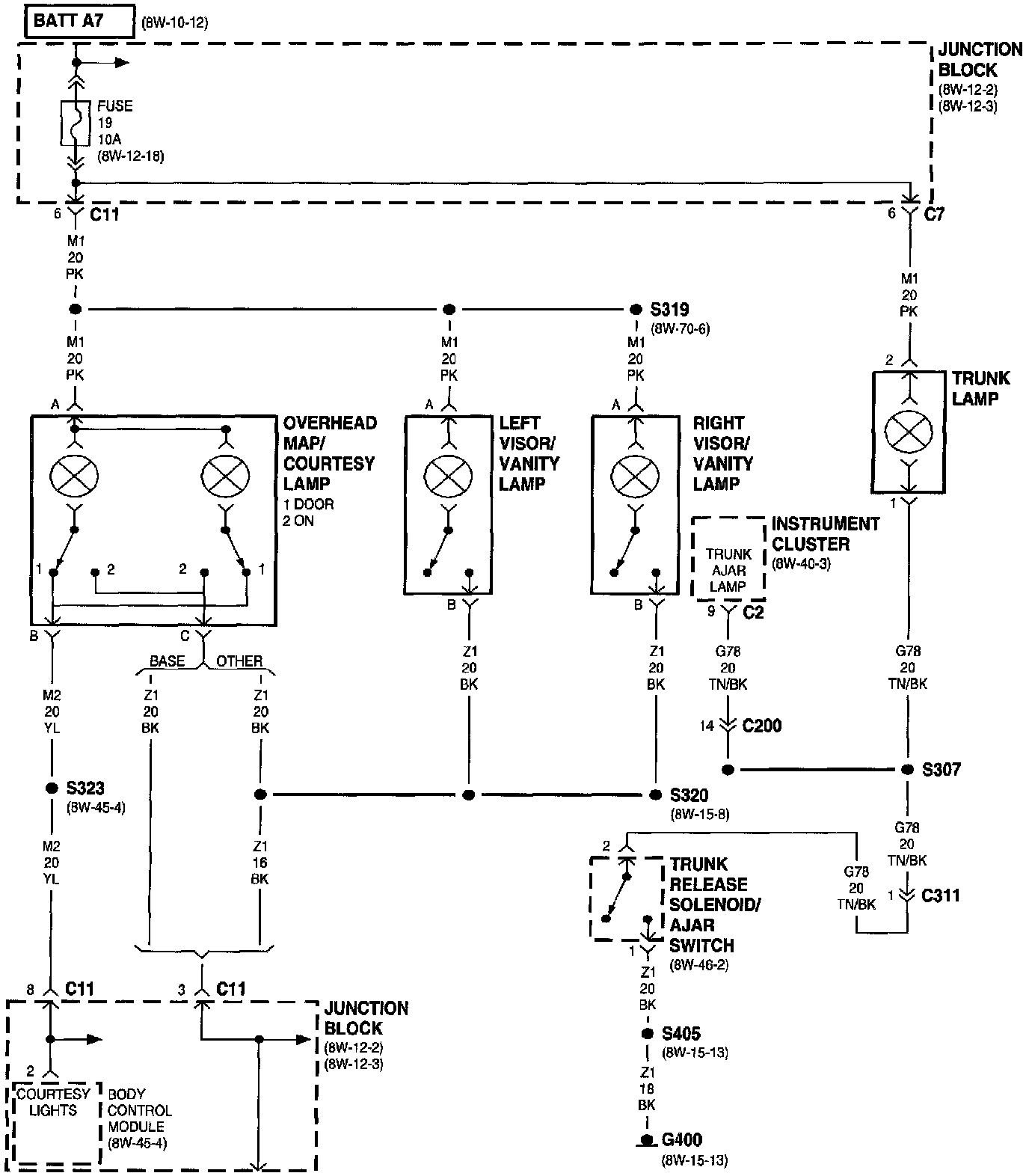

Interior Lighting (Part 1 Of 6):

Body Control Module
Fuse 19 (JB)
G400
Instrument Cluster
Junction Block
Left Visor/Vanity Lamp
Overhead Map/Courtesy Lamp
Right Visor/Vanity Lamp
Trunk Lamp
Trunk Release Solenoid/Ajar Switch

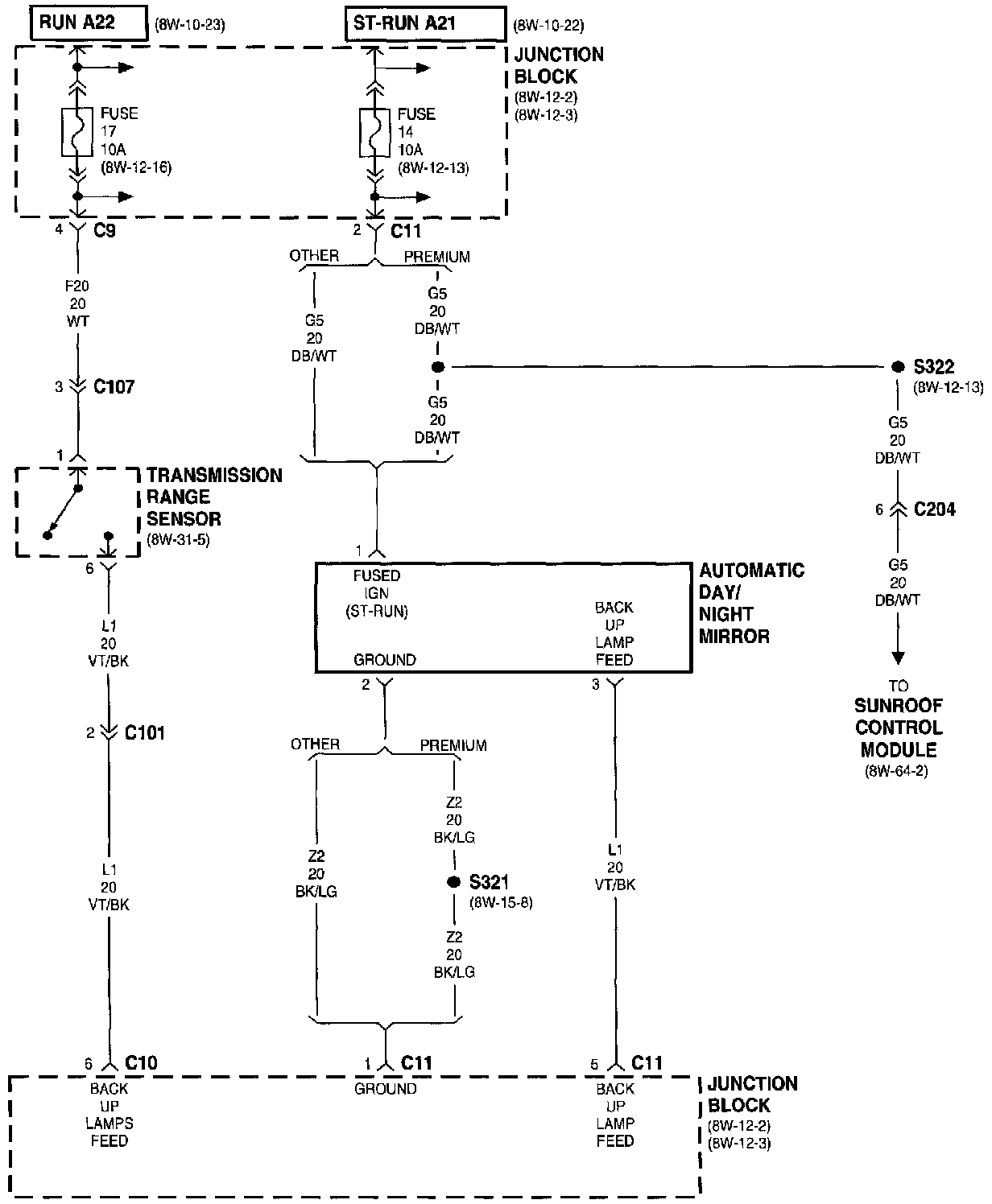

Interior Lighting (Part 2 Of 6):

Automatic Day/Night Mirror
Fuse 14 (JB)
Fuse 17 (JB)
Junction Block
Sunroof Control Module
Transmission Range Switch

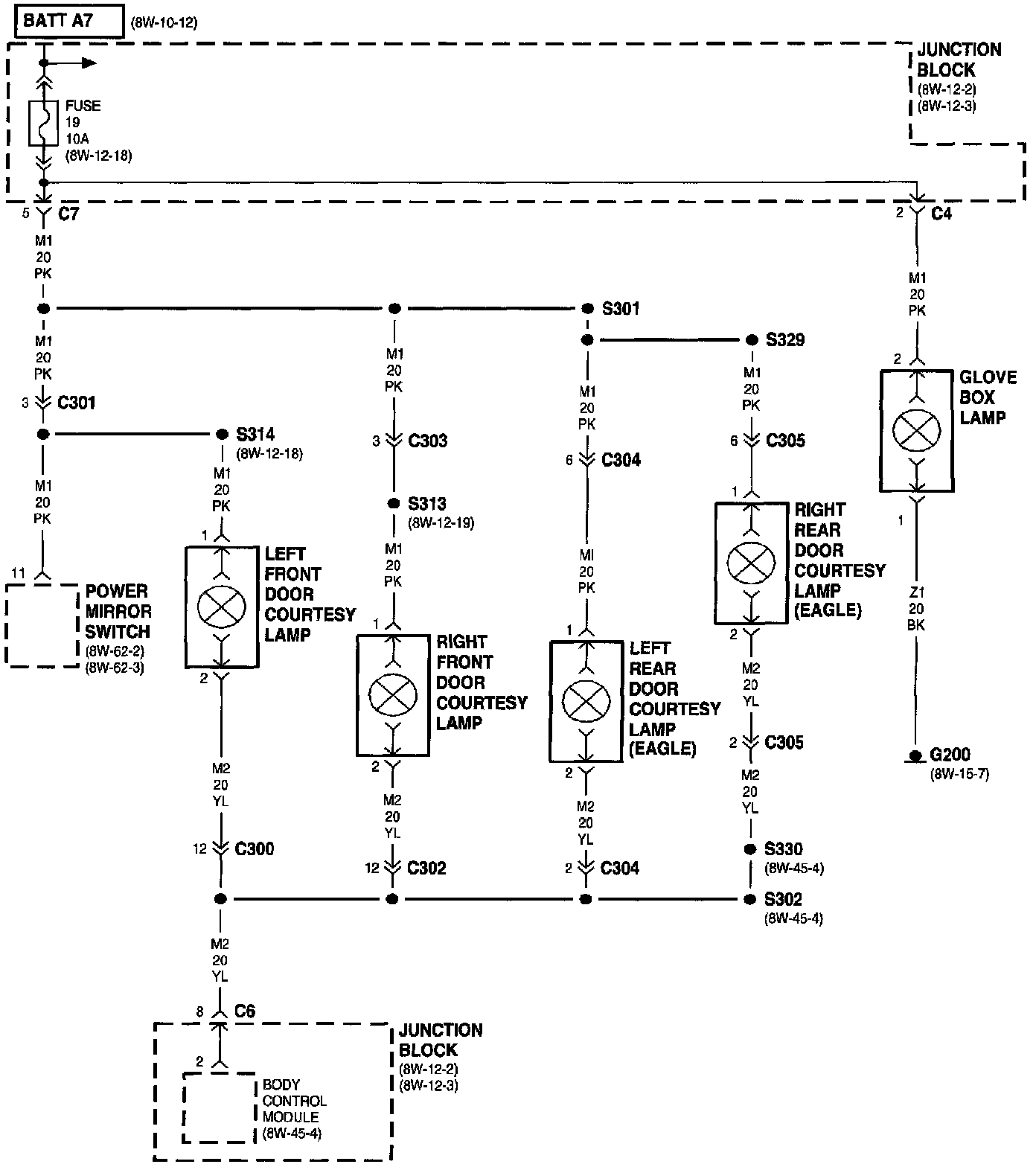

Interior Lighting (Part 3 Of 6):

Body Control Module
Fuse 19 (JB)
G200
Glove Box Lamp
Junction Block
Left Front Door Courtesy Lamp
Left Rear Door Courtesy Lamp
Power Mirror Switch
Right Front Door Courtesy Lamp
Right Rear Door Courtesy Lamp

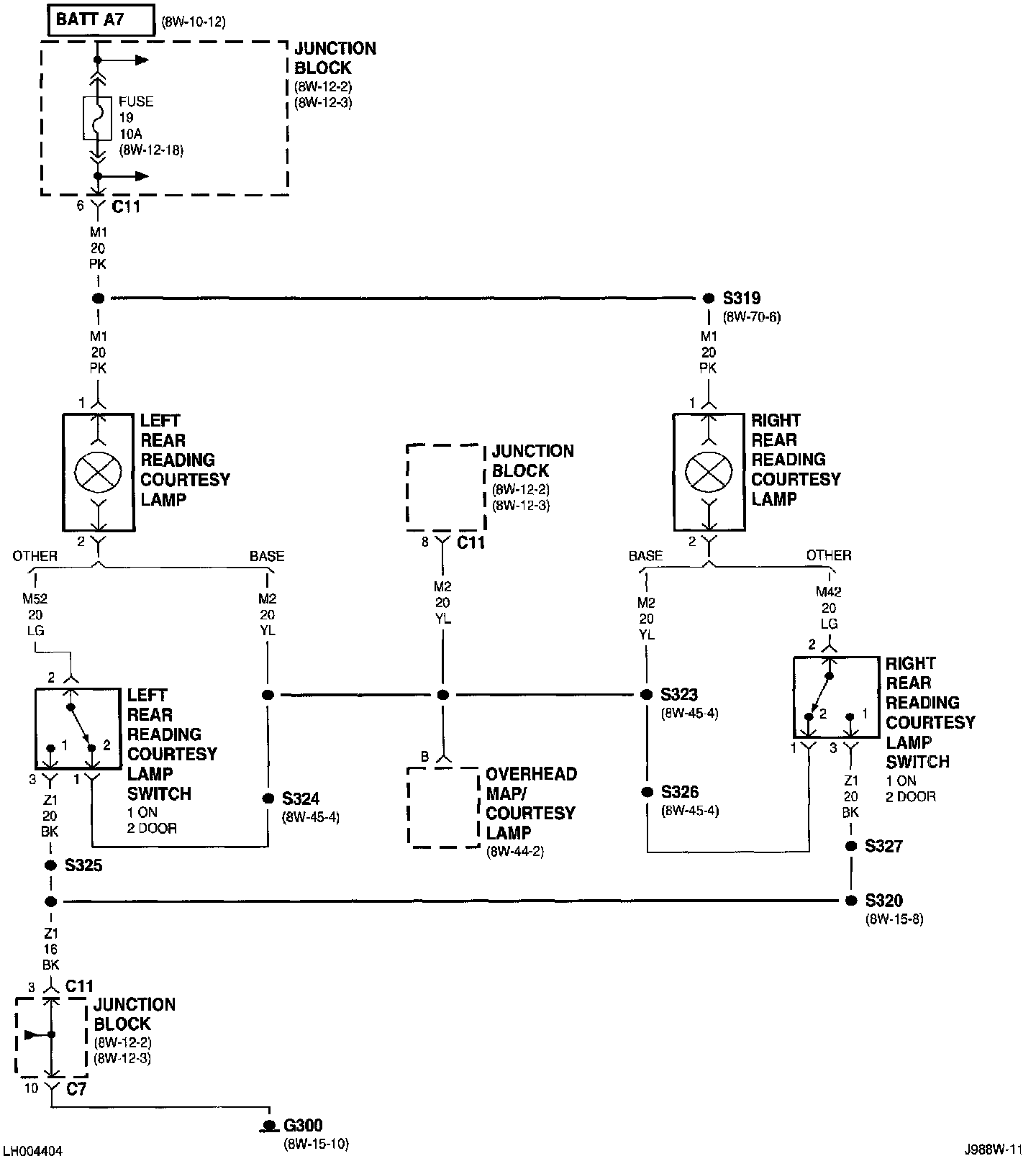

Interior Lighting (Part 4 Of 6):

Fuse 19 (JB)
G300
Junction Block
Left Rear Reading Courtesy Lamp
Left Rear Reading Courtesy Lamp Switch
Overhead Map/Courtesy Lamp
Right Rear Reading Courtesy Lamp
Right Rear Reading Courtesy Lamp Switch

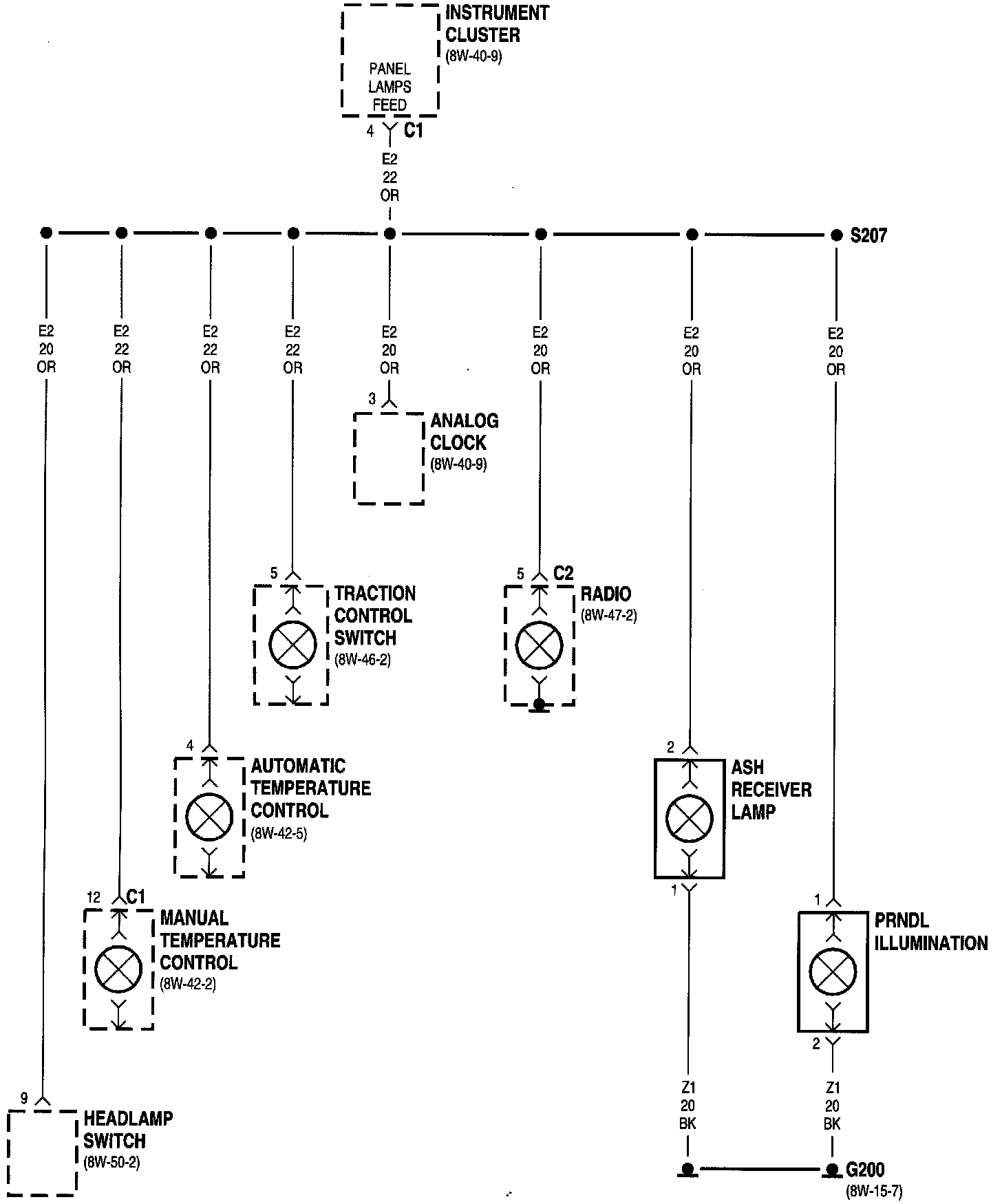

Interior Lighting (Part 5 Of 6):

Analog Clock
Ash Receiver Lamp
Automatic Temperature Control
G200
Headlamp Switch
Instrument Cluster
Manual Temperature Control
PRNDL Illumination
Radio
Traction Control Switch

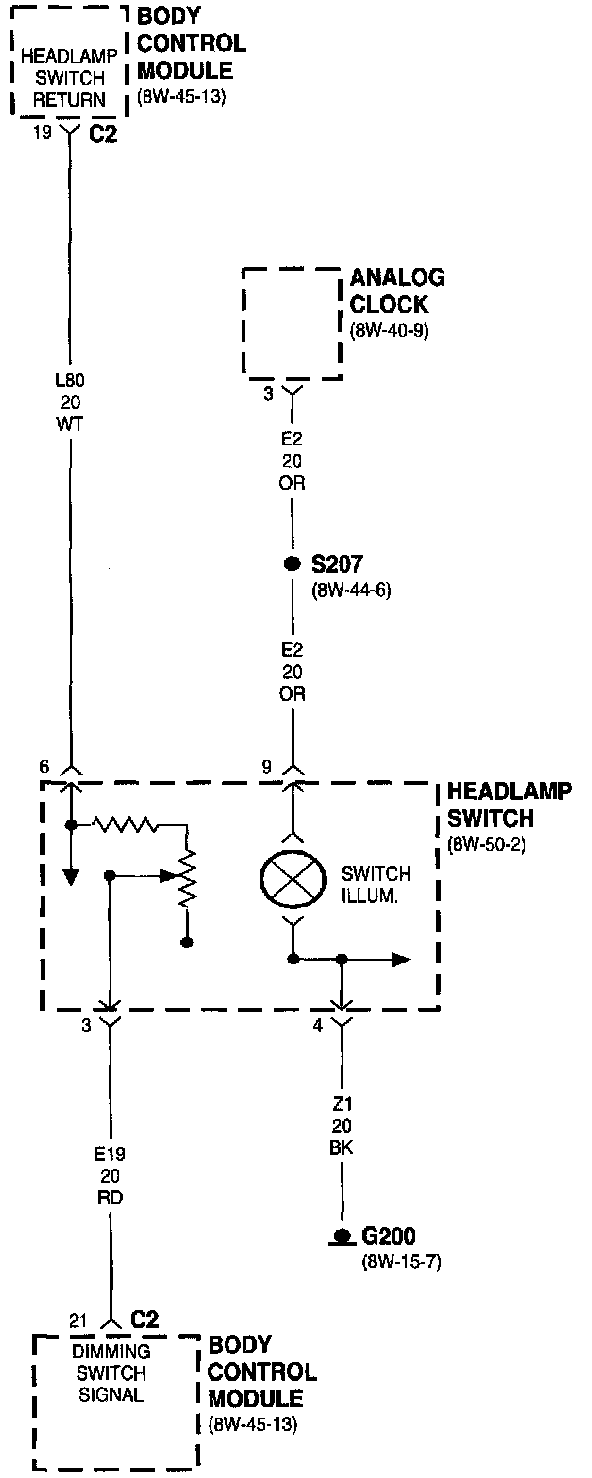

Interior Lighting (Part 6 Of 6):

Analog Clock
Body Control Module
G200
Headlamp Switch


NOTE: To view Diagrams referred to in these diagrams SEE Complete Body and Chassis Diagrams.
