Cluster Lamp

REMOVAL AND INSTALLATION
To service instrument cluster lamps, the cluster must be removed from the instrument panel. For removal and installation procedures of the instrument cluster and bezel refer to the procedures.

Cluster Lamps - Interpid:

Cluster Lamps - Concorde:

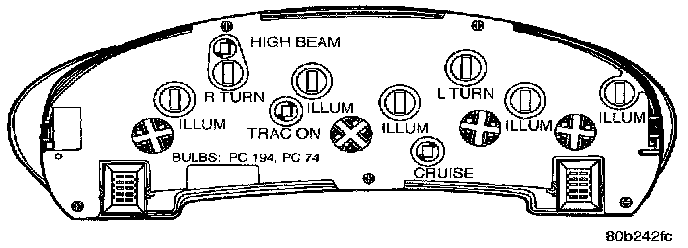

Refer for cluster lamp locations.

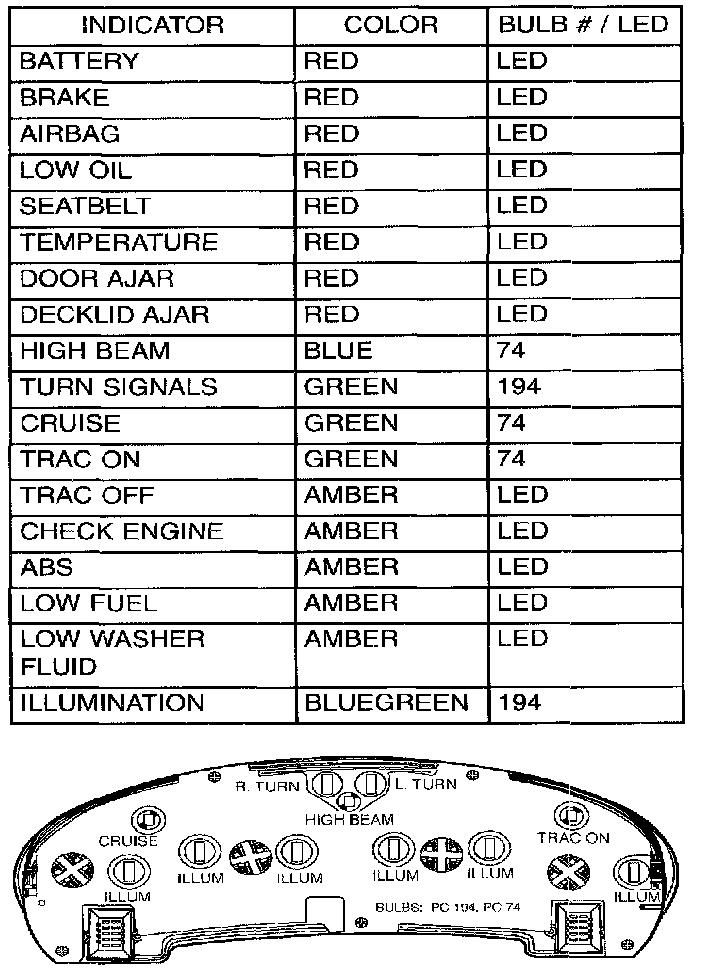

The lamps that are replaceable are called out on the back cover of the instrument cluster. All other indicators are Light Emitting Diodes (LED's), and are serviced with the printed circuit (PC) board. If a LED is non-functional, the entire PC board must Be replaced. Refer to the Lighting and Horns/INDICATORS - BULBS table for applications.
