Exhaust System: Service and Repair

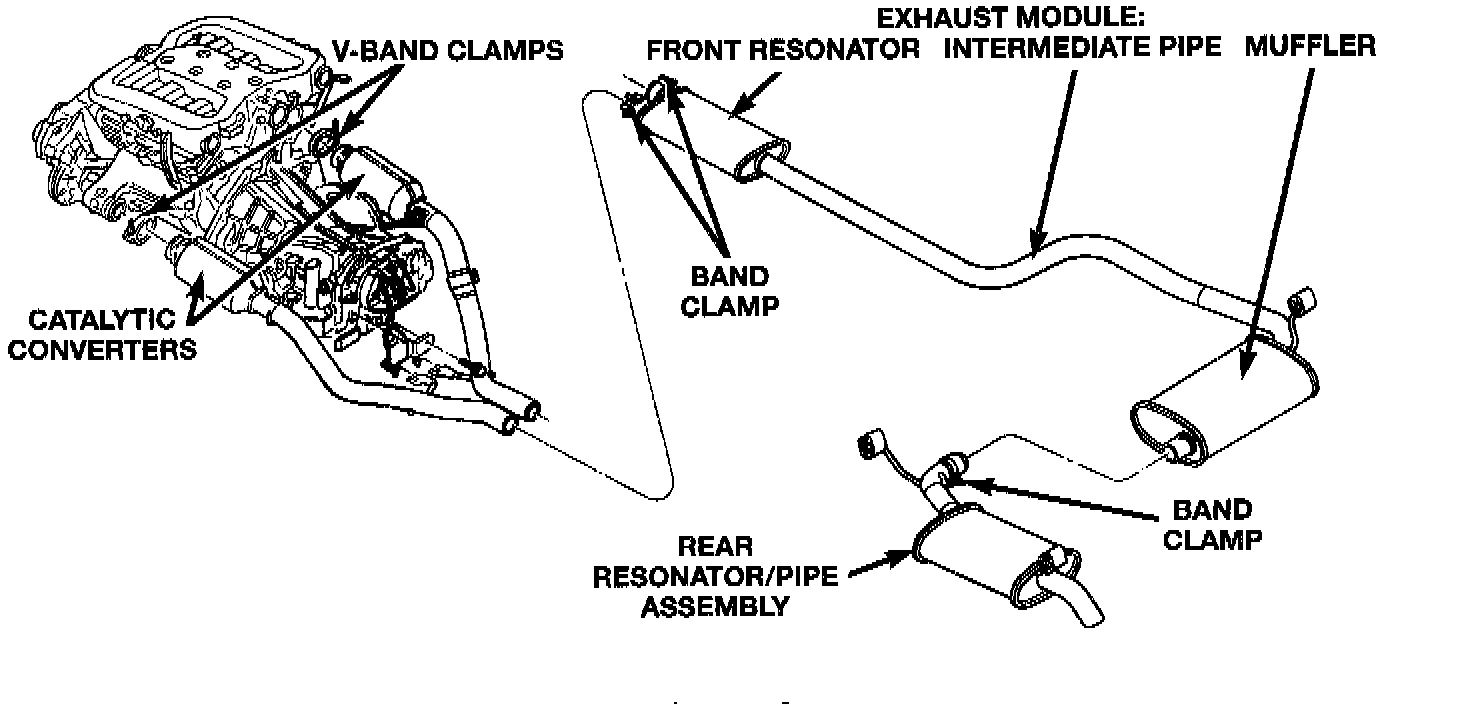

Figure 2-Exhaust System Components:

REMOVAL
It is easier to service the exhaust system module components, when system is removed from the vehicle.
1. Raise vehicle on hoist.
2. Apply penetrating oil and loosen band clamps at resonator connector.
3. Separate exhaust module at front resonator from the converter downpipe.

CAUTION: At this time, the exhaust system is held by only isolators. Support the exhaust system underneath the front resonator and the muffler while the isolators are being removed. Do not use any tools to remove the isolators, remove by hand only. Soapy water or silicone-based spray may be used to assist removal. Do Not use a petroleum based lubricant on the isolators. This will damage the rubber material.

4. Support exhaust system with jack stand.

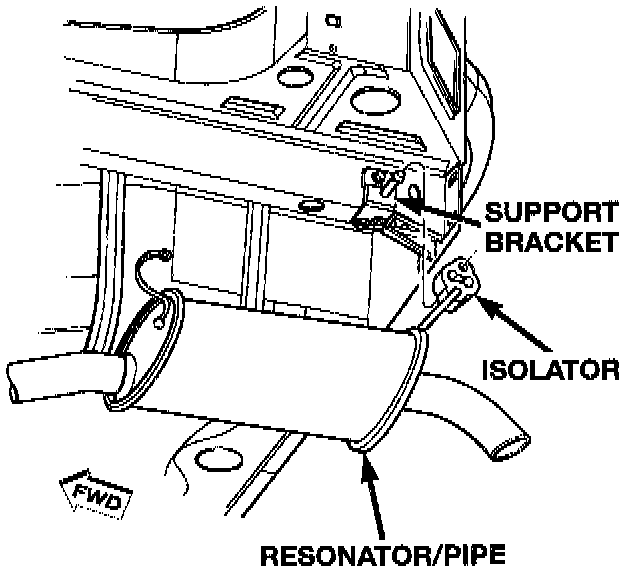

Figure 3-Rubber Isolator Hanger To Body Support Bracket:

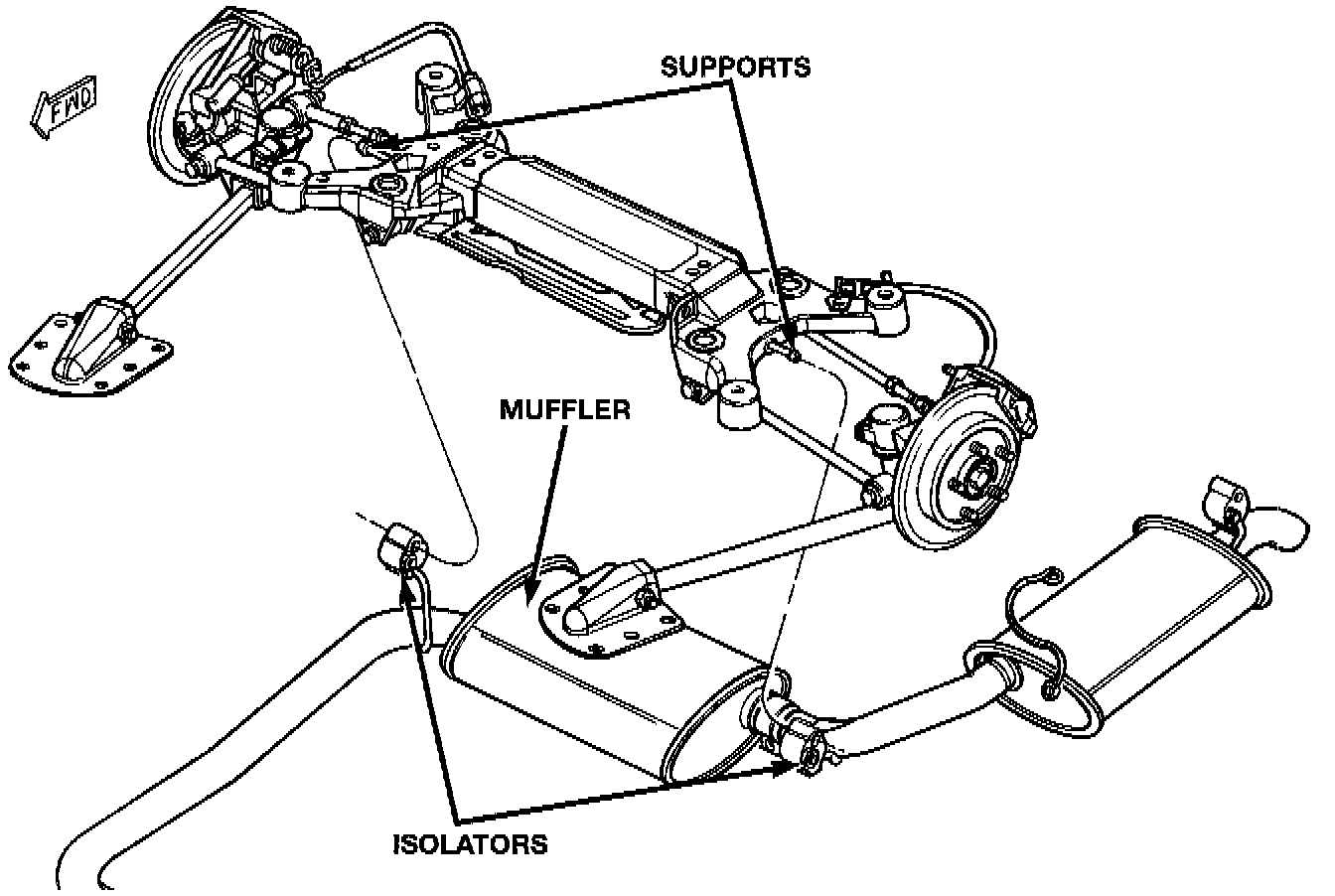

Figure 4-Exhaust Module Supports:

5. Remove the rubber isolators from the rear suspension crossmember and support brackets on body.
6. Lower exhaust system and lay on the ground.

NOTE: When replacement is required on any component of the exhaust system, it is most important that original equipment parts be used.
- To insure proper alignment with other parts in the system.
- Provide acceptable exhaust noise levels and does not change exhaust system back pressure that could affect emissions and performance.

INSTALLATION
1. Install and loose assemble the front resonator to the converter pipes.
2. Place the exhaust system on two supports (one on side of muffler, one behind the resonator). Connect the system to the converter pipes.
3. Install the system's rubber isolators onto the support brackets.
4. Visually inspect the isolators. They should be straight when viewing from front to back of the vehicle. Working from the front of system, align each component to maintain position and proper clearance with underbody parts.
5. Tighten band clamps to the proper torque.
6. Lower the vehicle.
