General Specifications

Type 60° DOHC V-6
Displacement 2.7 Liters 2736 cc (167 Cubic Inches)
Bore 86.0 mm (3.386 inch)
Stroke 78.5 mm (3.091 inch)
Compression Ratio 9.67:1
Horsepower 200 5800 rpm
Torque 190 ft. lbs. 4850 rpm
Lead Cylinder # 1 Right Bank
Cylinder Block Aluminum With Cast-In-Place Iron Liners
Crankshaft Forged Steel
Camshaft Fabricated Tubular Camshafts
Cylinder Head Aluminum
Connecting Rod Powder Metal With Cracked Cap
Type 60° DOHC V-6
Piston. Aluminum (Floating Pin With Round Wire Lock Rings)
Lubrication Pressure Feed-Full Flow Filtration (Direct Crankshaft Driven Pump)
Cooling System Liquid Cooled-Forced Circulation

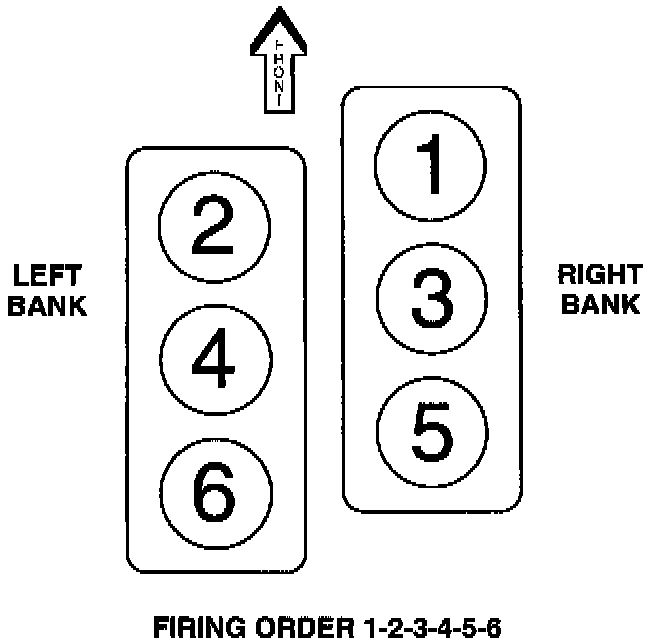

Cylinder Numbering & Firing Order:

Firing Order 1,2,3,4,5,6
