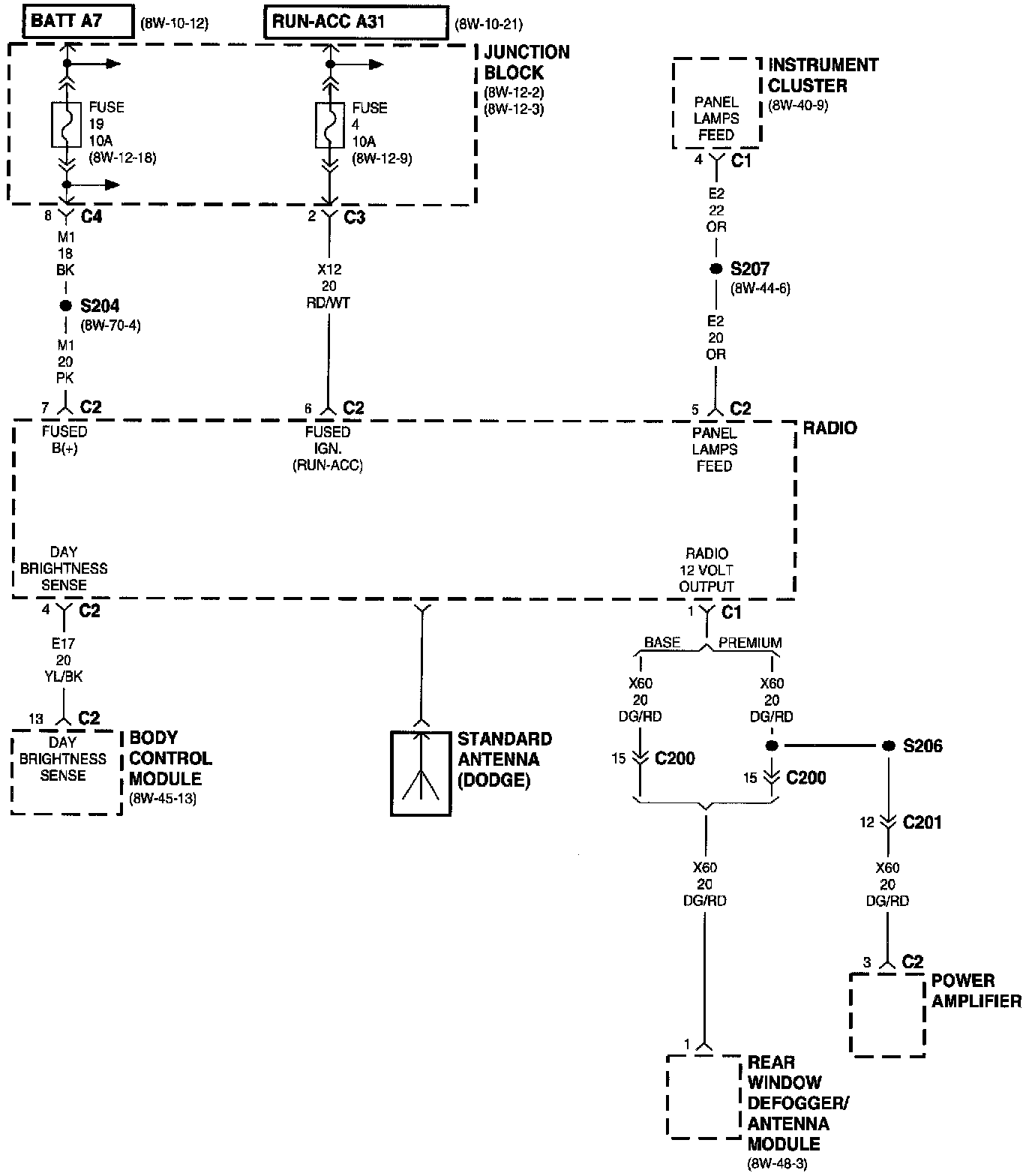

Mid-Line and Premium

Audio System:

Body Control Module
Fuse 4 (JB)
Fuse 19 (JB)
Instrument Cluster
Junction Block
Power Amplifier
Radio
Rear Window Delogger/Antenna Module
Standard Antenna

Audio System:

Body Control Module
Fuse 18 (JB)
Junction Block
Left Front Door Speaker
Power Amplifier
Radio
Right Front Door Speaker

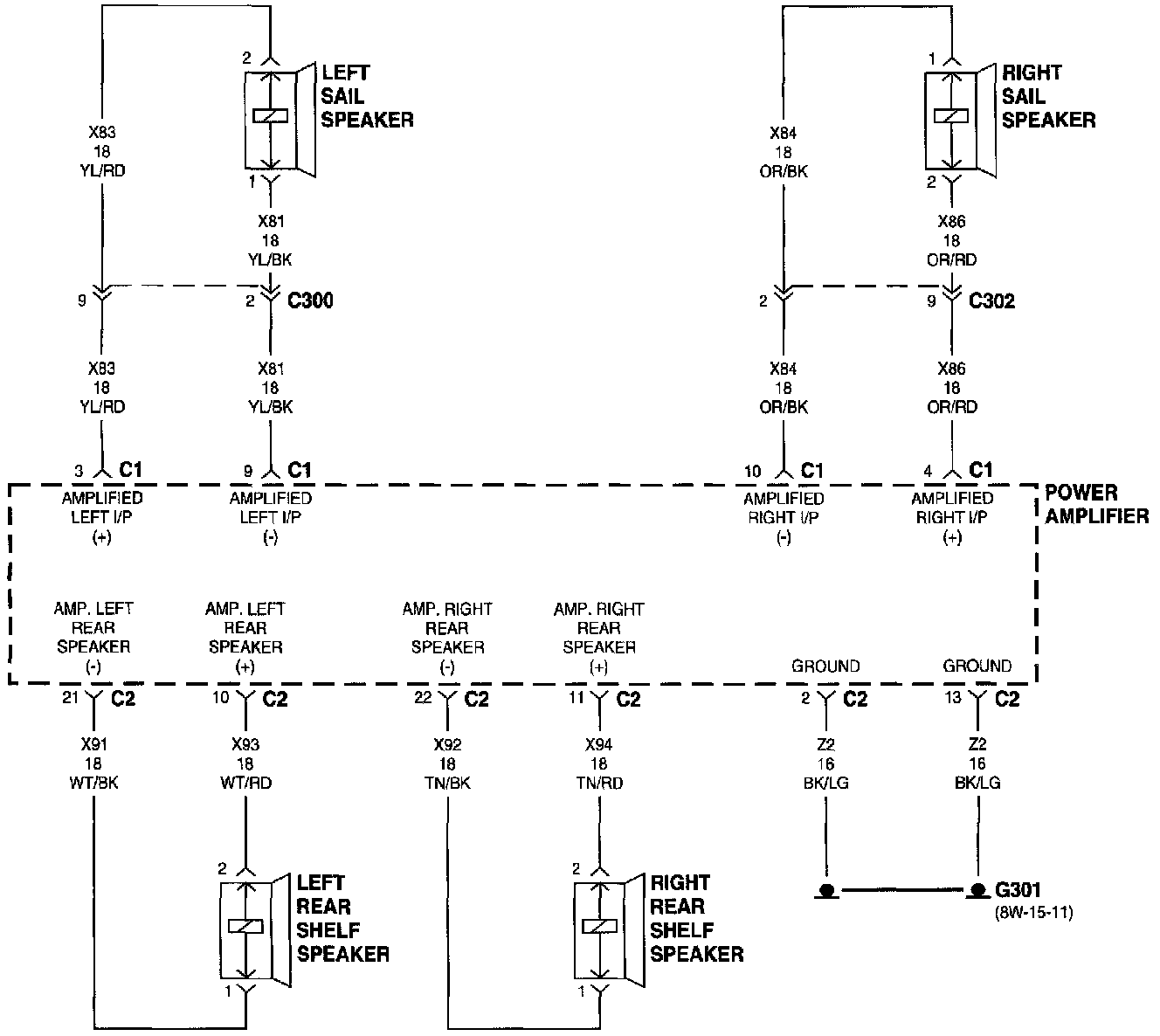

Audio System:

G301
Left Rear Shelf Speaker
Left Sail Speaker
Power Amplifier
Right Rear Shelf Speaker
Right Sail Speaker

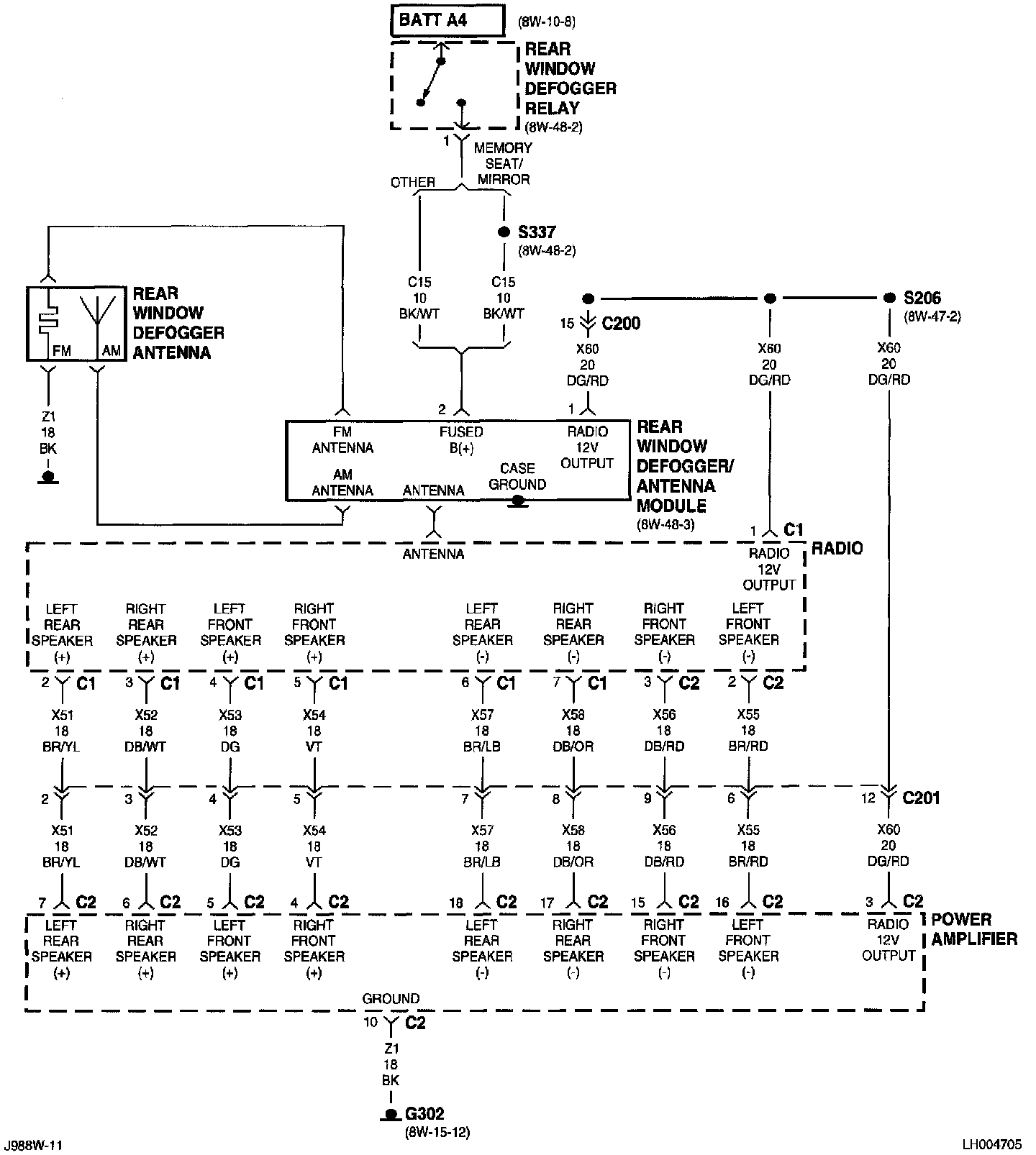

Audio System:

G302
Power Amplifier
Radio
Rear Window Defogger Antenna
Rear Window Delogger Relay
Rear Window Delogger/Antenna Module

Audio System:

Center Instrument Pane] Speaker
Left Front Door Sail Speaker
Left Front Door Speaker
Left Rear Shelf Speaker
Power Amplifier
Right Front Door Sail Speaker
Right Front Door Speaker
Right Rear Shelf Speaker


NOTE: To view Diagrams referred to in these diagrams SEE Complete Body and Chassis Diagrams. Diagrams By Group Number
