Rear Lighting

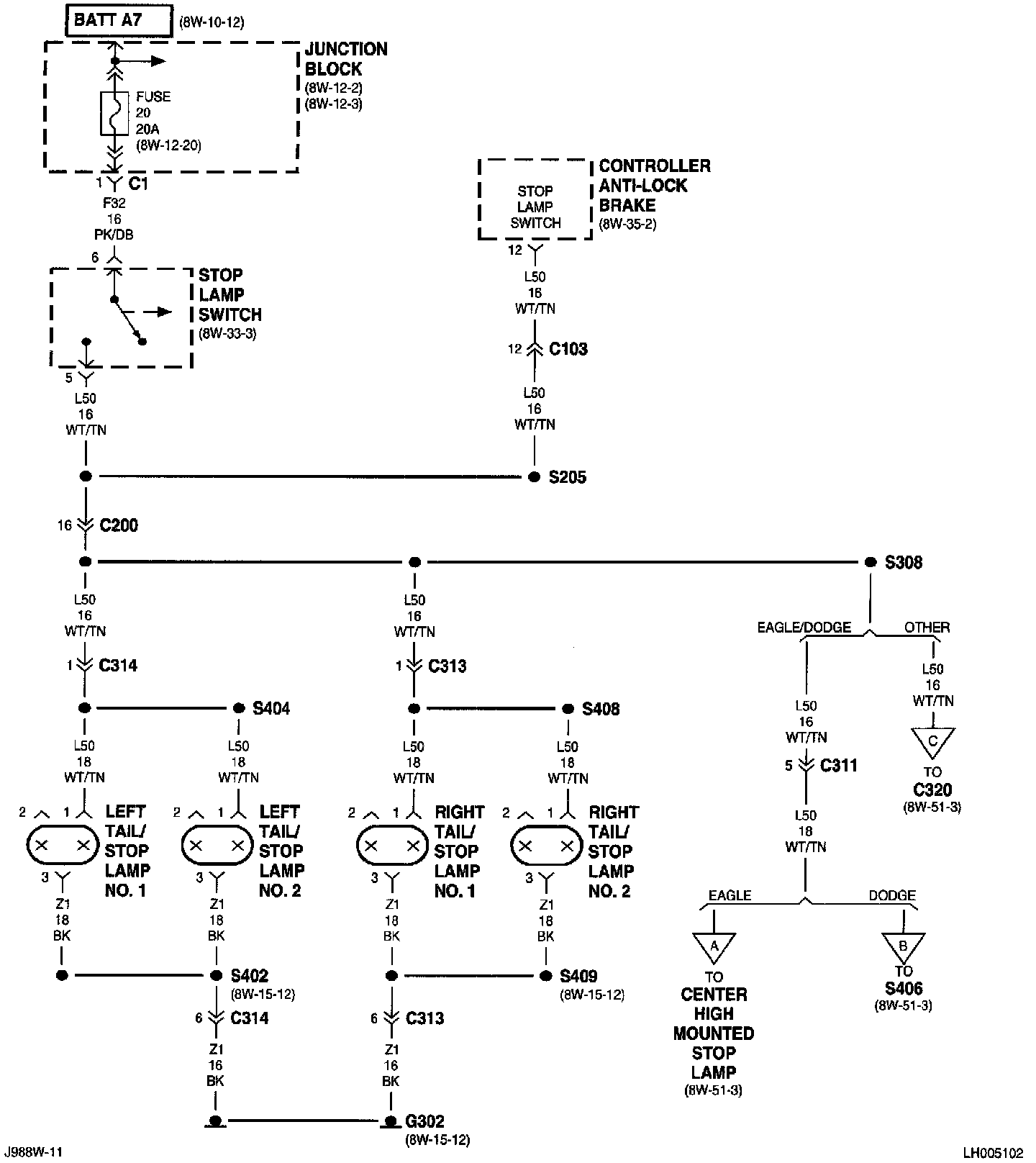

Rear Lighting:

Controller Anti-Lock Brake
Fuse 20 (JB)
G302
Junction Block
Left Tail/Stop Lamp No. 1
Left Tail/Stop Lamp No. 2
Right Tail/Stop Lamp No. 1
Right Tail/Stop Lamp No. 2
Stop Lamp Switch

Rear Lighting:

Center High Mounted Stop Lamp
Center High Mounted Stop Lamp No. 1
Center High Mounted Stop Lamp No. 2
G302
C400

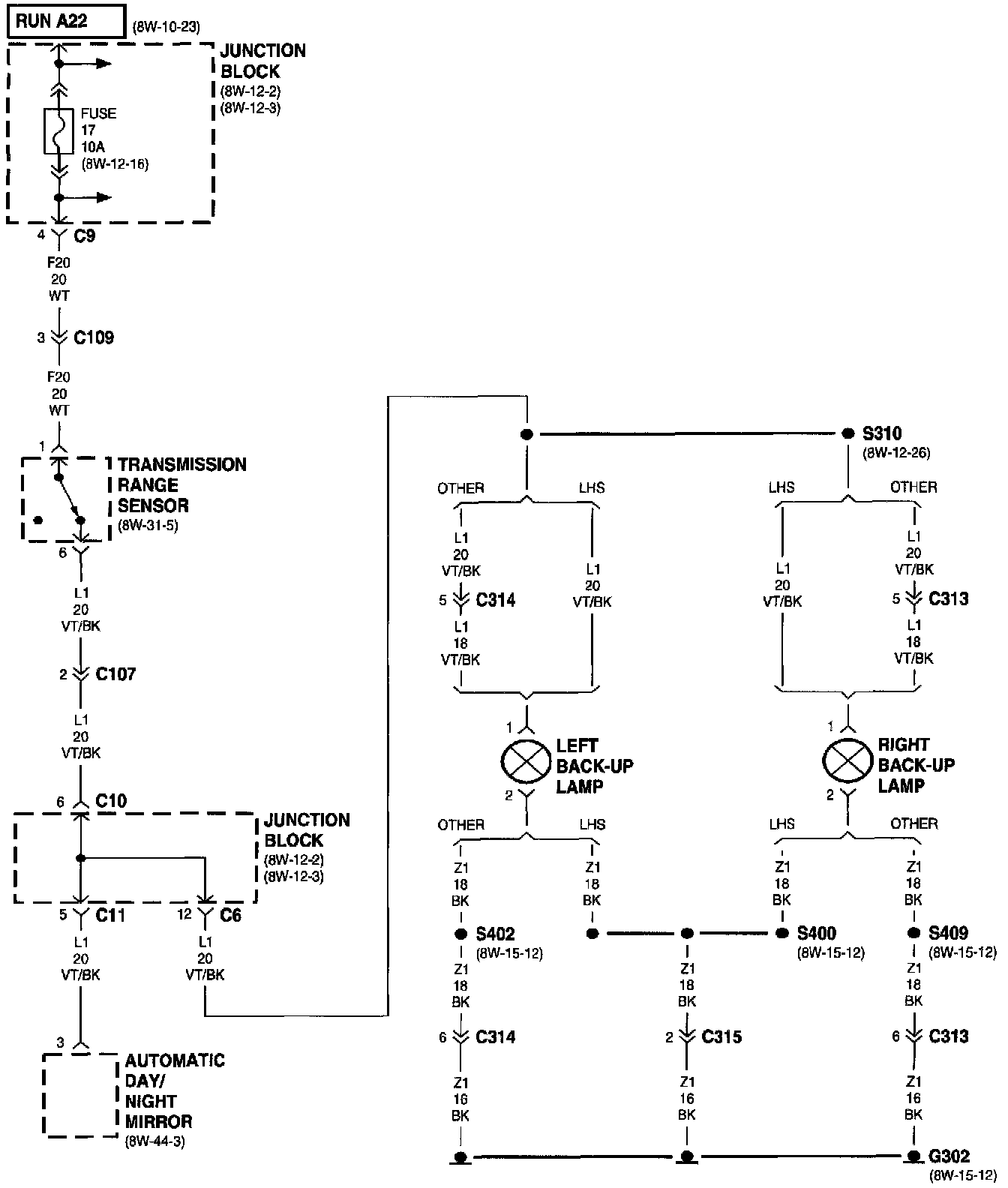

Rear Lighting:

Automatic Day/Night Mirror
Fuse 17 (JB)
G302
Junction Block
Left Back-Up Lamp
Right Back-Up Lamp
Transmission Range Switch

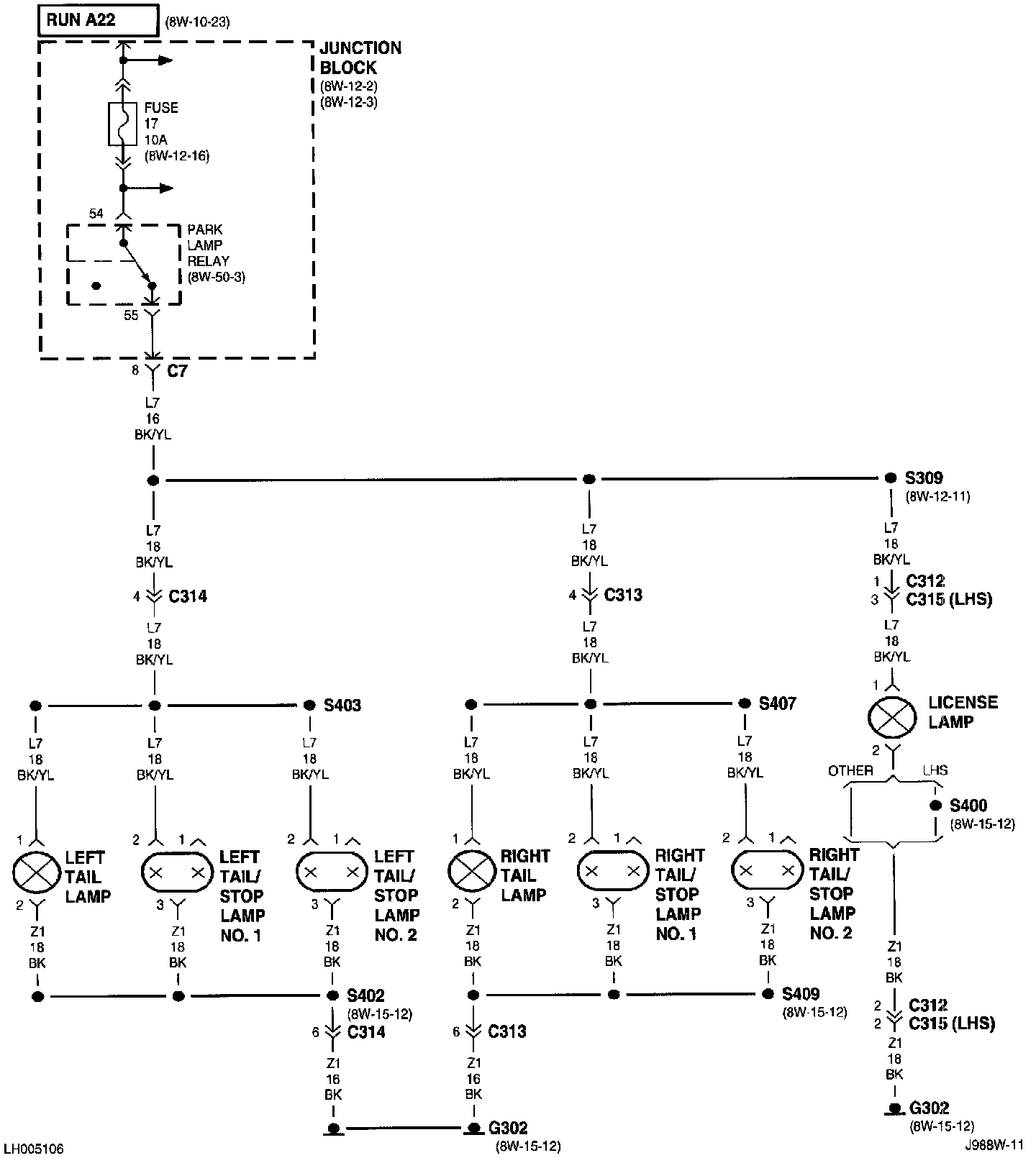

Rear Lighting:

Fuse 17 (JB)
G302
Junction Block
Left Tail Lamp
Left Tail/Stop Lamp No. 1
Left Tail/Stop Lamp No. 2
License Lamp
Park Lamp Relay
Right Tail Lamp
Right Tail/Stop Lamp No. 1
Right Tail/Stop Lamp No. 2


NOTE: To view Diagrams referred to in these diagrams SEE Complete Body and Chassis Diagrams.
