Front End Lighting

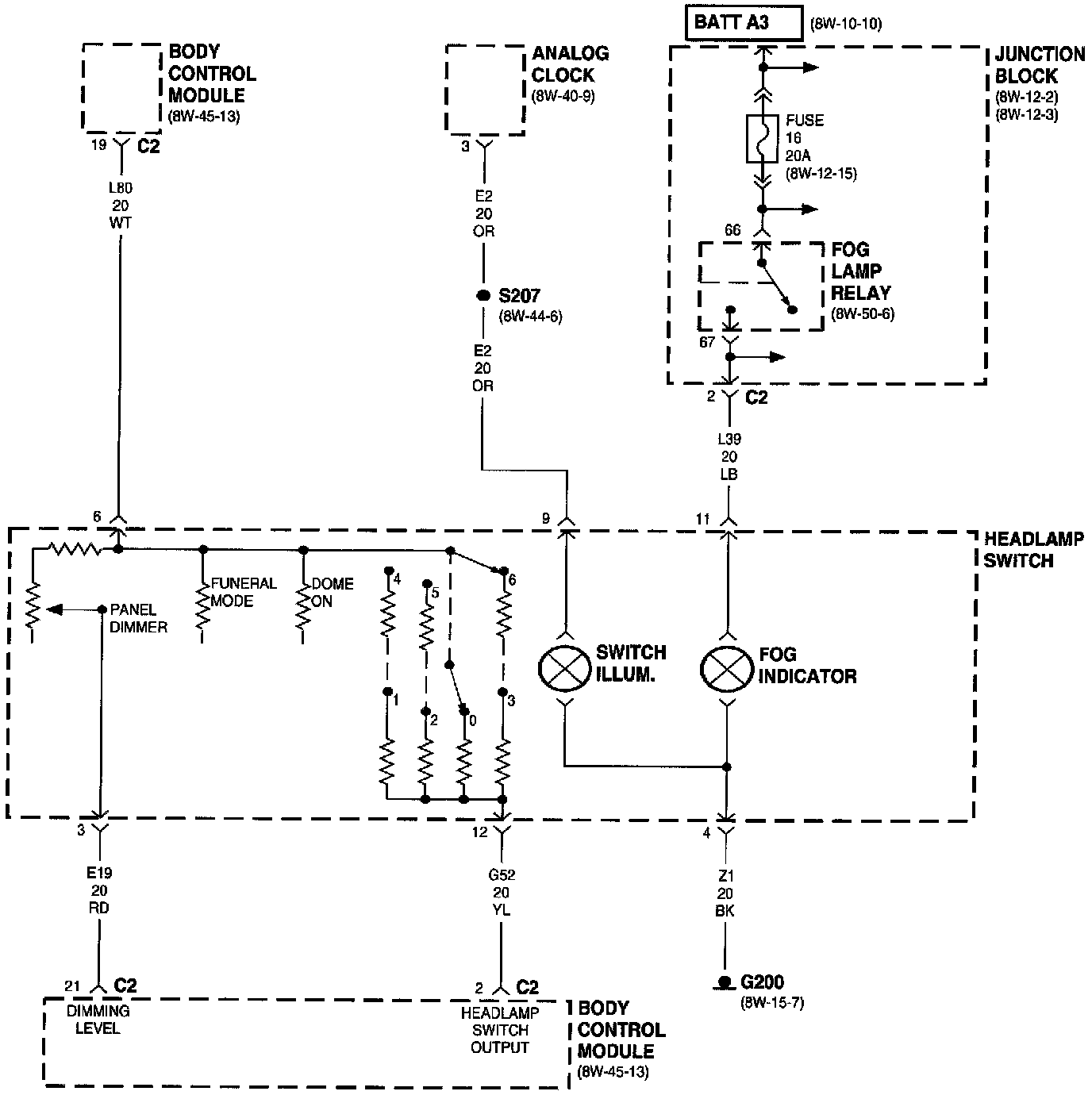

Front Lighting:

Analog Clock
Body Control Module
Fog Lamp Relay
Fuse 16 (JB)
G200
Headlamp Switch
Junction Block

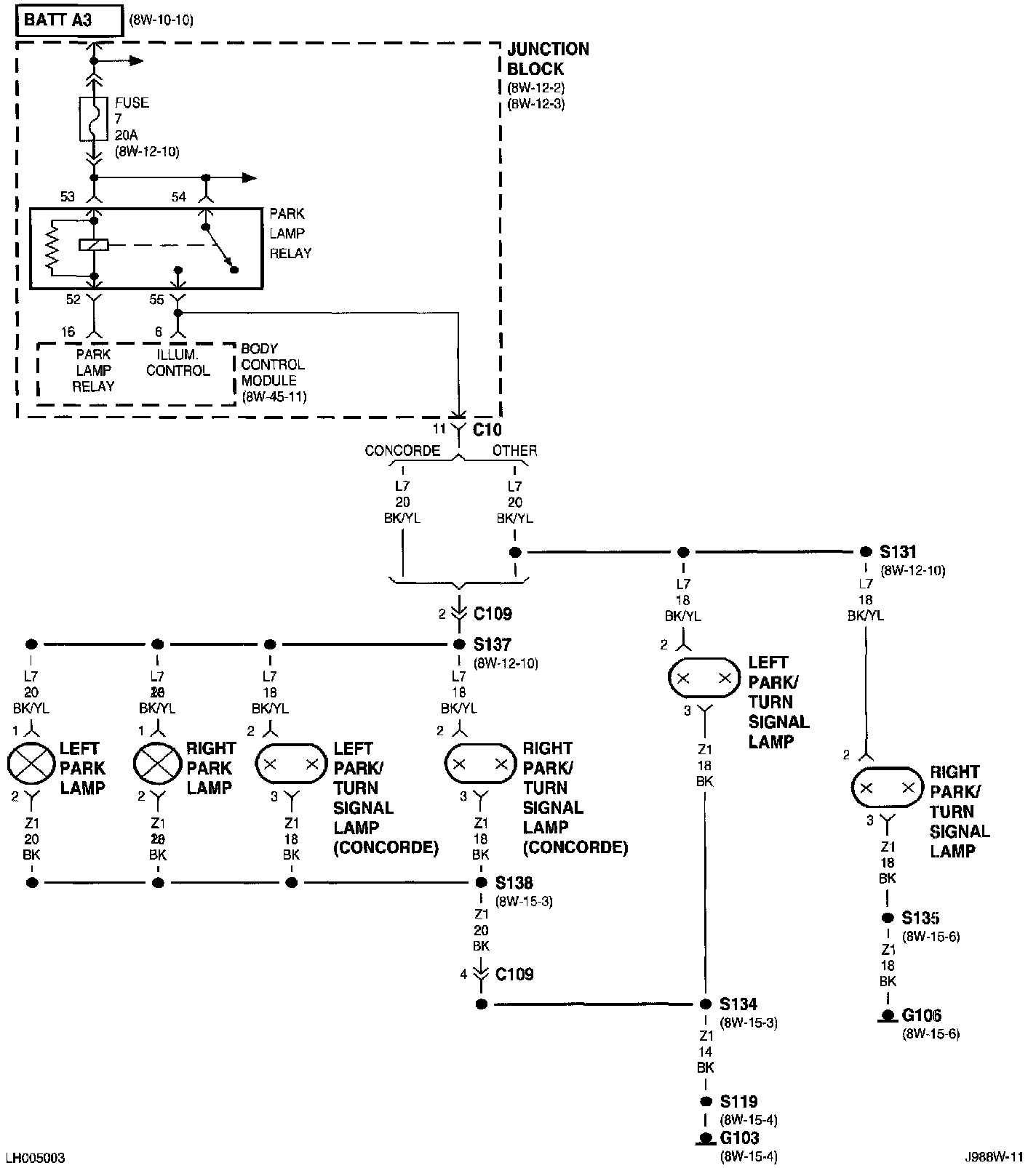

Front Lighting:

Body Control Module
Fuse 7 (JB)
G103
C106
Junction Block
Left Park Lamp
Left Park/Turn Signal Lamp
Park Lamp Relay
Right Park Lamp
Right Park/Turn Signal Lamp

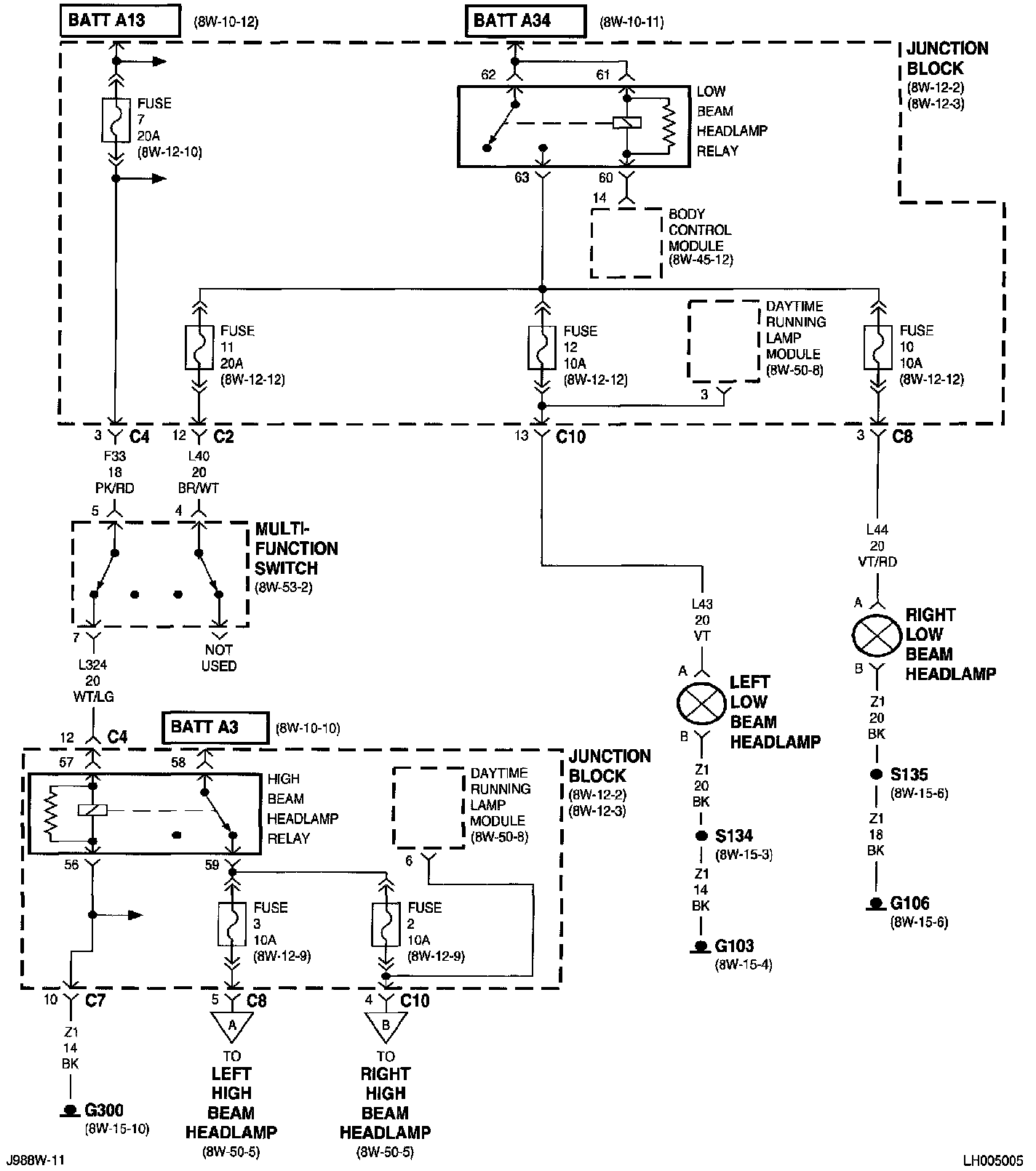

Front Lighting:

Body Control Module
Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 3 (JB)
Fuse 7 (JB)
Fuse 10 (JB)
Fuse 11 (JB)
Fuse 12 (JB)
G103
C106
G300
High Beam Headlamp Relay
Junction Block
Left Low Beam Headlamp
Low Beam Headlamp Relay
Multi- Function Switch
Right Low Beam Headlamp

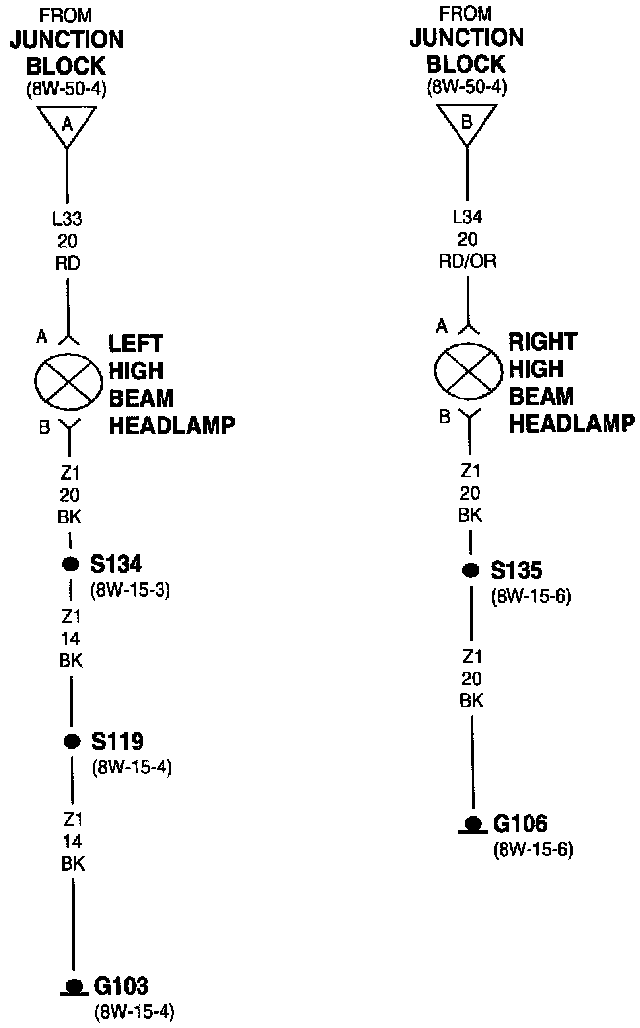

Front Lighting:

G103
C106
Left High Beam Headlamp
Right High Beam Headlamp

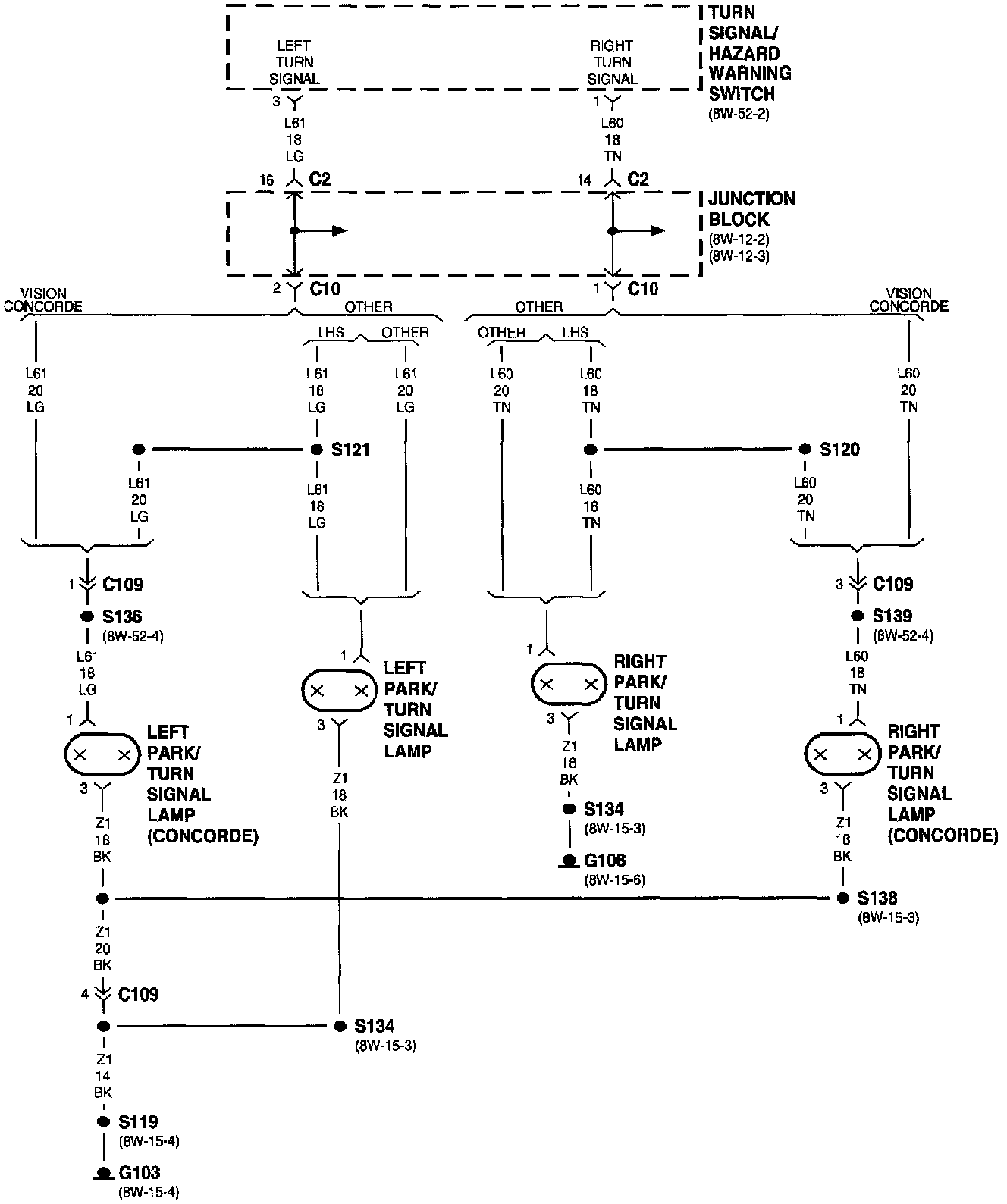

Front Lighting:

G103
C106
Junction Block
Left Park/Turn Signal Lamp
Right Park/Turn Signal Lamp
Turn Signal/Hazard Warning Switch

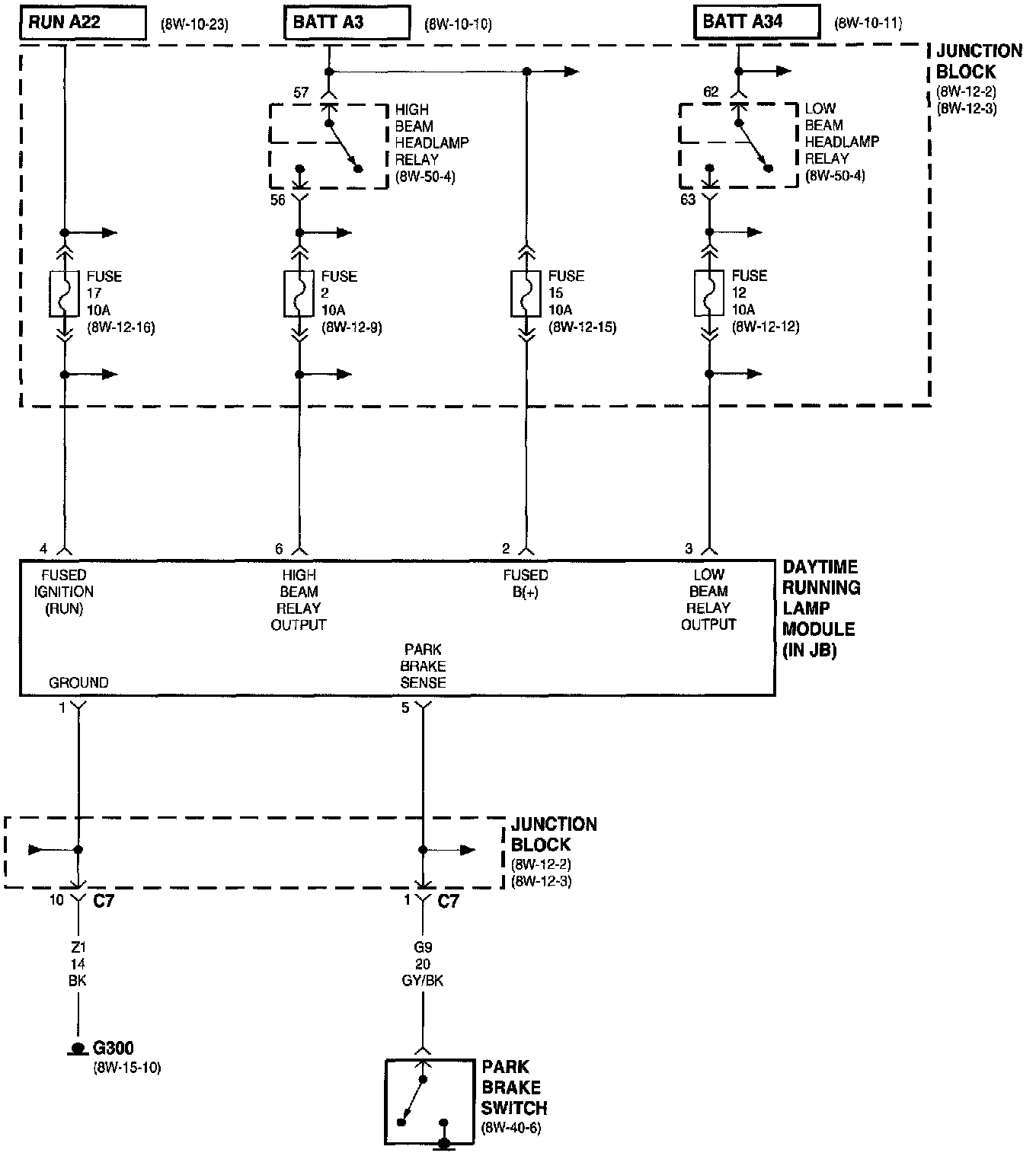

Front Lighting:

Daytime Running Lamp Module
Fuse 2 (JB)
Fuse 12 (JB)
Fuse 15 (JB)
Fuse 17 (JB)
G300
High Beam Headlamp Relay
Junction Block
Low Beam Headlamp Relay
Park Brake Switch


NOTE: To view Diagrams referred to in these diagrams SEE Complete Body and Chassis Diagrams.
