Air Conditioning & Heater Wiring

Air-Conditioning-Heater With Automatic Temperature Control:

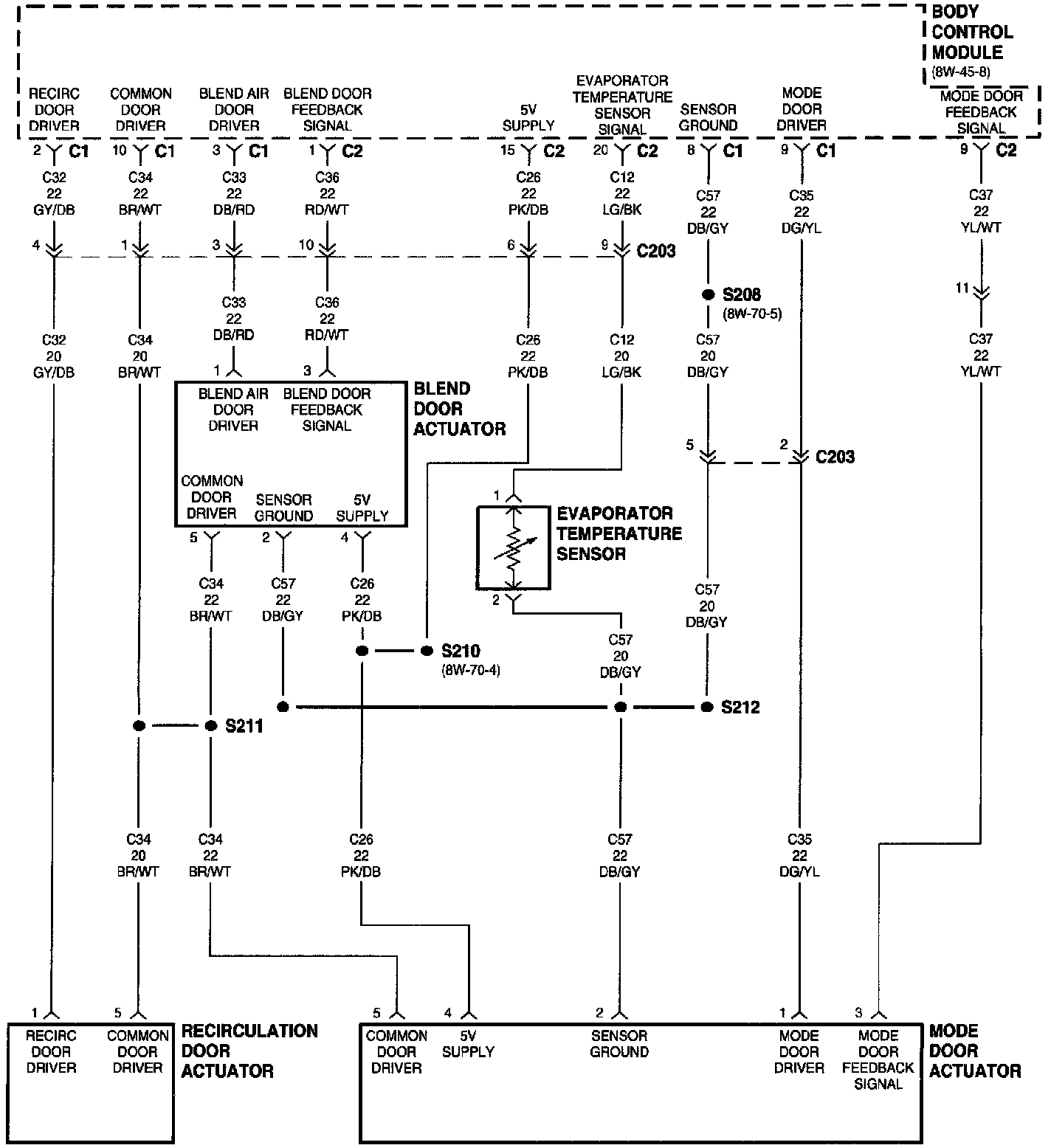

Blend Door Actuator
Body Control Module
Evaporator Temperature Sensor
Mode Door Actuator
Recirculation Door Actuator

Air-Conditioning-Heater With Automatic Temperature Control:

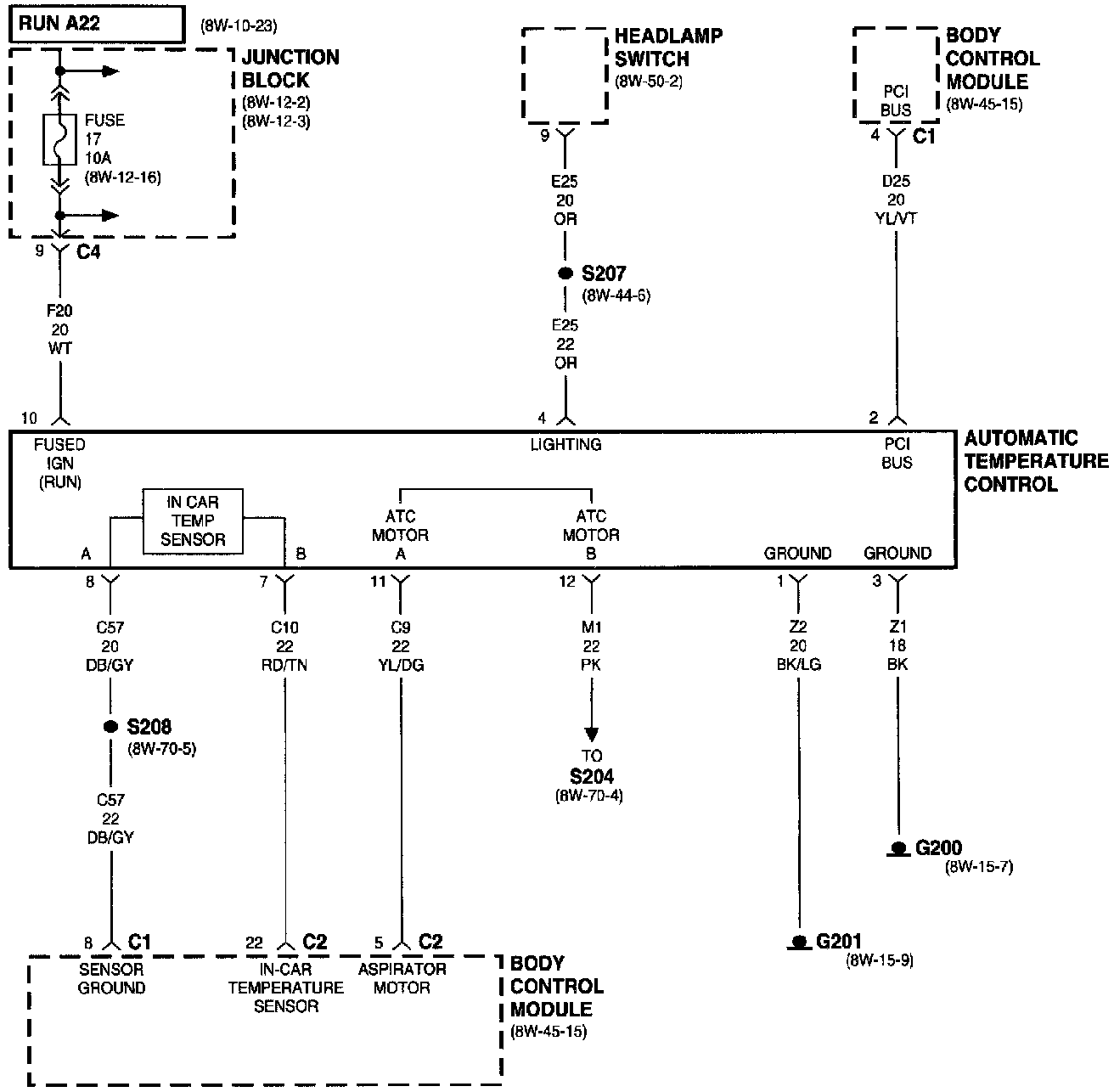

Automatic Temperature Control
Body Control Module
Fuse 17 (JB)
G201
Headlamp Switch
Junction Block

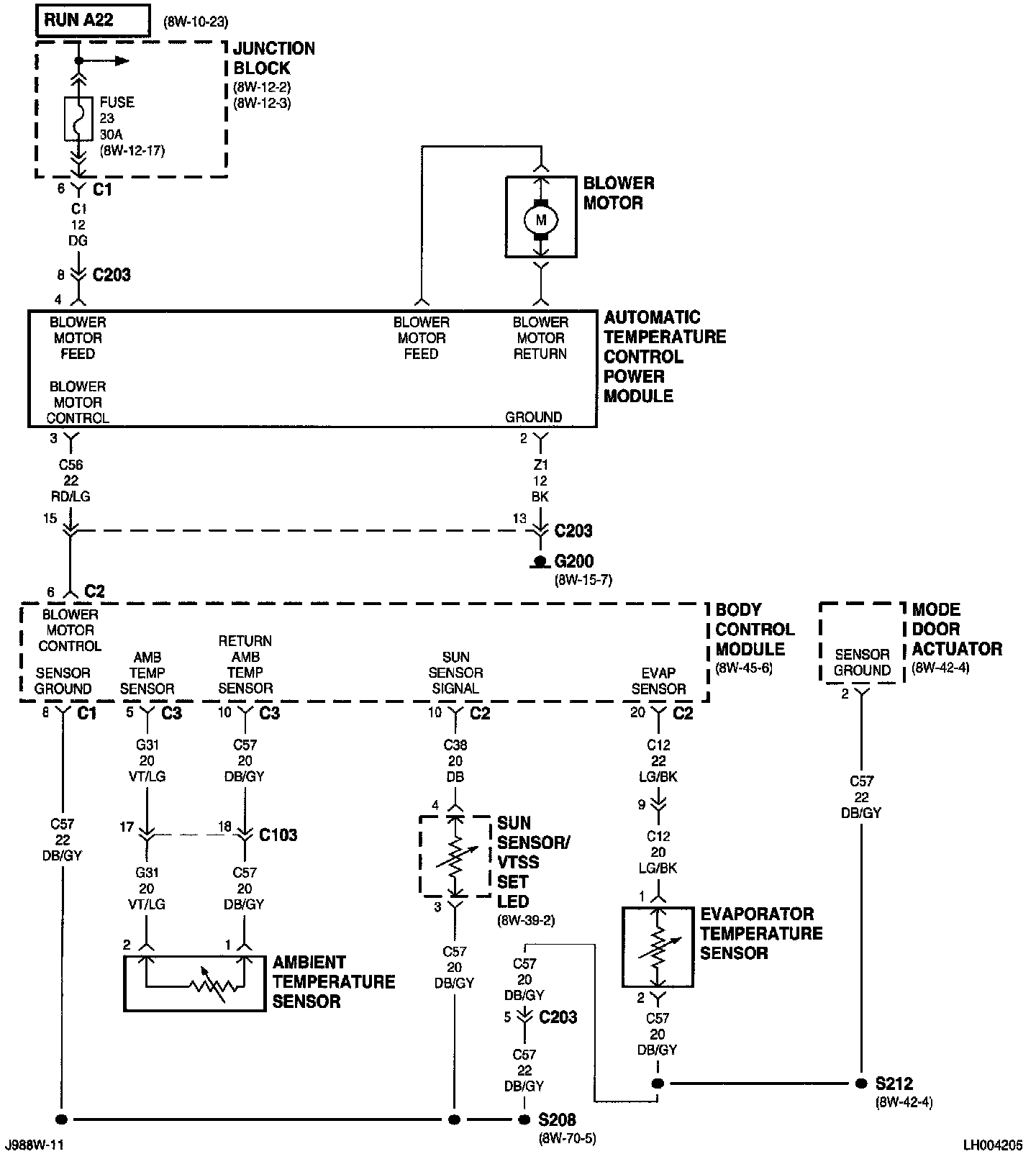

Air-Conditioning-Heater With Automatic Temperature Control:

Ambient Temperature Sensor
Automatic Temperature Control Power Module
Blower Motor
Body Control Module
Evaporator Temperature Sensor
Fuse 23 (JB)
Junction Block
Mode Door Actuator
Sun Sensor/VTSS Set Led

Air-Conditioning-Heater With Automatic Temperature Control:

A/C Compressor Clutch
A/C Compressor Clutch Relay
A/C Pressure Transducer
Fuse 21 (JB)
Fuse B (PDC)
G101
Junction Block
Power Distribution Center
Powertrain Control Module

Air-Conditioning-Heater With Automatic Temperature Control:

Fuse 21 (JB)
Fuse B (PDC)
Fuse E (PDC)
G105
Junction Block
Power Distribution Center
Powertrain Control Module
Radiator Fan High Relay
Radiator Fan High/Low Relay
Radiator Fan Motor Assembly


NOTE: To view Diagrams referred to in these diagrams SEE Complete Body and Chassis Diagrams. Diagrams By Group Number
