Wiring Diagrams

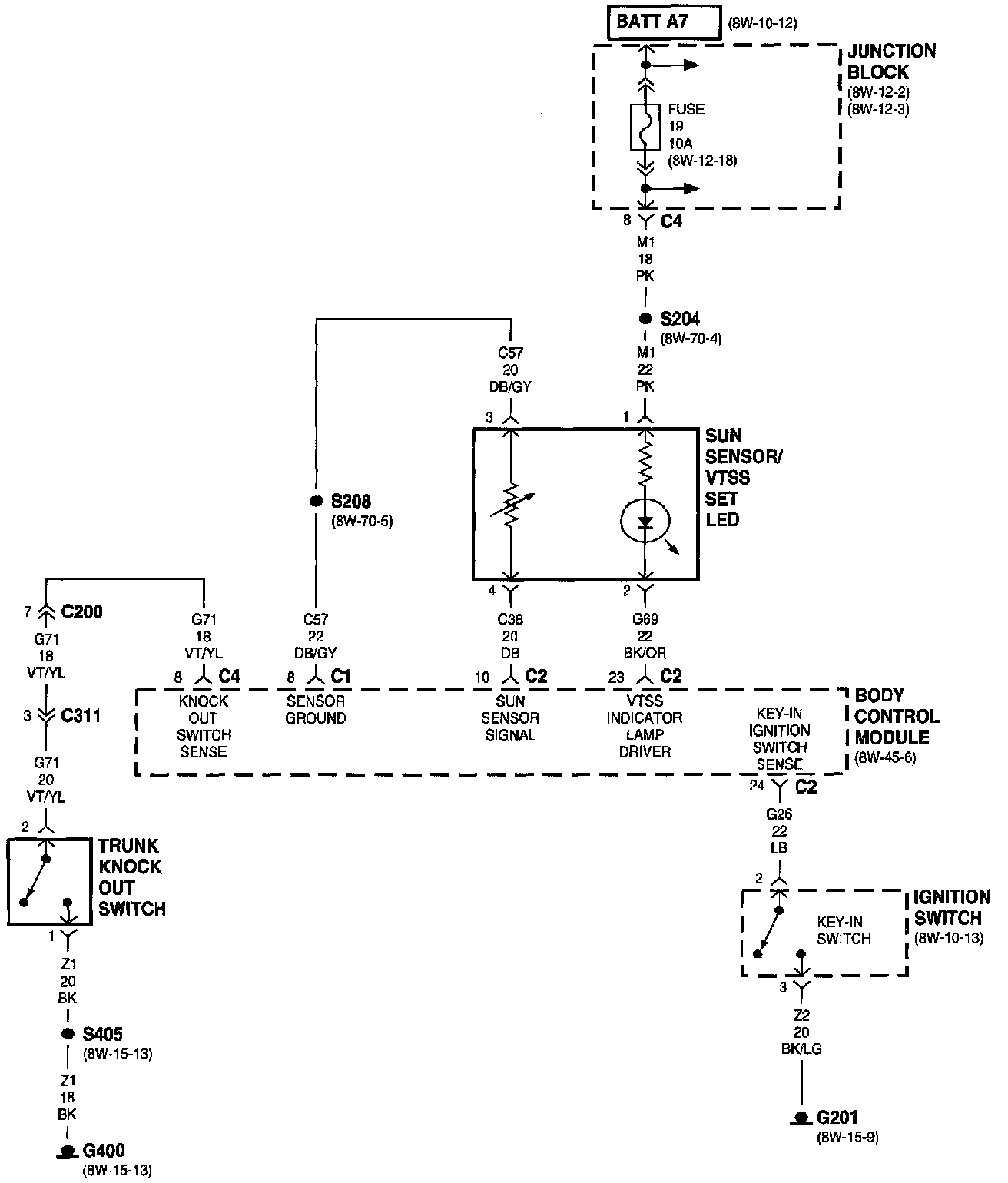

Vehicle Theft Security System (Part 1 Of 5):

Body Control Module
Fuse 19 (JB)
G201
G400
Ignition Switch
Junction Block
Key-In Switch
Sun Sensor/Vtss Set Led
Trunk Knock Out Switch

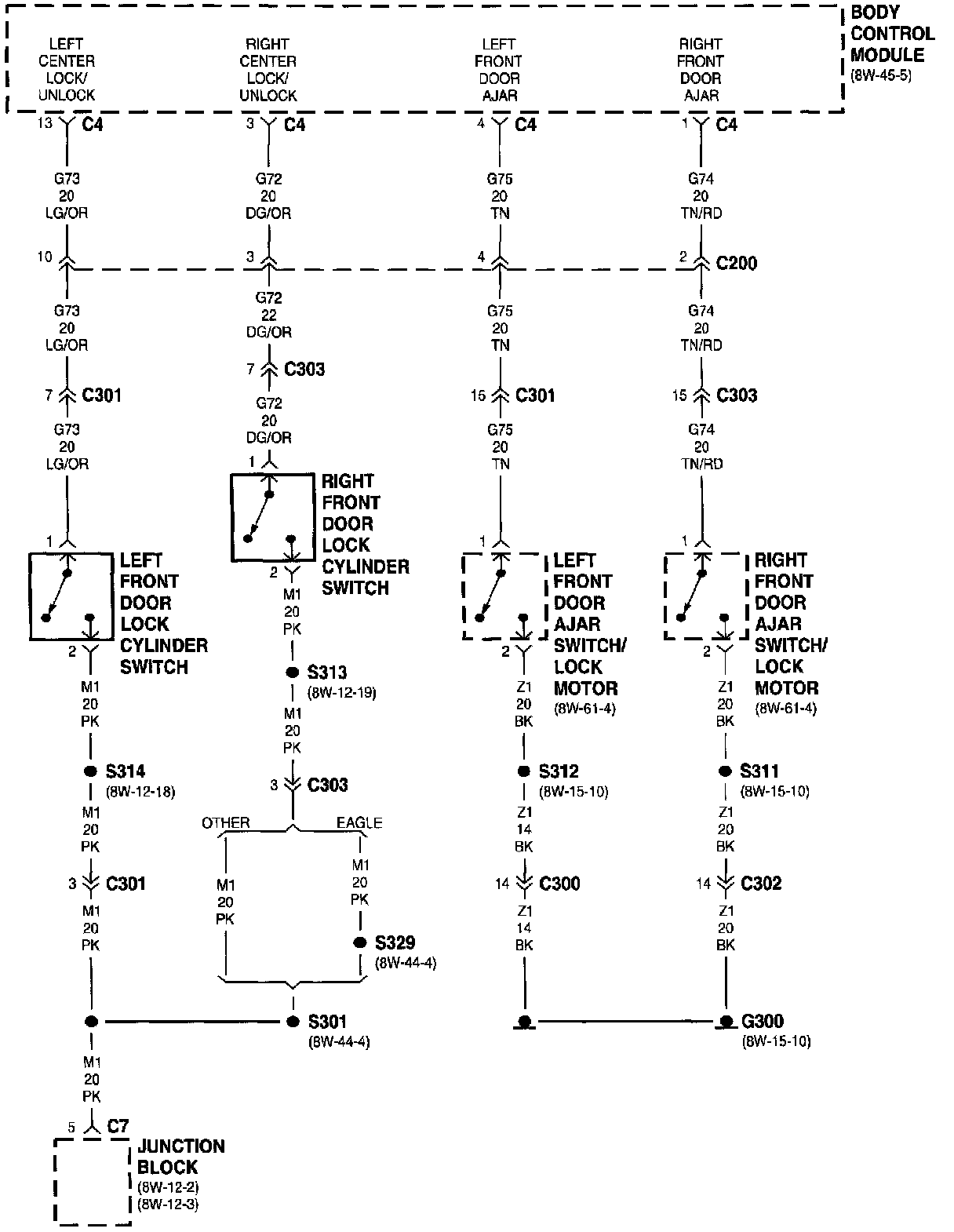

Vehicle Theft Security System (Part 2 Of 5):

Body Control Module
Junction Block
Left Front Door Ajar Switch/Lock Motor
Left Front Door Lock Cylinder Switch
Right Front Door Ajar Switch/Lock Motor
Right Front Door Lock Cylinder Switch

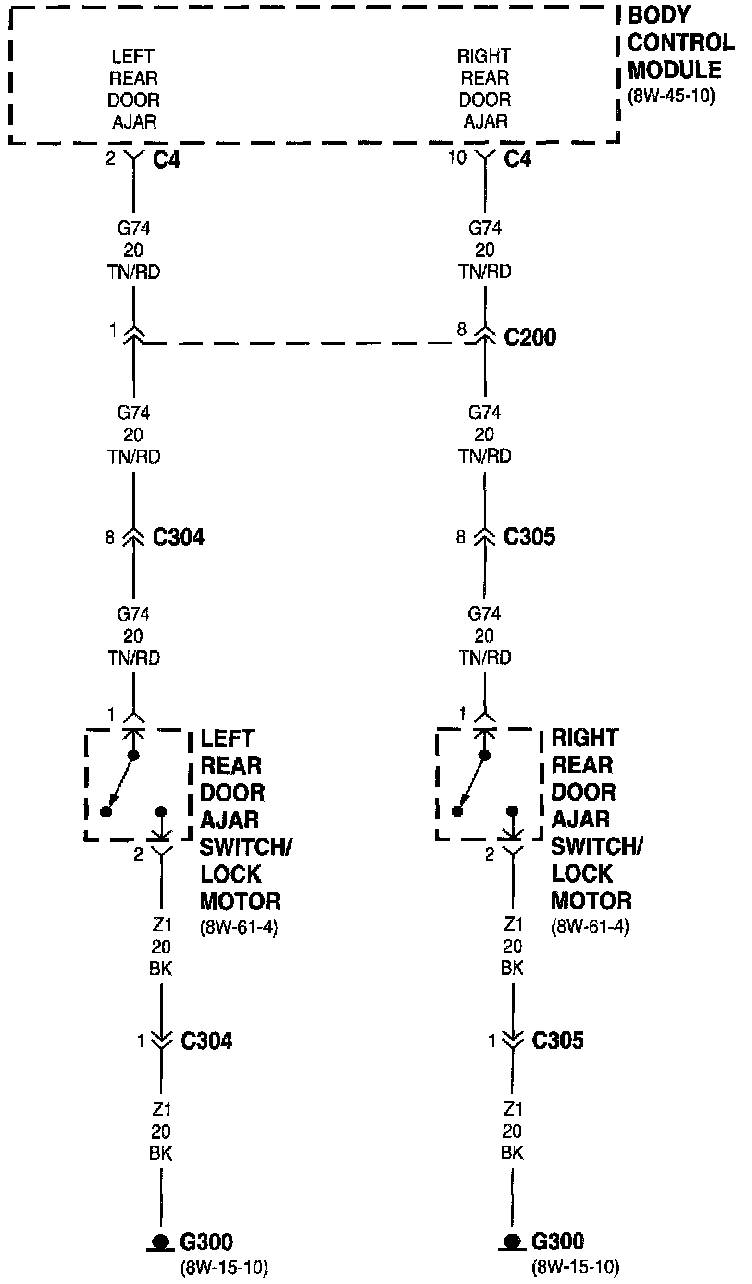

Vehicle Theft Security System (Part 3 Of 5):

Body Control Module
Left Rear Door Ajar Switch/Lock Motor
Right Rear Door Ajar Switch/Lock Motor

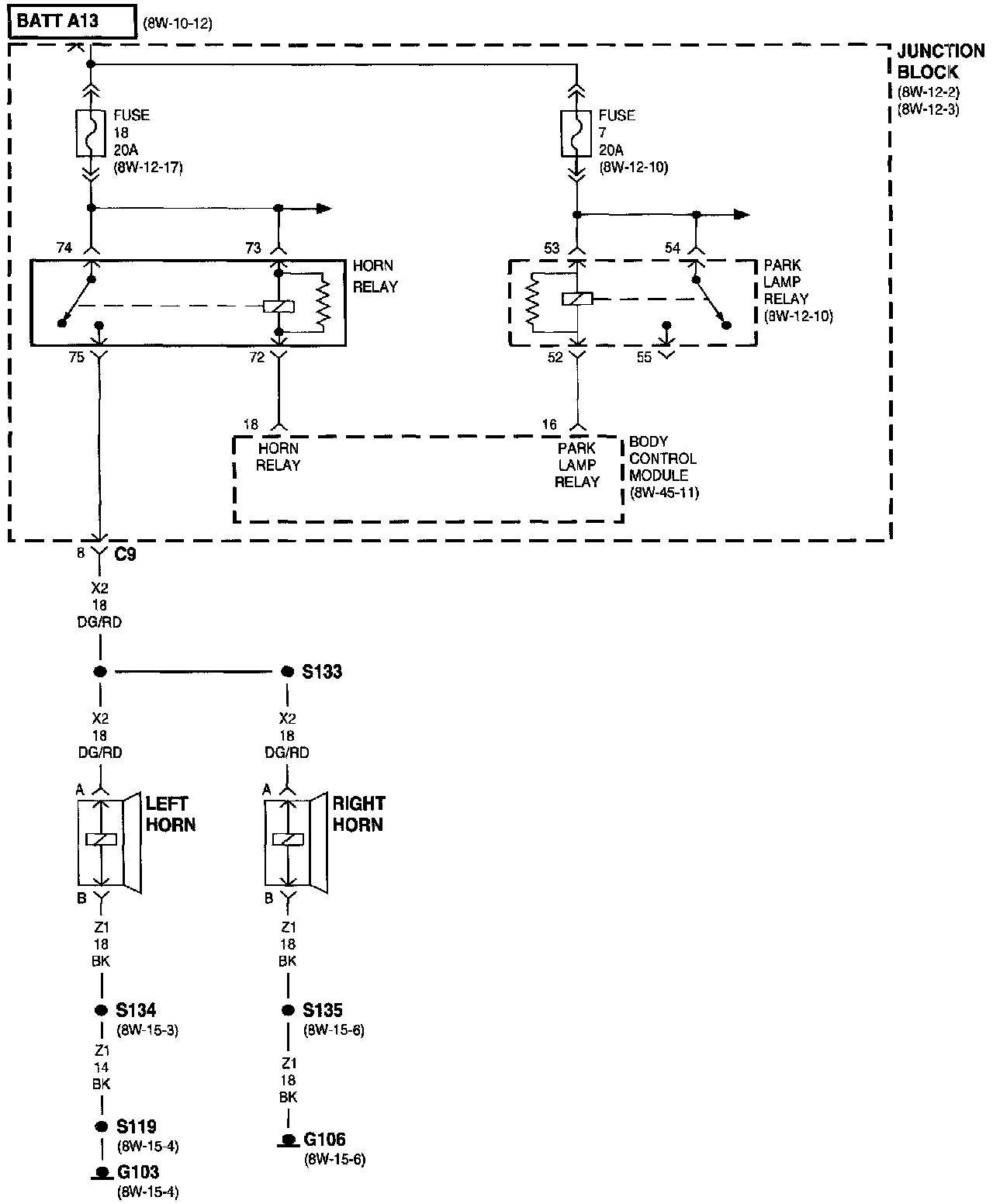

Vehicle Theft Security System (Part 4 Of 5):

Body Control Module
Fuse 7 (JB)
Fuse 18 (JB)
G103
Horn Relay
Junction Block
Left Horn
Park Lamp Relay
Right Horn

Vehicle Theft Security System (Part 5 Of 5):

Body Control Module
Fuse 14 (JB)
Fuse 19 (JB)
G201
Junction Block
Powertrain Control Module
Sentry Key Immobilizer Module

NOTE: To view Diagrams referred to in these diagrams SEE Complete Body and Chassis Diagrams. Diagrams By Group Number
