Lighting/Power Locks - Service Manual Revisions

NUMBER: 26-06-98G

GROUP: Miscellaneous

DATE: June, 1998

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

Models:
1998 Concorde, Intrepid, LHS Service Manual - Publication Number 81-270-8140

DESCRIPTION OF CHANGES

Revision to the headlamp switch specifications





8E-2

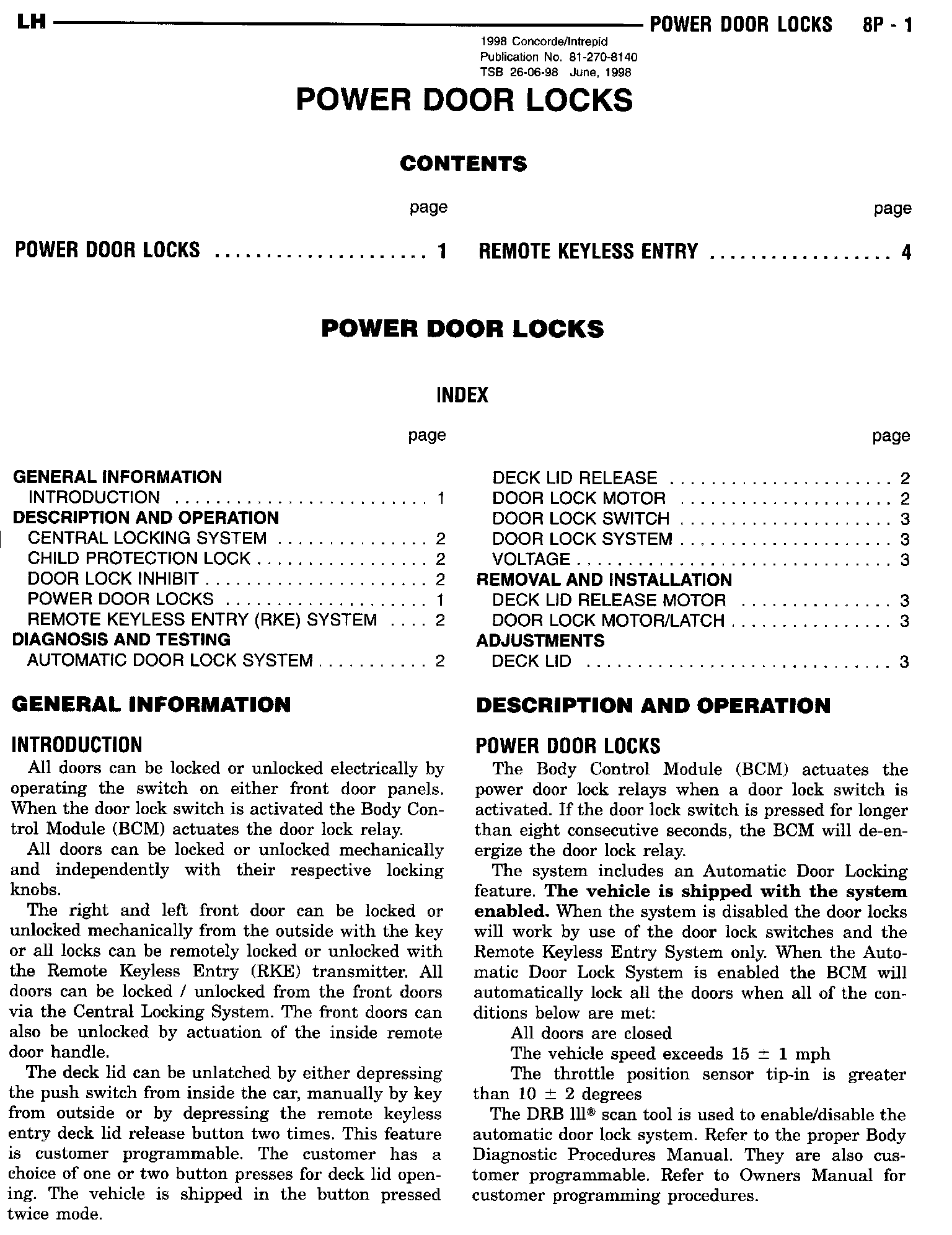

Revisions to the power door lock, central locking section

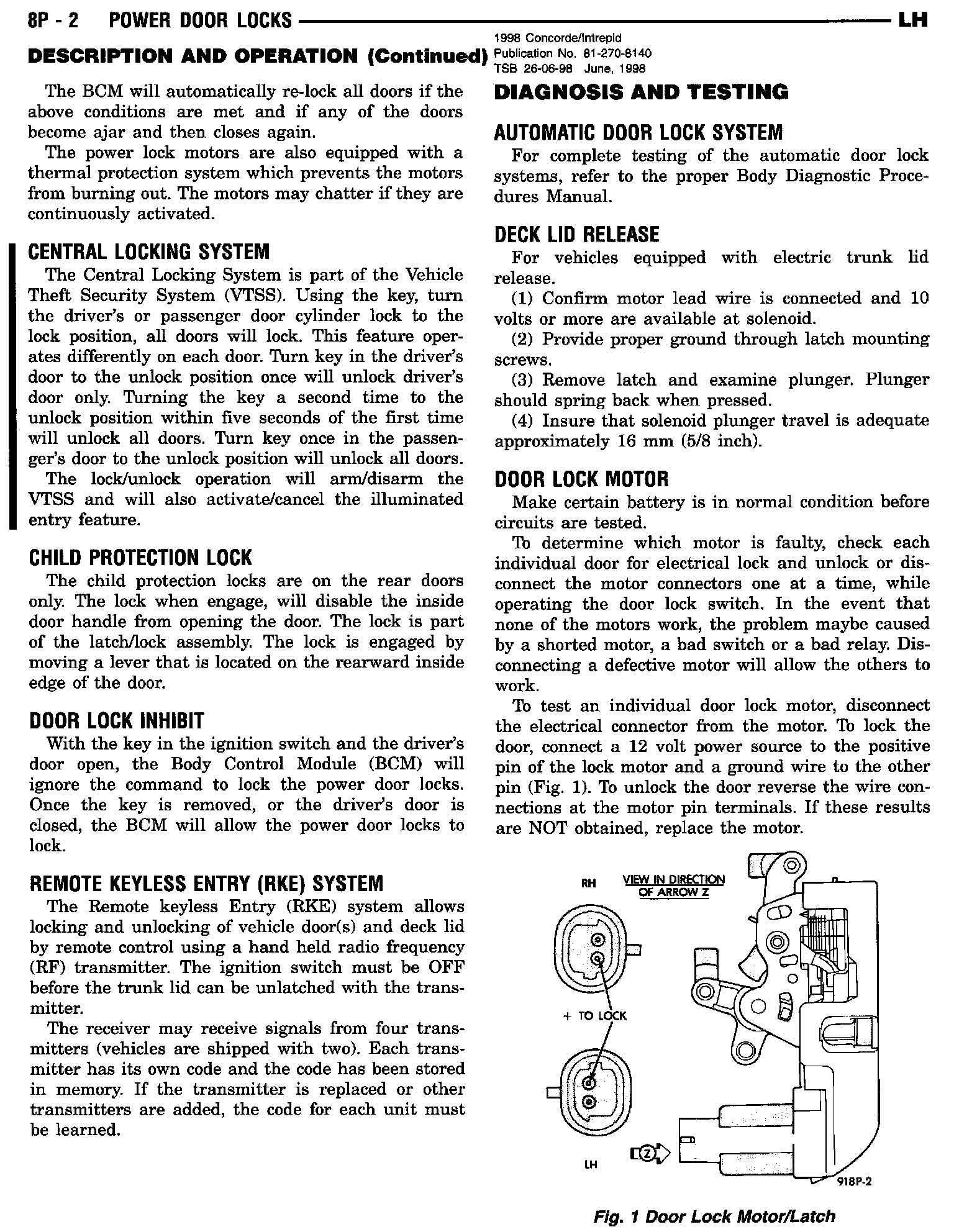

8P-1

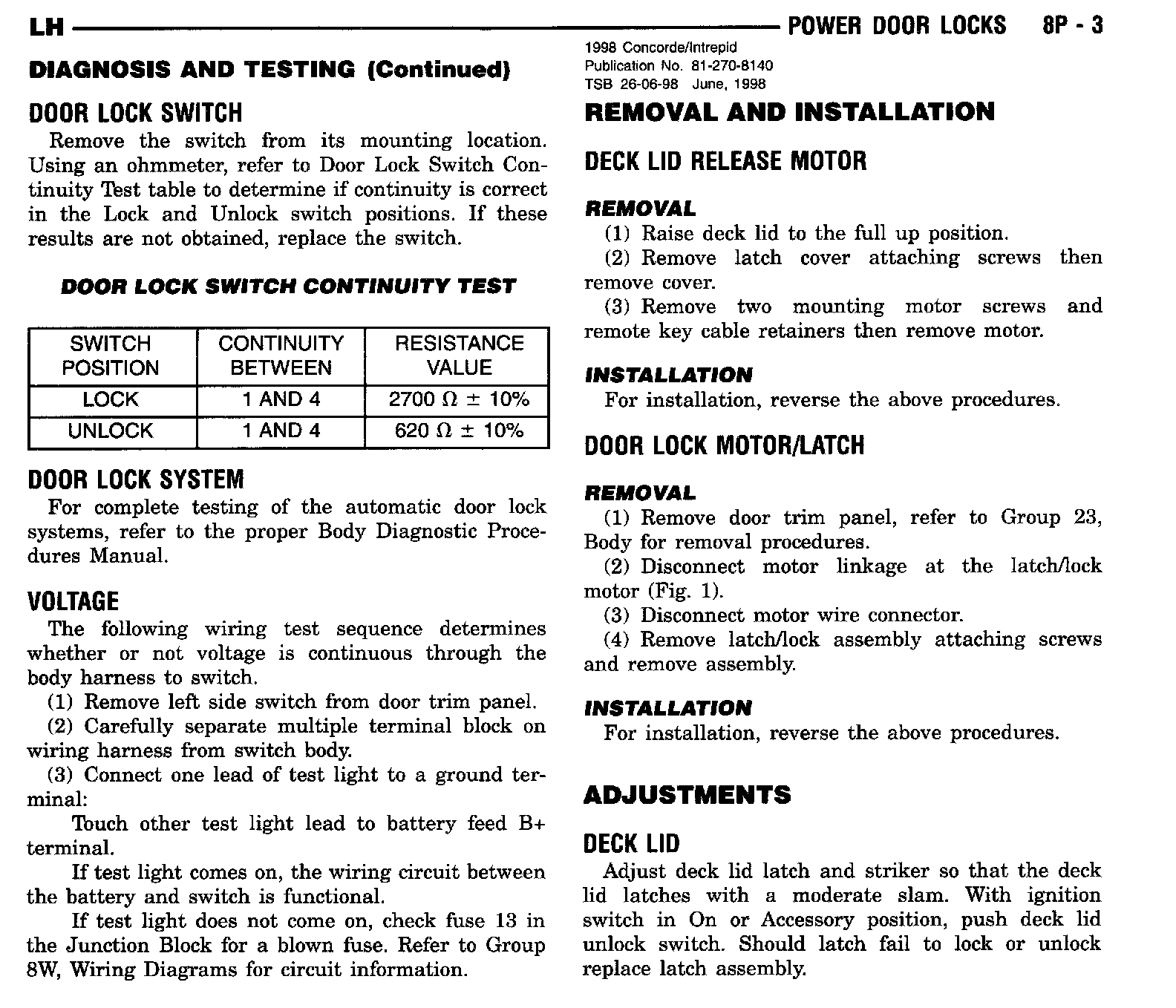

8P-2





8P-3
