Trim Panel: Service and Repair

REMOVAL

1. Remove instrument panel end cap.

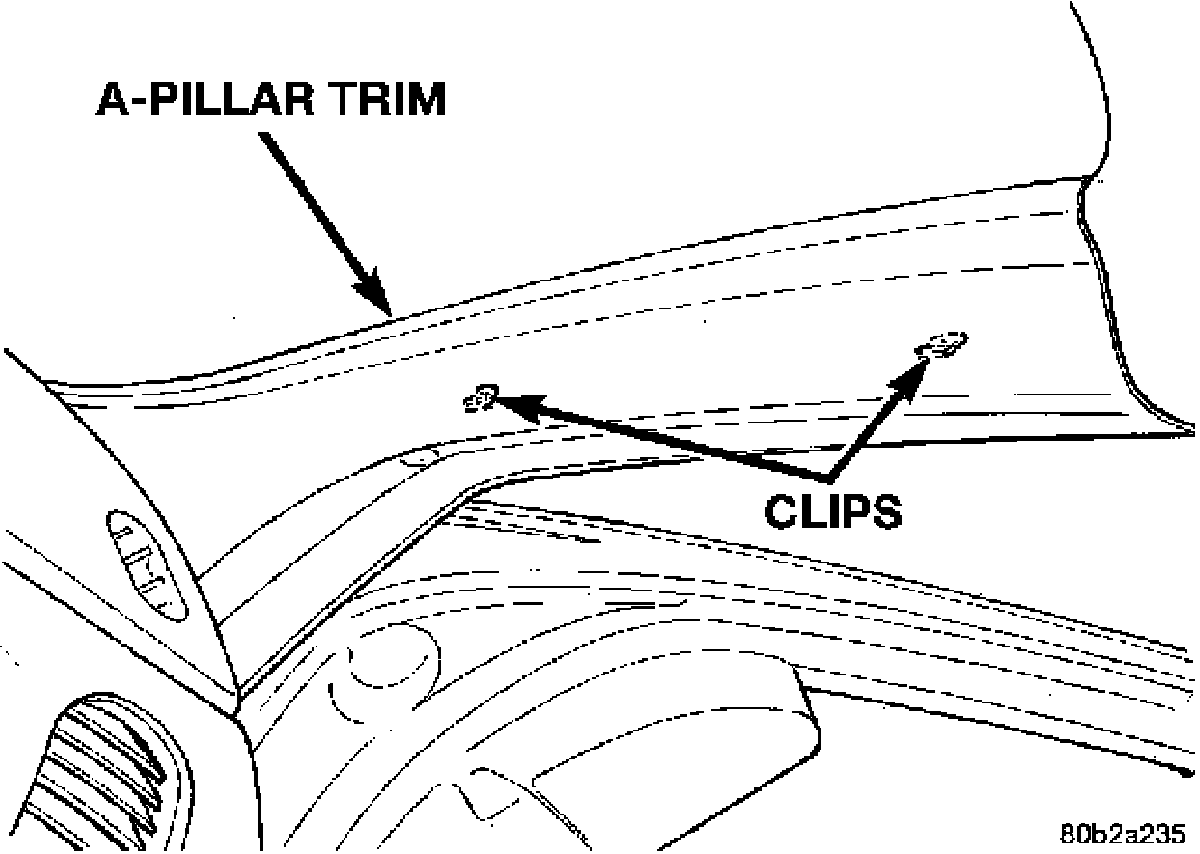

2. Disengage clips attaching trim to A-pillar by pulling on trim A-Pillar Trim

3. Slide A-pillar trim rearward, to disengaging from instrument panel top cover.

4. Remove A-pillar trim from vehicle

INSTALLATION

1. Slide A-pillar trim forward ensuring that the trim engages with the instrument panel top cover.

2. Engage clips to attach trim to A-pillar.

3. Install instrument panel end cap.
