Wiper Motor: Testing and Inspection

WARNING: ON VEHICLES EQUIPPED WITH AIR-BAGS, SEE AIR BAGS AND SEAT BELTS/AIR BAGS SYSTEMS FOR STEERING WHEEL OR COLUMN REMOVAL PROCEDURES.

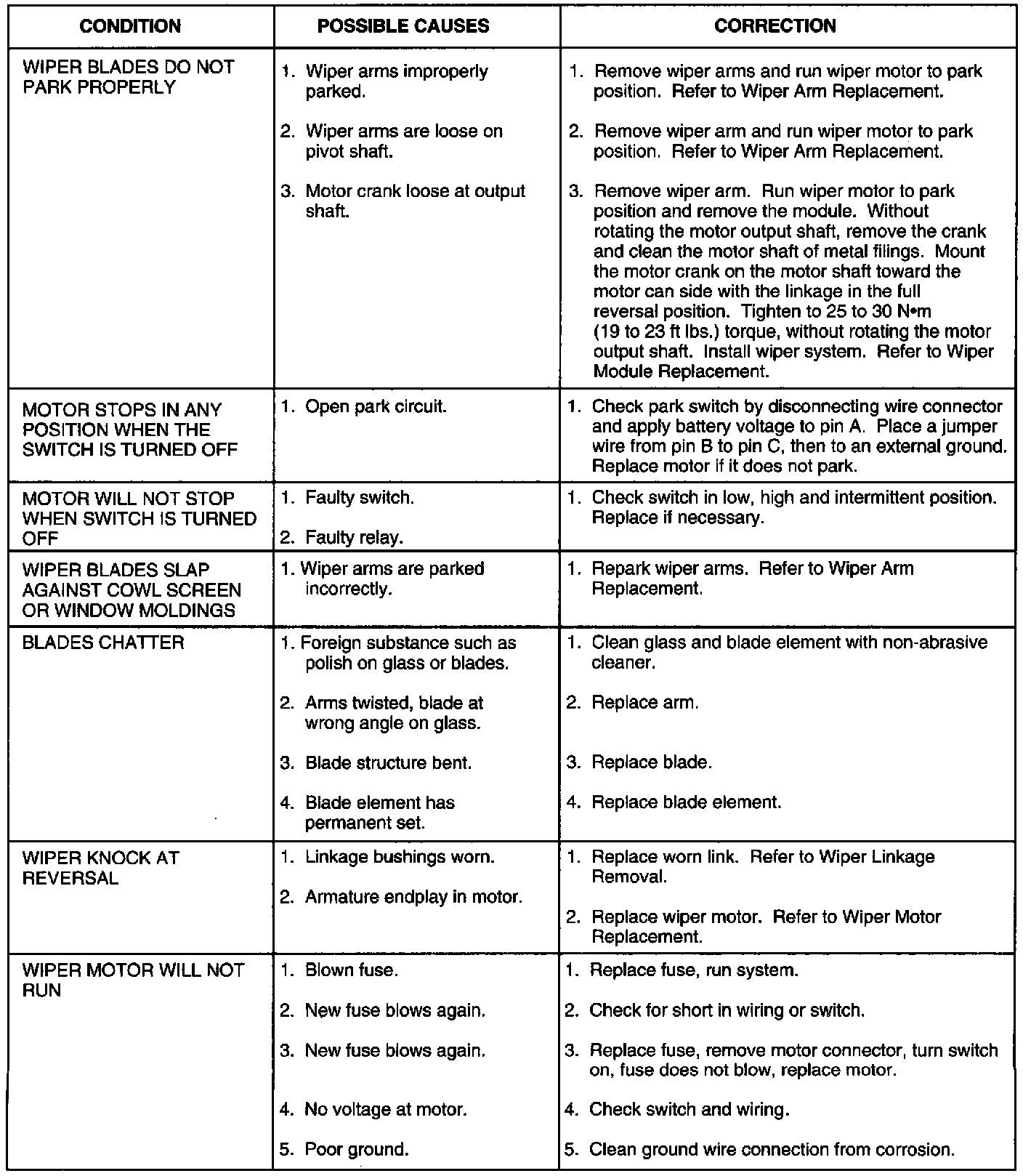

Wiper Motor Test:

Whenever a wiper motor malfunction occurs, disconnect motor wire harness and clean the terminals. Ensure the wire harness is properly connected before starting diagnosis and repair procedures.
