Windshield Washer Spray Nozzle: Service and Repair

REMOVAL
- To replace nozzle, disconnect washer fluid hose. Using a needle nose pliers, squeeze together the locking tabs on the nozzle.

INSTALLATION

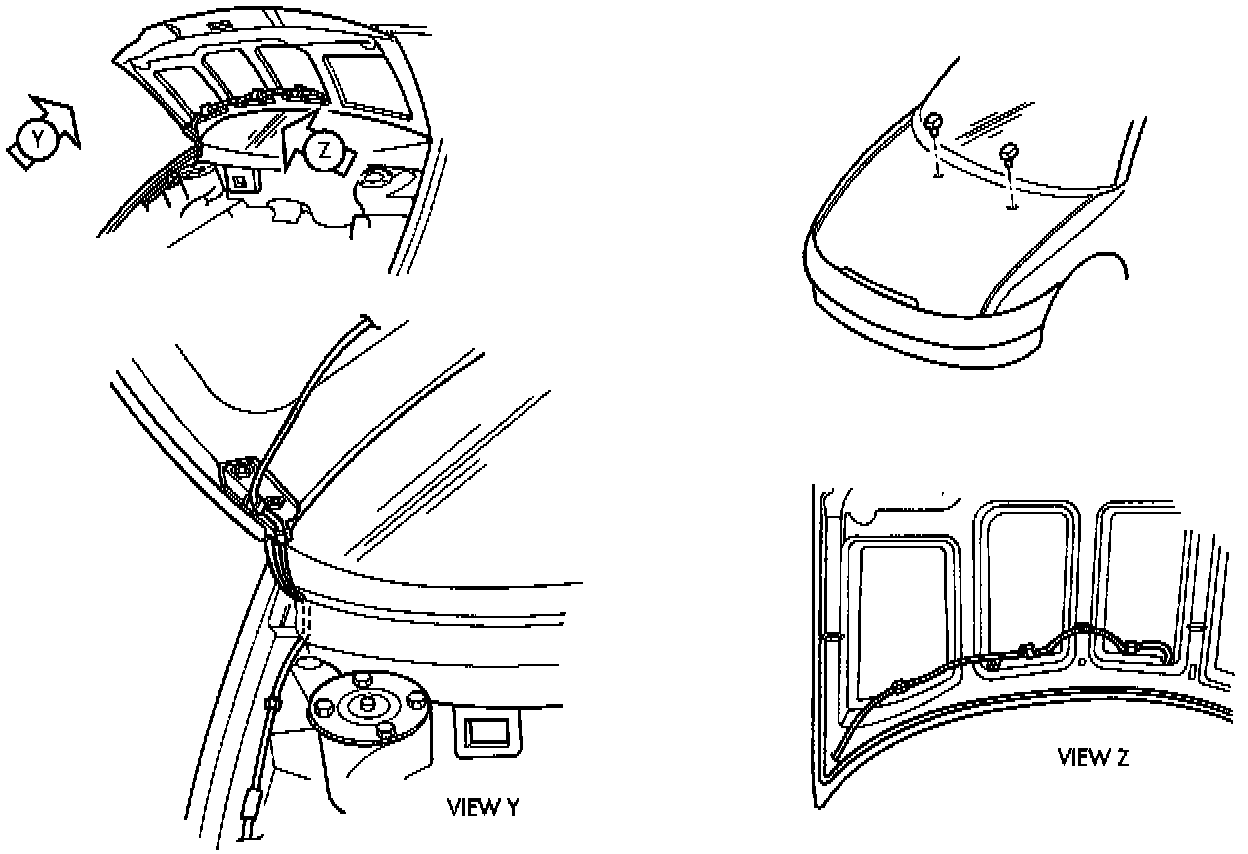

Washer Fluid Hose Location:

- For installing make sure that both locking tabs are securely snapped into position. Connect washer fluid hose. If no washer spray, check fluid hoses kinks or leaks.
