Odometer/Transmission Range Indicator

REMOVAL
1. Remove speedometer/tachometer, refer to Instrument Panel, Gauges and Warning Indicators/Instrument Panel/Speedometer/Tachometer and Odometer Transmission Range Indicator Removal and Installation

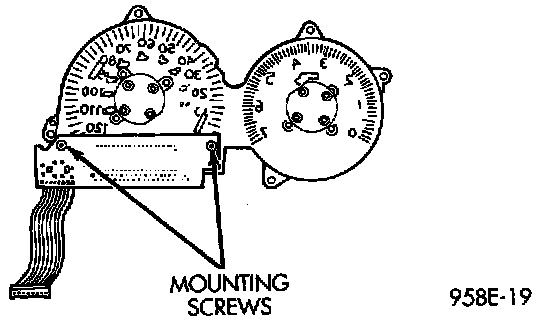

Odometer/Transmission Range Indicator:




2. Remove screws attaching from the back of speedometer and remove the odometer/transmission range indicator display.

INSTALLATION
- For installation, reverse the above procedures.
