Transmission Cooler: Description and Operation

LOCATION
Oil coolers are internal oil to coolant type, mounted in the radiator left tank.

RUBBER LINES
Rubber oil lines feed the oil cooler and the automatic transmission. Use only approved transmission oil cooler hose. Since these are molded to fit space available, molded hoses are recommended. Tighten Oil Cooler Hose Clamps to 2 Nm (18 inch lbs.).

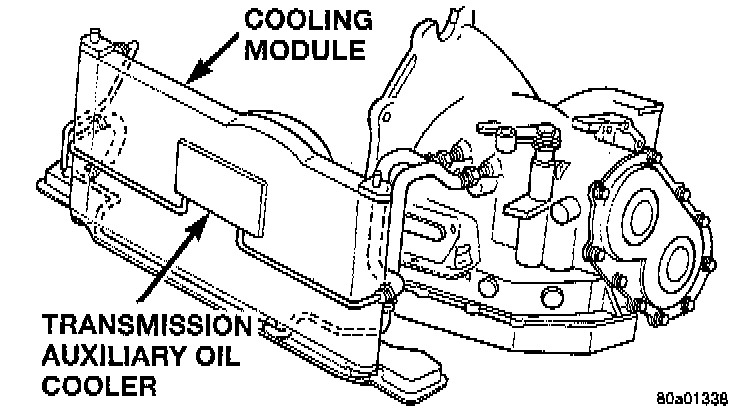

AUXILIARY TRANSMISSION OIL COOLER
This model has an auxiliary transmission oil cooler added in series with the internal oil cooler in the radiator. The auxiliary cooler is a external oil to air type mounted in front of the cooling module.
