Brakes - Kelsey Hayes ABS Manual Revisions

NUMBER: 26-01-98D

GROUP: Miscellaneous

DATE: January, 1998

REVISIONS ARE HIGHLIGHTED WITH BLACK BARS IN THE MARGIN

MODELS:
1997 Kelsey Hayes ABS Diagnostic Manual - Publication Number 81-699-96026

DESCRIPTION OF CHANGE

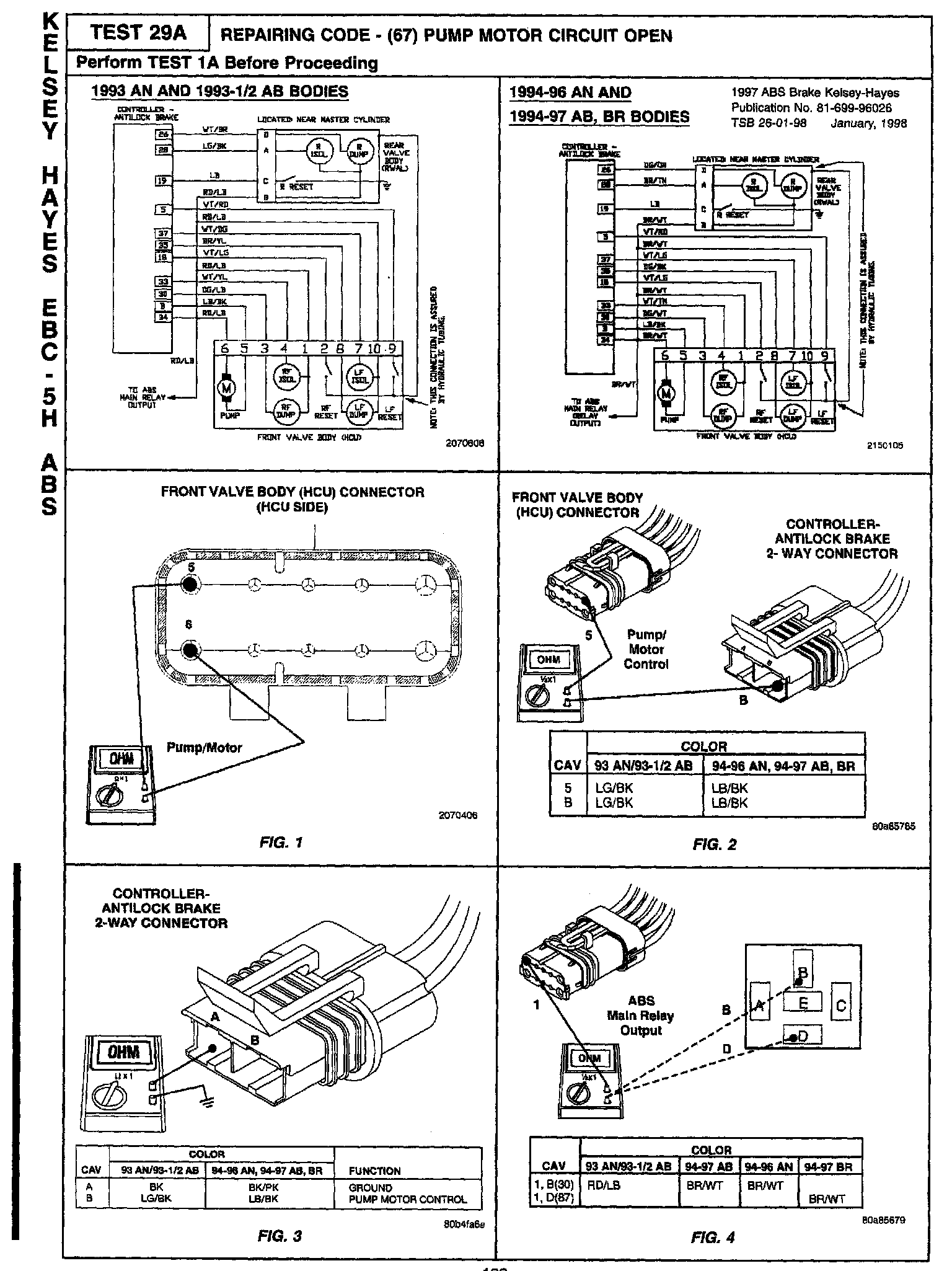

Revisions to the diagnostic procedure and wiring schematic

�#�::

122

Fx�::

123
