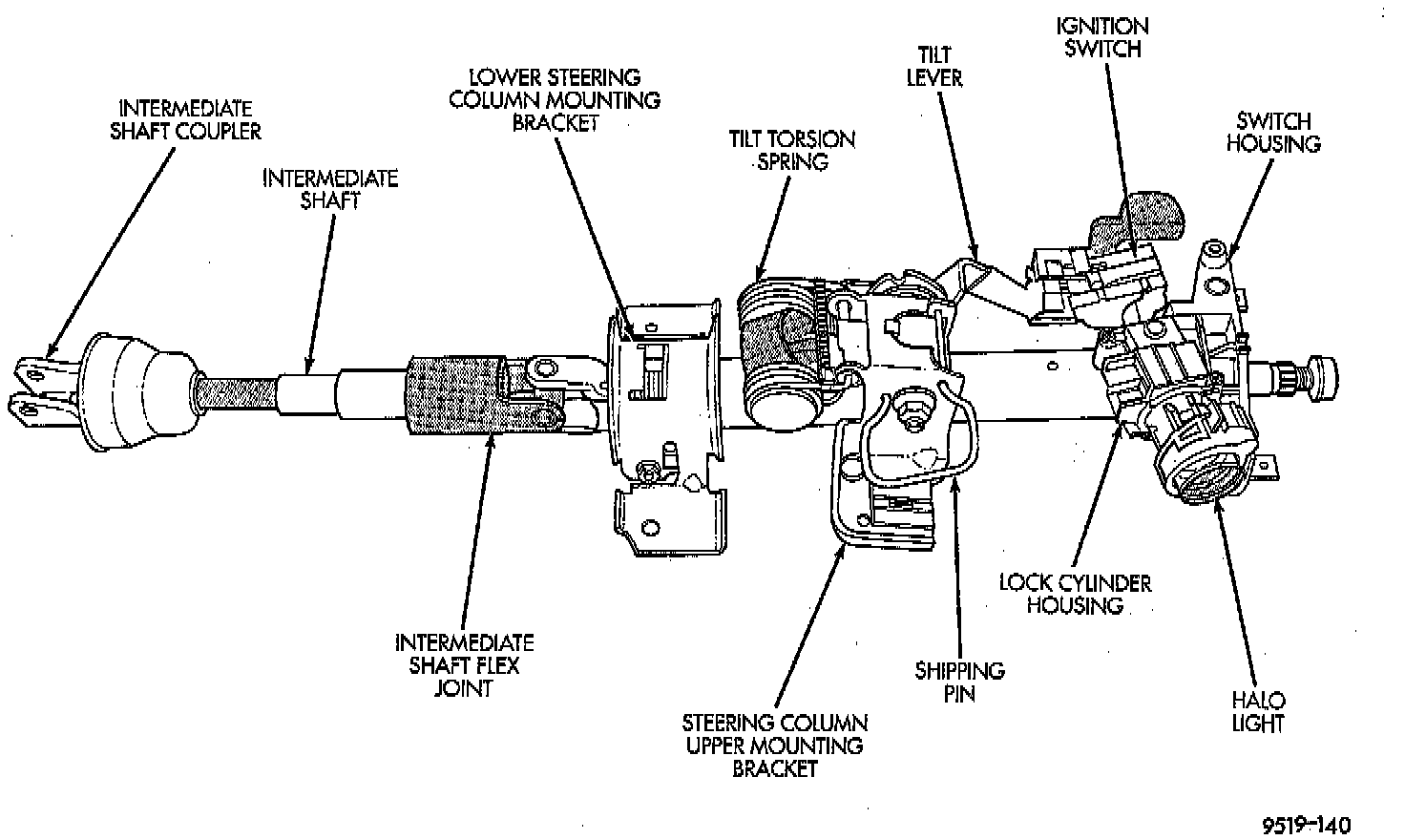

Steering Column: Description and Operation

The steering column used in this vehicle has been designed to be serviced only as a complete assembly if a component of the steering column is determined to be defective. The replaceable components of the steering column assembly, are the key cylinder, ignition switch, multi-function switch, clock spring, speed control switches, halo lamp, trim shrouds, driver air bag and steering wheel. These replaceable components of the steering column, can be serviced without requiring removal of the steering column from the vehicle.
