Removal

PROCEDURE

Rear Speed Sensor Cable Connection To Vehicle Wiring Harness:

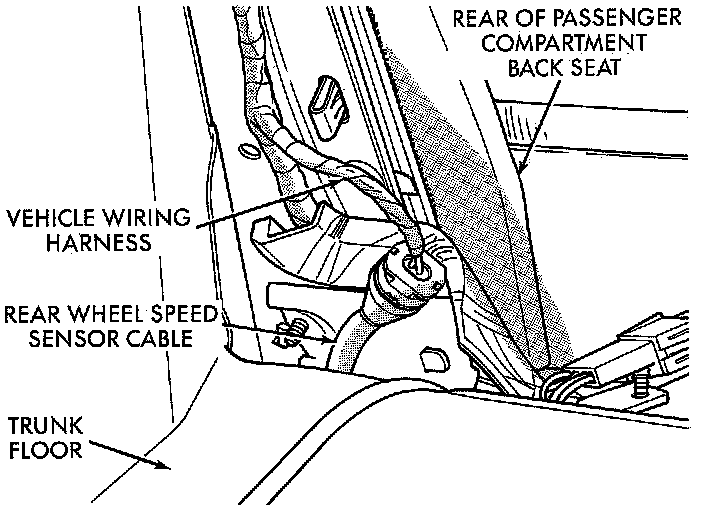

1. Unplug the speed sensor cable connector from the vehicle wiring harness. Access for speed sensor cable to vehicle wiring harness connection is in the trunk of the vehicle.
2. Raise vehicle on jack stands or centered on a frame contact type hoist.
3. Remove the rear tire and wheel assembly from the vehicle.

Rear Speed Sensor Cable Attachment To Body:

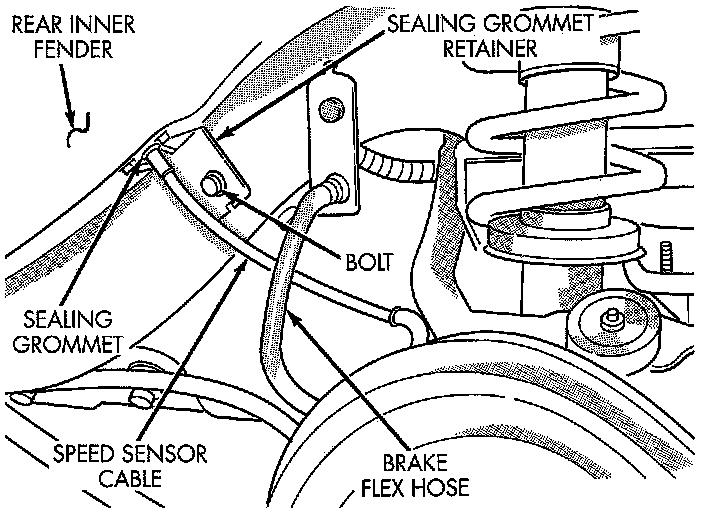

4. Remove speed sensor cable sealing grommet retainer from the rear frame rail of the vehicle. Then remove speed sensor cable sealing grommet and cable from hole in body of vehicle.

Speed Sensor Cable Attachment To Rear Suspension:

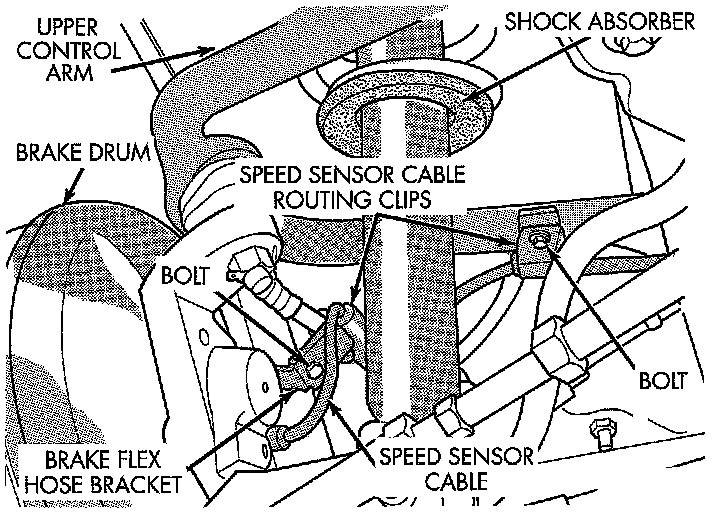

5. Remove speed sensor routing clips from the rear upper control arm and brake flex hose routing bracket.

Rear Speed Sensor Head Attachment To Brake Support Plate:

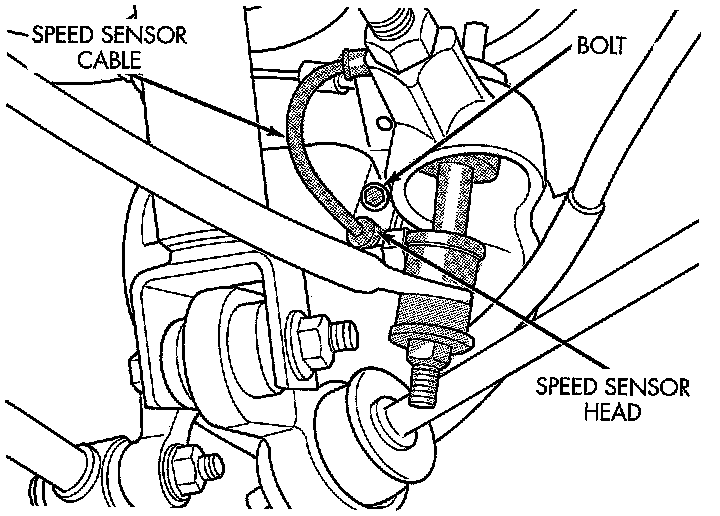

6. Remove the rear speed sensor head from the rear brake support plate.
