Fuel Injector: Service and Repair

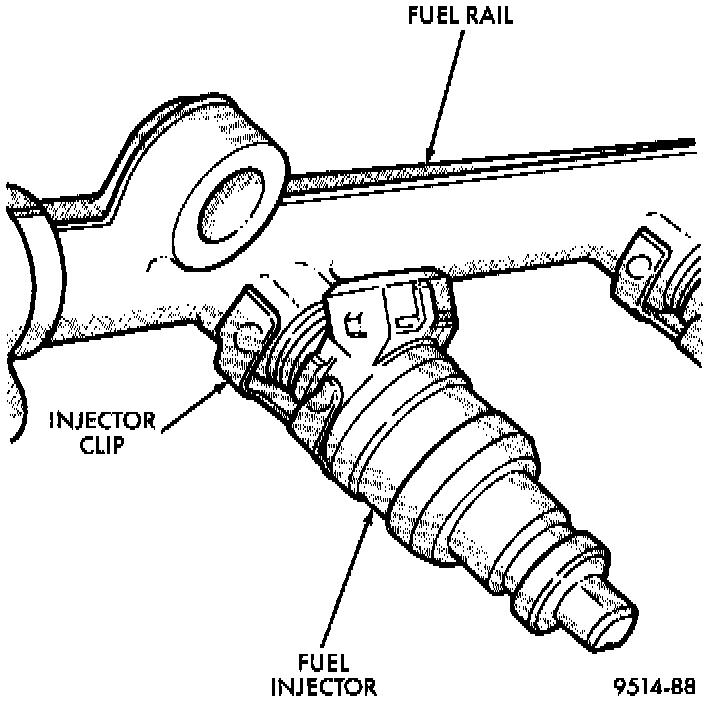

Fig. 18 Fuel Injector Clip:

FUEL INJECTORS
1. Remove fuel rail.
2. Remove fuel injector clip Fig. 18.
3. Pull injector out of fuel rail.
4. Replace fuel injector 0-rings.
