Electro/Mechanical Instrument Cluster

GENERAL INFORMATION
The mechanical instrument cluster is an electro/mechanical module which receives most of its information from the Body Control Module (BCM) via the CCD bus.

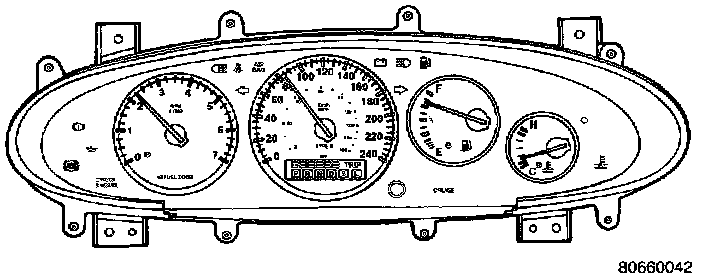

Cluster:

The cluster includes:
- 200 km/h (120 mph) speedometer
- Tachometer
- Odometer/trip odometer and transmission range indicator with automatic transmission
- Door ajar
- Deck ajar
- Lo washer fluid
- Fuel gauge
- Temperature gauge
- Security alarm indicator (optional)

The warning and information indicators include the following:
- Service Engine Soon (Check Engine)
- Airbag
- Charging system
- Low oil pressure
- High temperature
- Low fuel
Seat belt
- Cruise
- Brake/park brake
- Anti-lock brake system
- High beam
- Fog lamps
- Security alarm LED indicator (optional)
- Turn signals

The gauges are the magnetic air-core type. When the ignition switch is OFF, the gauge pointers should rest at or below the low graduation.
