Blower Fan and Motor Check

Inspection:

BLOWER FAN AND MOTOR CHECK

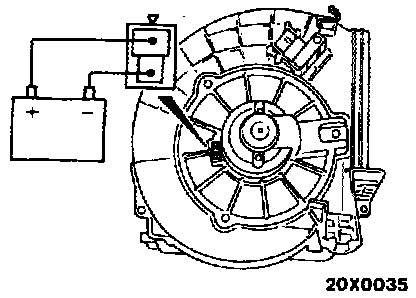

When battery voltage is applied between the terminals, check that the motor operates. Also, check an abnormal noise.

Resistor Resistance Check:

RESISTOR RESISTANCE CHECK
Use an ohmmeter to measure the resistance between the terminals as indicated below. Check that the measured value is at the standard value.

Measurement Terminal Standard Value -- Ohms
Between terminals 3 - 2 (LO) 1.83 ohms
Between terminals 3 - 4 (ML) 0.87 ohms
Between terminals 3 - 1 (MH) 0.31 ohms
