Exhaust Manifold: Description and Operation

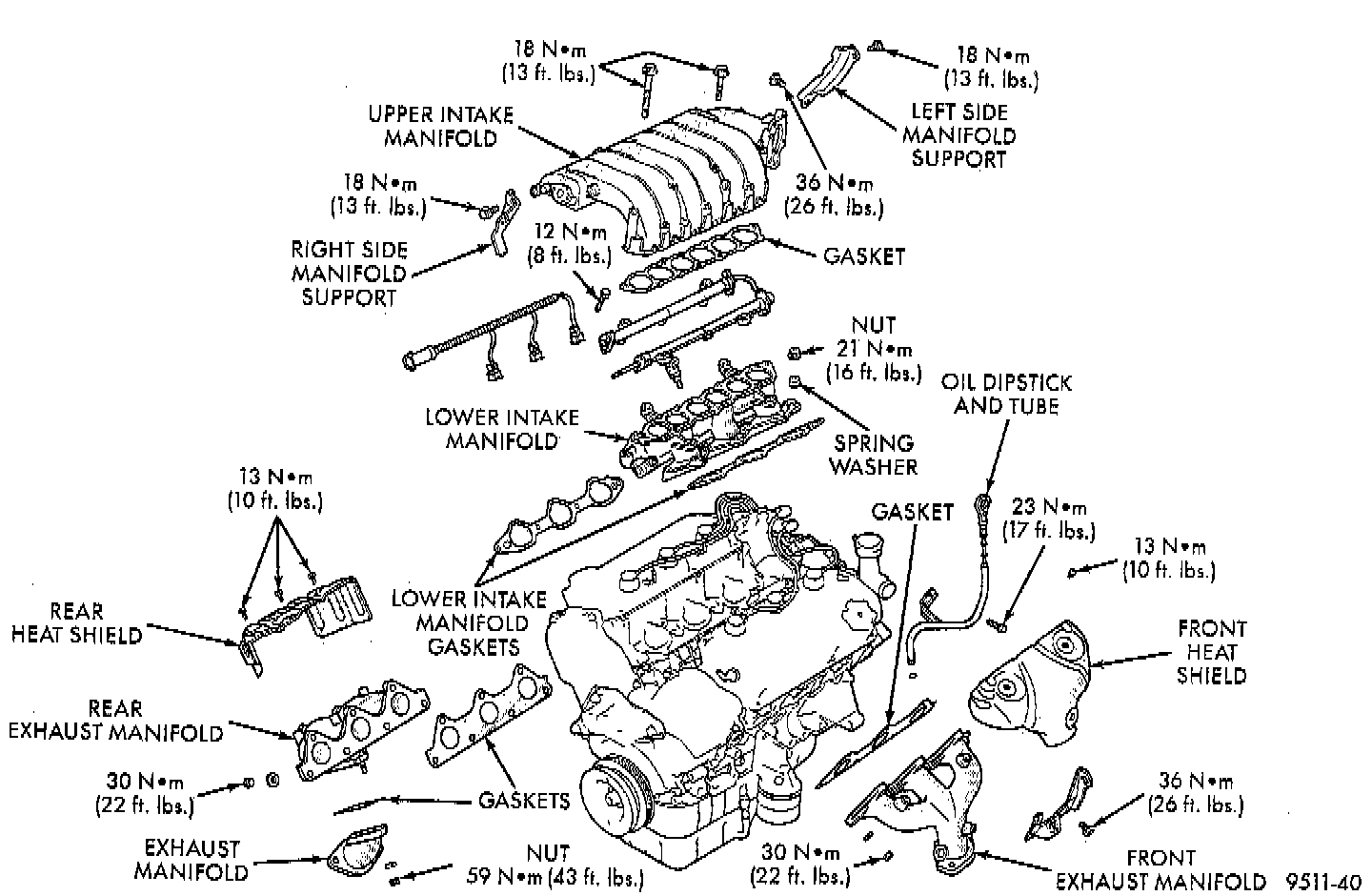

Both manifolds are made of cast nodular graphite iron for heat resistance. Exhaust gasses from the left cylinder bank, leave the left manifold through a stainless steel pipe and bellows routed under the engine to the right side manifold. The collected exhaust from both manifolds are combined, and exit to the exhaust pipe through a flex-joint.
