Camshaft Gear/Sprocket: Service and Repair

REMOVAL
1. Remove timing belt.

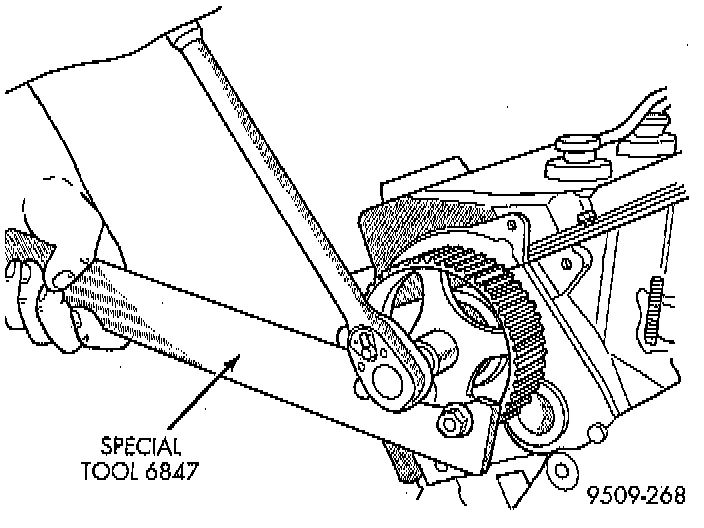

2. Hold camshaft sprocket with Special Tool 6847, or equivalent loosen and remove bolt and washer.
3. Remove camshaft sprocket from camshaft.

INSTALLATION
1. Place camshaft sprocket on camshaft.
2. Install bolt and washer to camshaft. Using Special Tool 6847, or equivalent hold camshaft sprocket and torque bolt to 88 Nm (65 ft. lbs.).
3. Install timing belt.
