Oil Pump Replacement

REMOVAL
1. Remove accessory drive belts.
2. Remove crankshaft damper.
3. Remove Timing Belt.

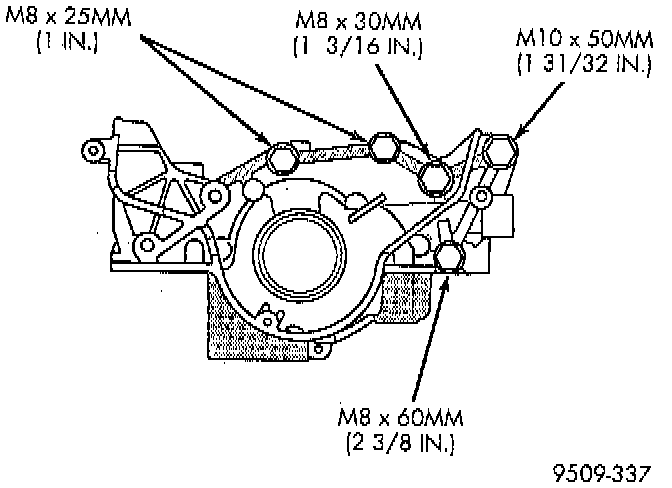

4. Remove bolts that attach oil pump to block.

INSTALLATION
1. Clean block and pump surfaces.
2. Prime oil pump before installation by filling rotor cavity with clean engine oil.





3. Apply Mopar gasket maker to oil pump as shown. Install oil-ring into the counter bore on the oil pump body discharge passage.
4. Install oil pump slowly onto crankshaft until seated to engine block. Tighten fasteners to M8 bolts to 14 Nm (10 ft. lbs.) and M10 bolts to 41 Nm (30 ft. lbs.).
