Oil Pan: Service and Repair

REMOVAL

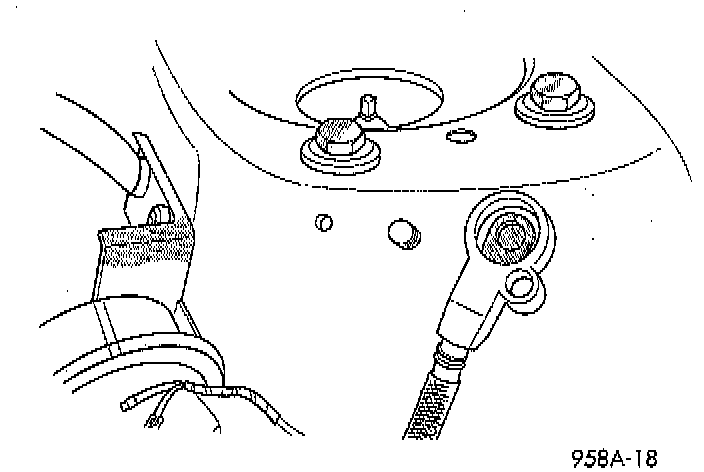

1. Disconnect battery negative remote cable.





2. Remove oil drain plug and drain oil.
3. Remove engine support module.
4. Remove dipstick tube.
5. Remove starter motor.
6. Remove engine to transaxle struts.
7. Remove transaxle inspection cover.

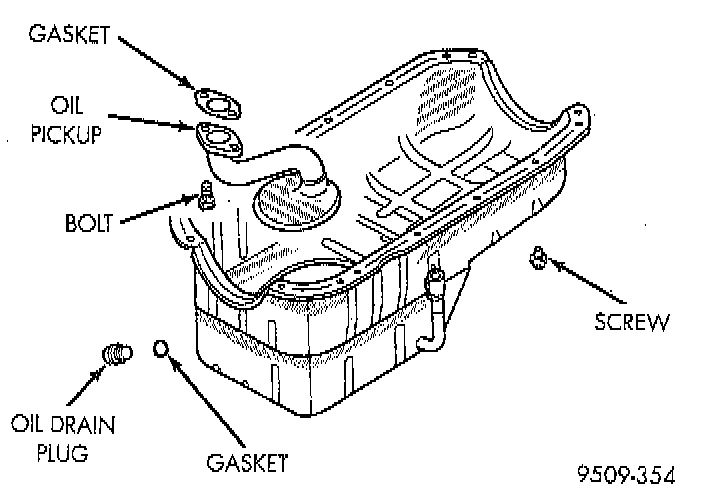

8. Remove oil pan.

NOTE: Oil pan to cylinder block sealing is provided with Mopar Silicone Rubber Adhesive Sealant or equivalent gasket material.

INSTALLATION

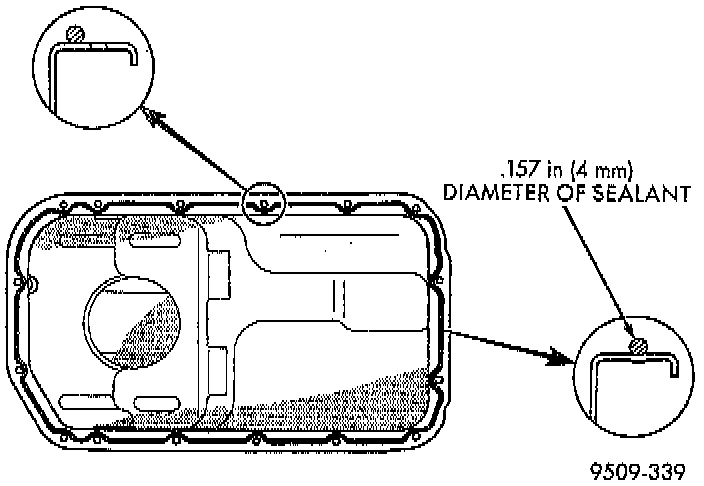

1. Apply sealant as shown.
2. Install pan and tighten screws to 6 Nm (50 inch lbs.).
3. Reverse removal procedure for installation.
4. Install correct Amount of new oil.
