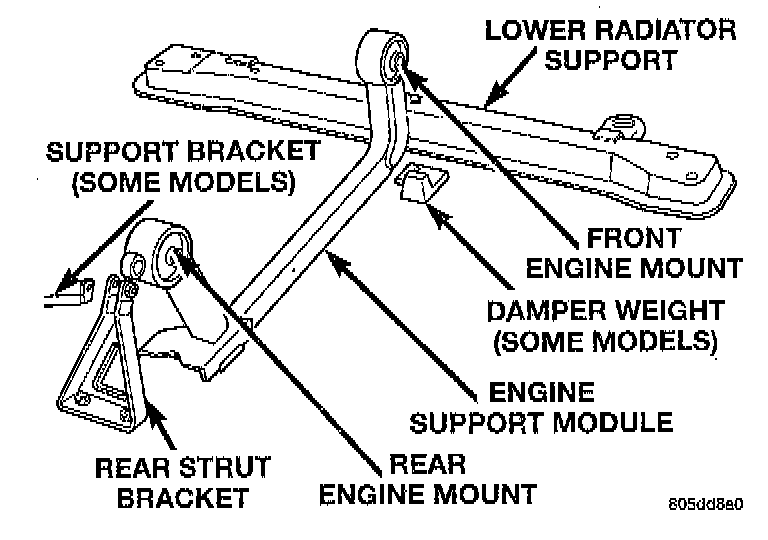

Engine Support Module (Front and Rear Mounts)

REMOVAL
1. Raise vehicle on hoist.
2. Remove thru bolt at rear mount and remove bolts attaching module to crossmember.
3. Remove upper attaching bolt from rear support strut bracket.
4. Remove front attaching bolts from support module to lower radiator support.
5. Support cooling module.
6. Remove lower radiator support bolts, and remove support.
7. Remove thru bolt at front mount and remove support module.

INSTALLATION
1. Install thru bolt at front mount. Do not tighten at this time.
2. Install lower radiator support.
3. Install attaching bolts from support module to lower radiator support.
4. Install upper bolt at rear support strut bracket.





5. Install thru bolt at rear mount and tighten to 61 Nm (45 ft. lbs.).





6. Tighten thru bolt at front mount and tighten to 61 Nm (45 ft. lbs.).
