Cooling System Leak Checks

CHECKING FOR EXTERNAL LEAKS

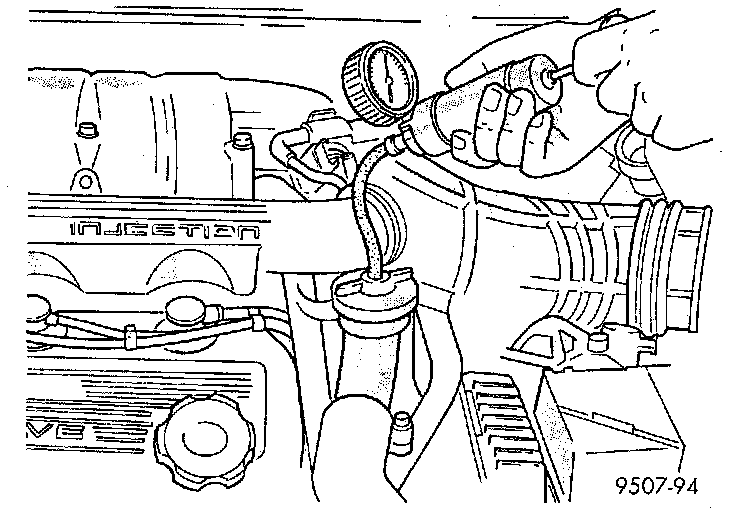

With engine not running, wipe the coolant filler neck sealing seat clean. The radiator should be full. Attach a radiator pressure tester to the coolant filler neck, as shown and apply 104 kPa (15 psi) pressure. If the pressure drops more than 2 psi in 2 minutes inspect all points for external leaks.

NOTE: All hoses, radiator and heater, should be moved while at 104 kPa (15 psi) since some leaks occur while driving due to engine rock, etc.

CHECKING FOR INTERNAL LEAKS
If there are no external leaks after the gauge dial shows a drop in pressure, detach the tester. Start engine and run the engine to normal operating temperature in order to open the thermostat and allow the coolant to expand. Re-attach the tester. If the needle on the dial fluctuates it indicates a combustion leak, usually a head gasket leak.

WARNING: With tool in place pressure builds up fast. Any excessive amount of pressure built up by continuous engine operation must be released to a safe pressure point. Never permit pressure to exceed 138 kPa (20 psi).

If the needle on the dial does not fluctuate, race the engine a few times. If an abnormal amount of coolant or steam is emitted from the tail pipe, it may indicate a faulty head gasket, cracked engine block or cylinder head. There may be internal leaks which can be determined by removing the oil dip-stick. If water globules appear intermixed with the oil it will indicate a internal leak in the engine. If there is an internal leak, the engine must be disassembled for repair.
