Radiator Drain Plug: Service and Repair

CAUTION: Plastic tanks, while stronger then brass are subject to damage by impact, such as wrenches.

REMOVAL
Turn the drain cock stem counterclockwise to unscrew the stem. When the stem is unscrewed to the end of the threads, pull the stem from the radiator tank.

NOTE: To open draincock on this vehicle, use a 3/8 inch drive extension 3" long, a 19mm socket with universal.

INSTALLATION

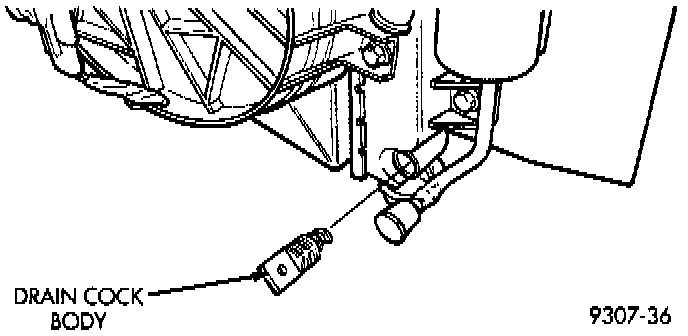

1. Push the draincock assembly body into the tank opening until it snaps into place.
2. Tighten the draincock stem by turning clockwise to 2.0 - 2.7 Nm (18 - 25 inch lbs.) torque.
