Front End Lighting

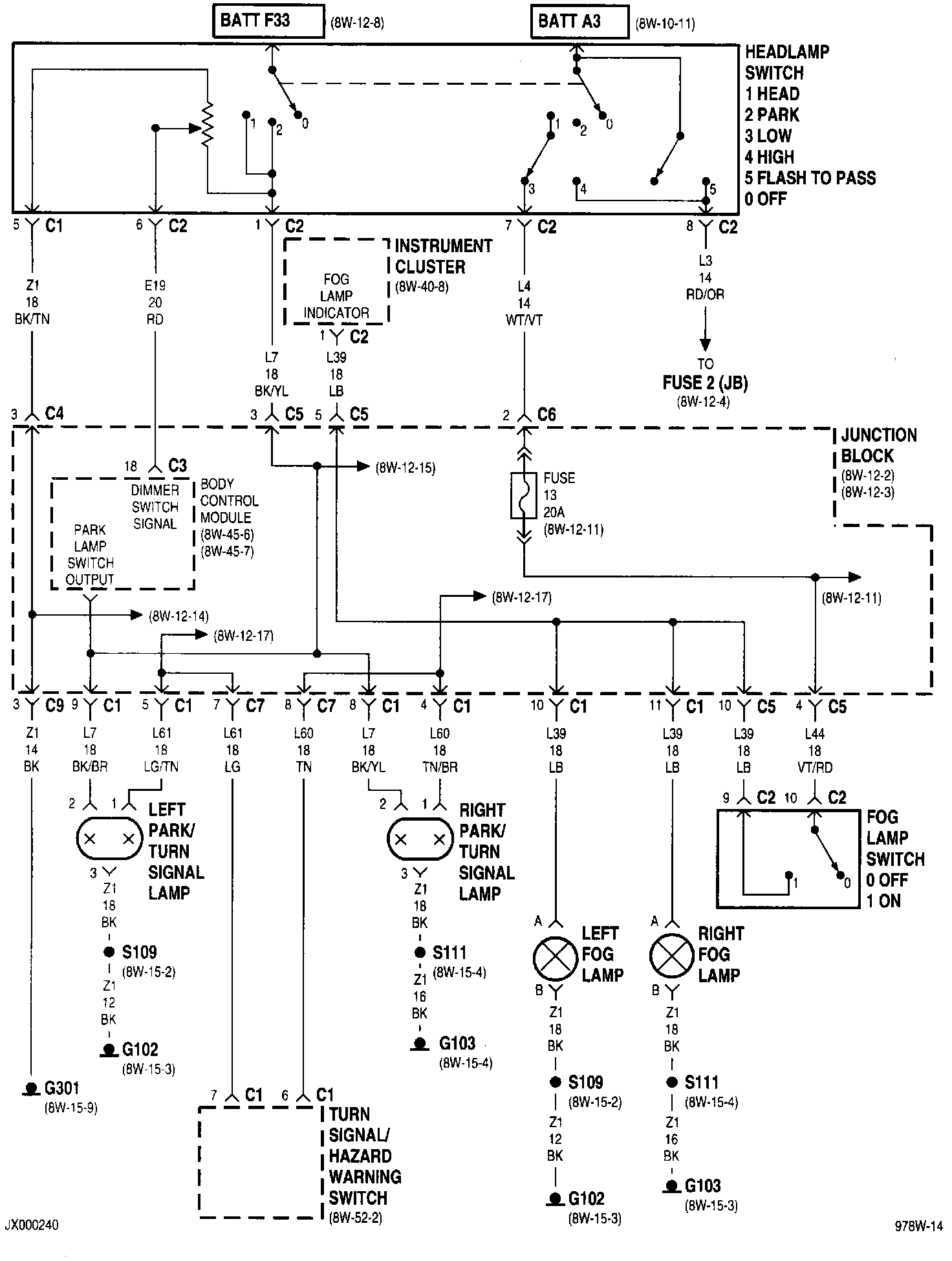

Front Lighting (Part 1 Of 3):

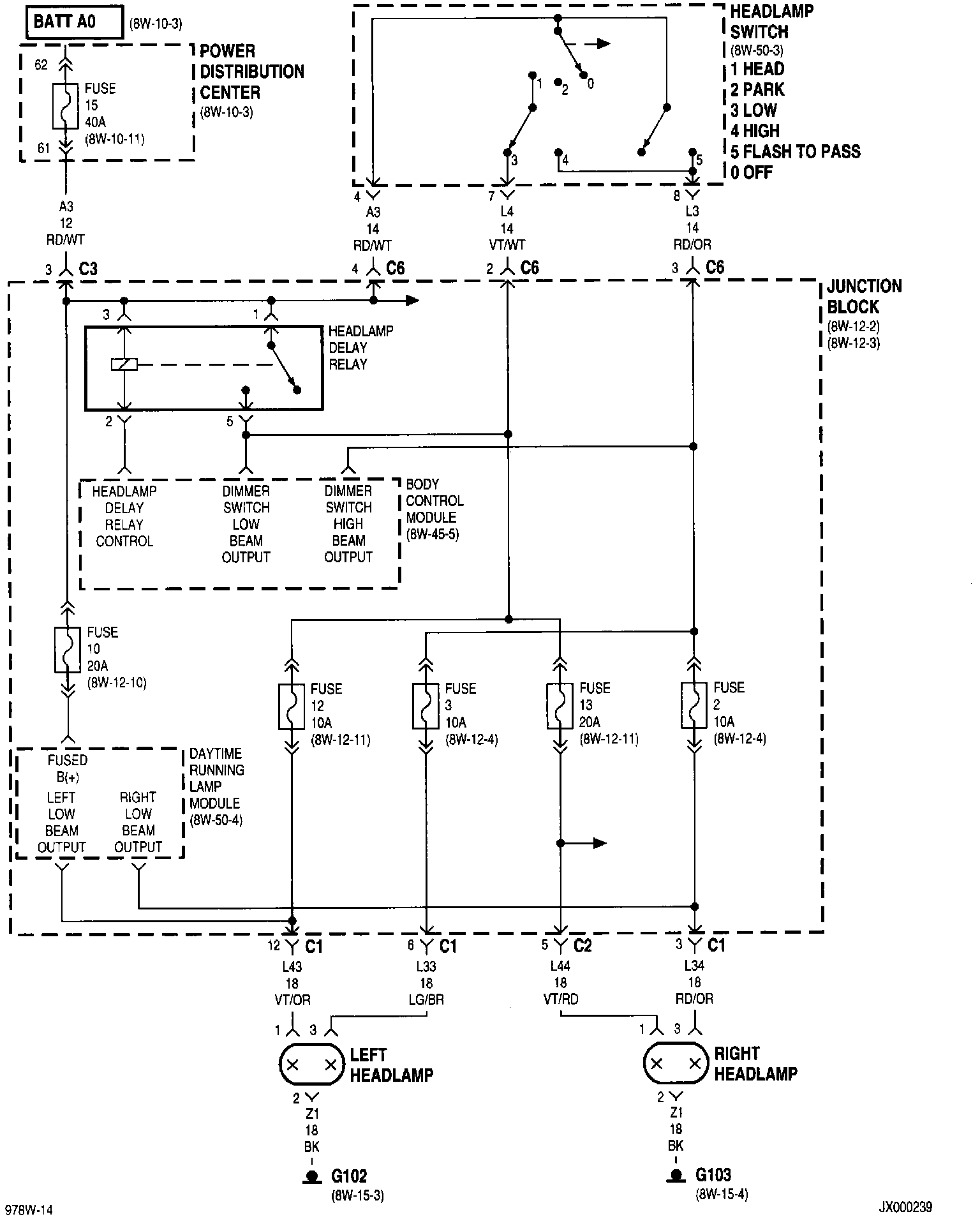

Front Lighting (Part 2 Of 3):

Front Lighting (Part 3 Of 3):

NOTE: To view sheets referred to in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
