Diagram

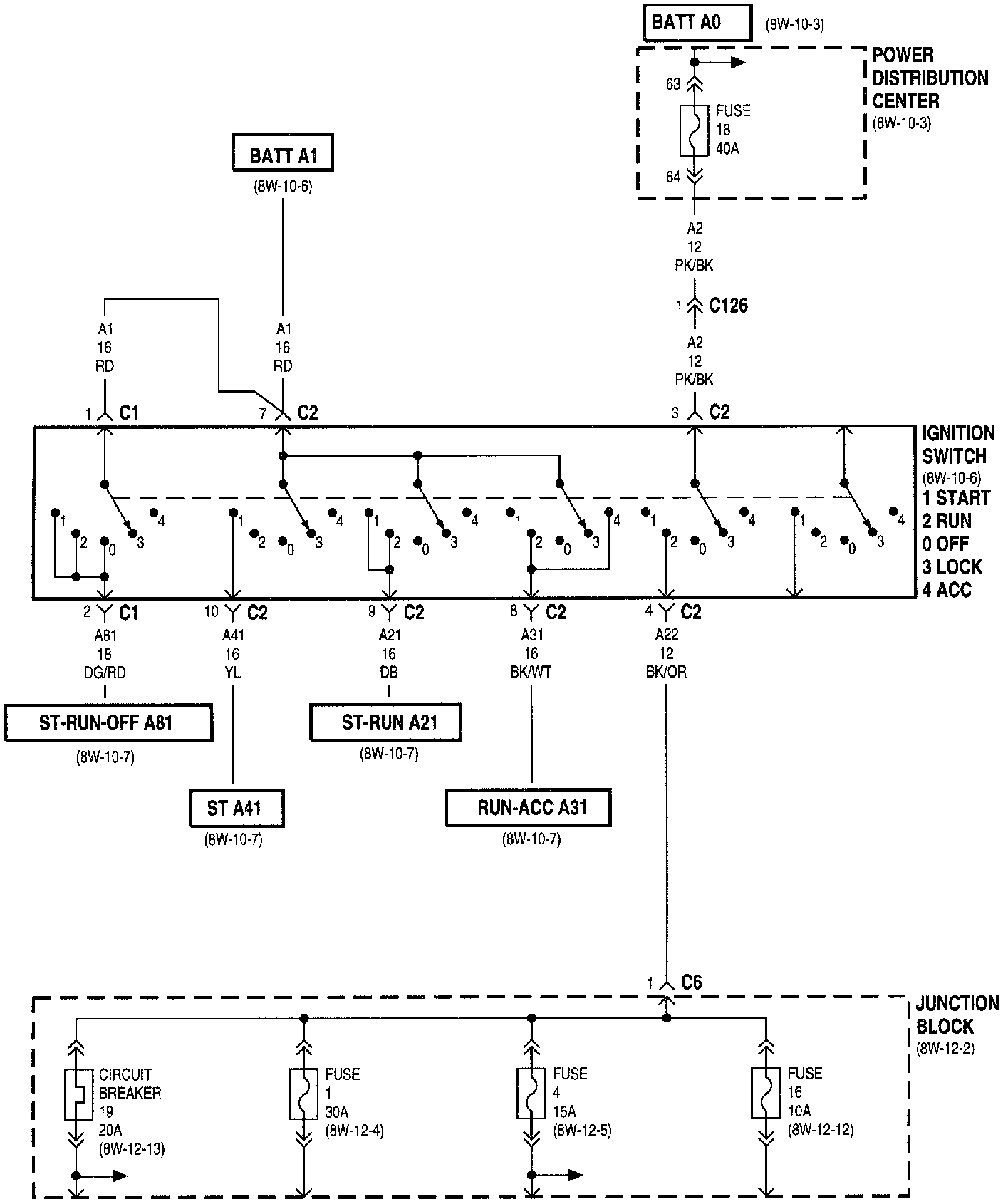

Power Distribution (Part 1 Of 12):

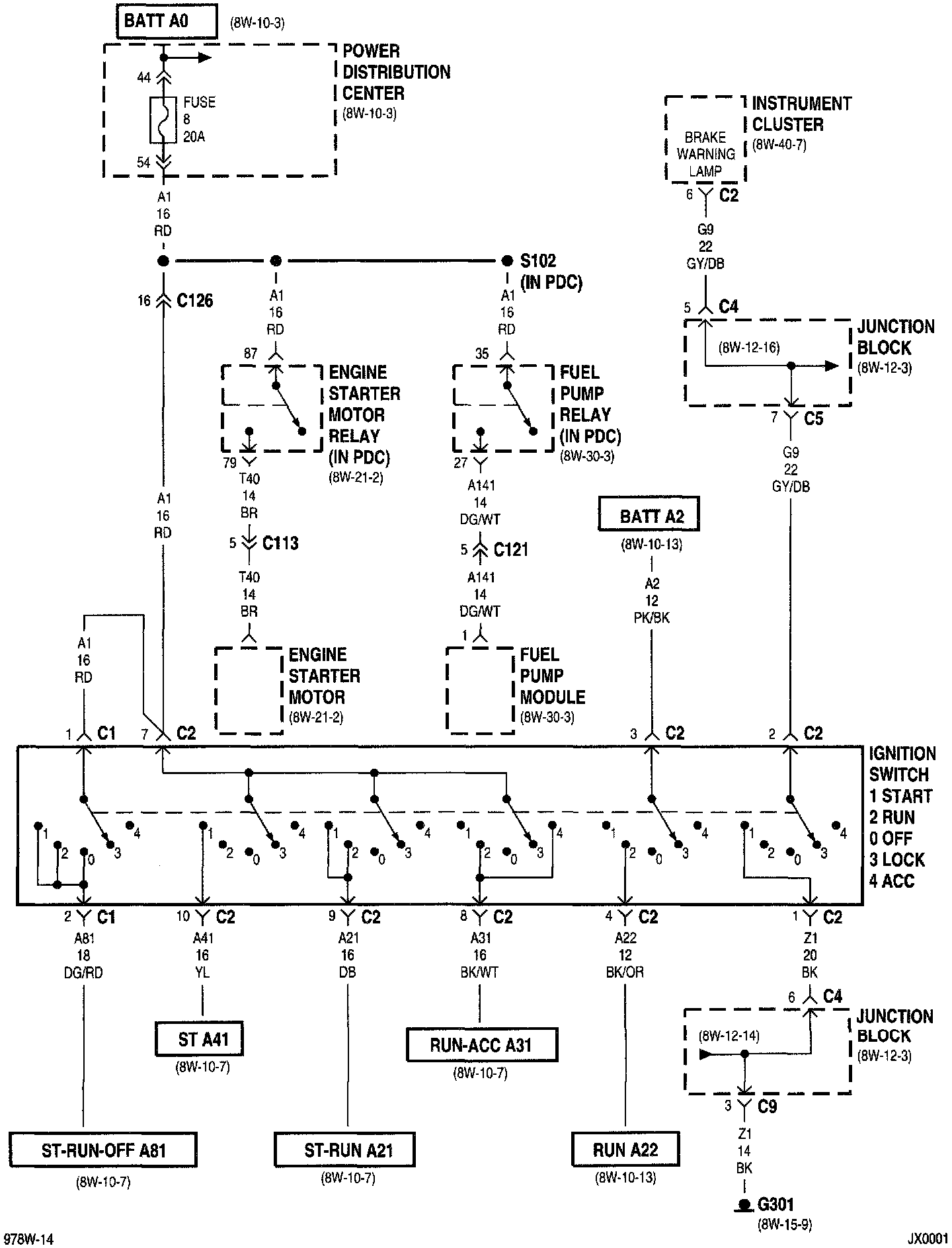

Power Distribution (Part 2 Of 12):

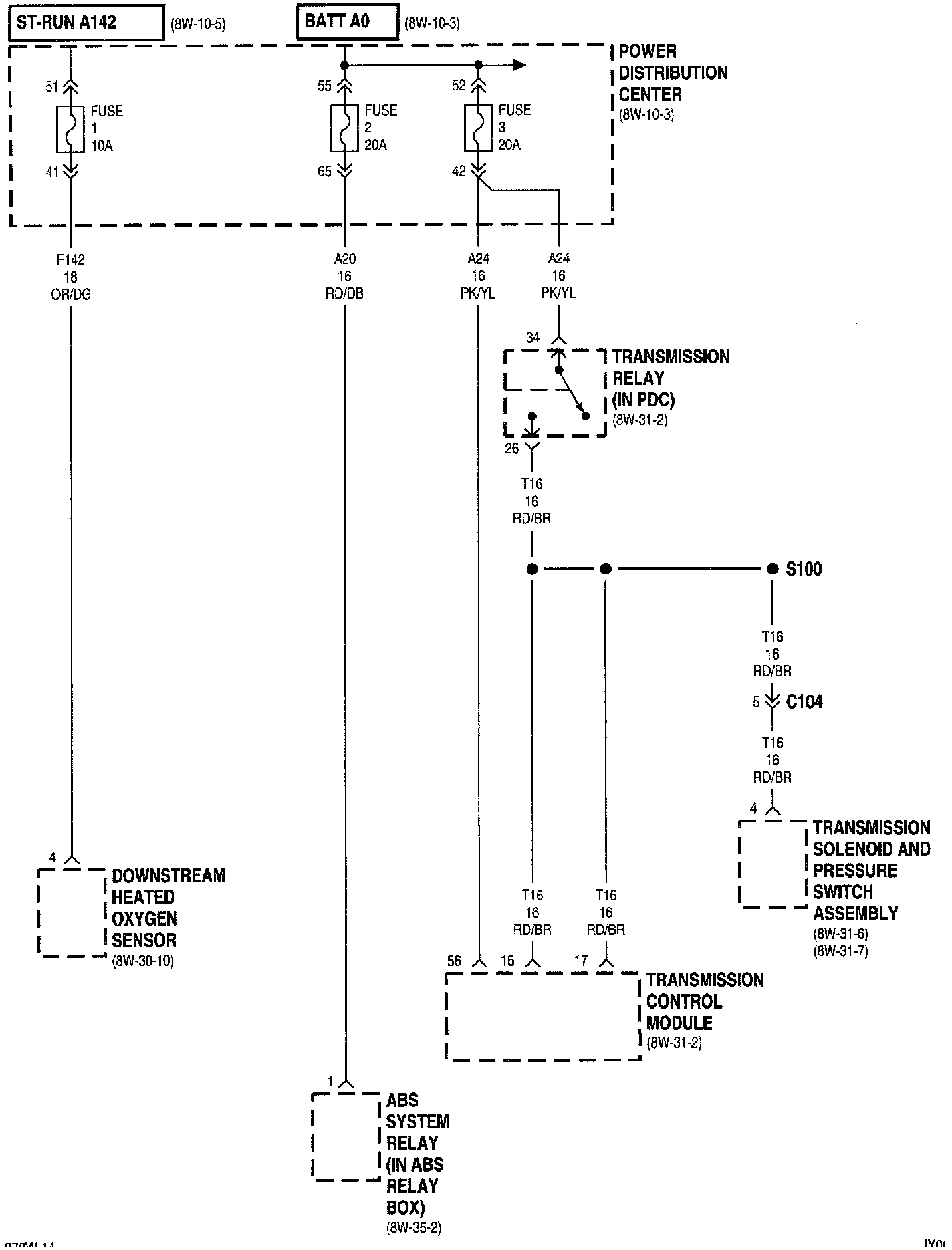

Power Distribution (Part 3 Of 12):

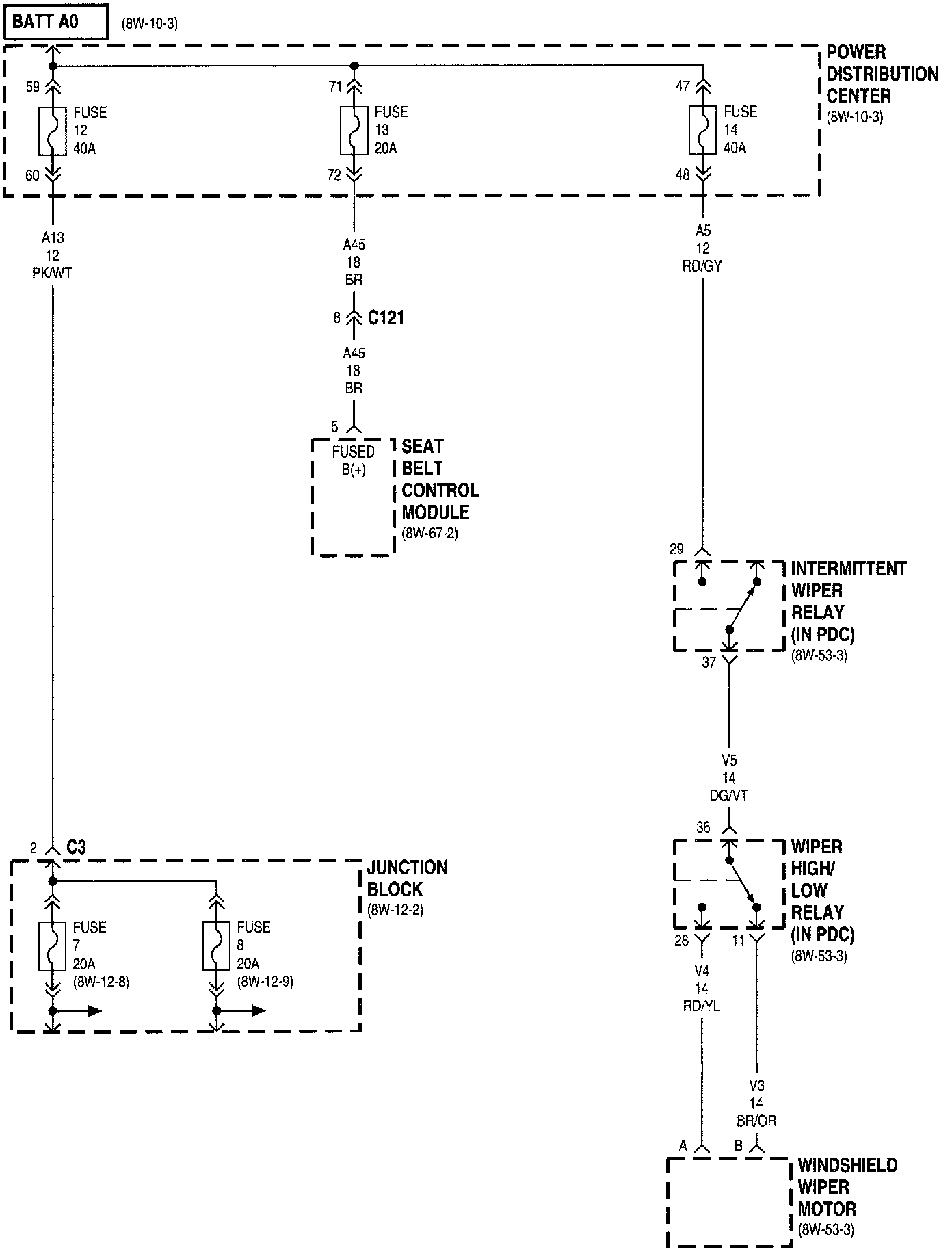

Power Distribution (Part 4 Of 12):

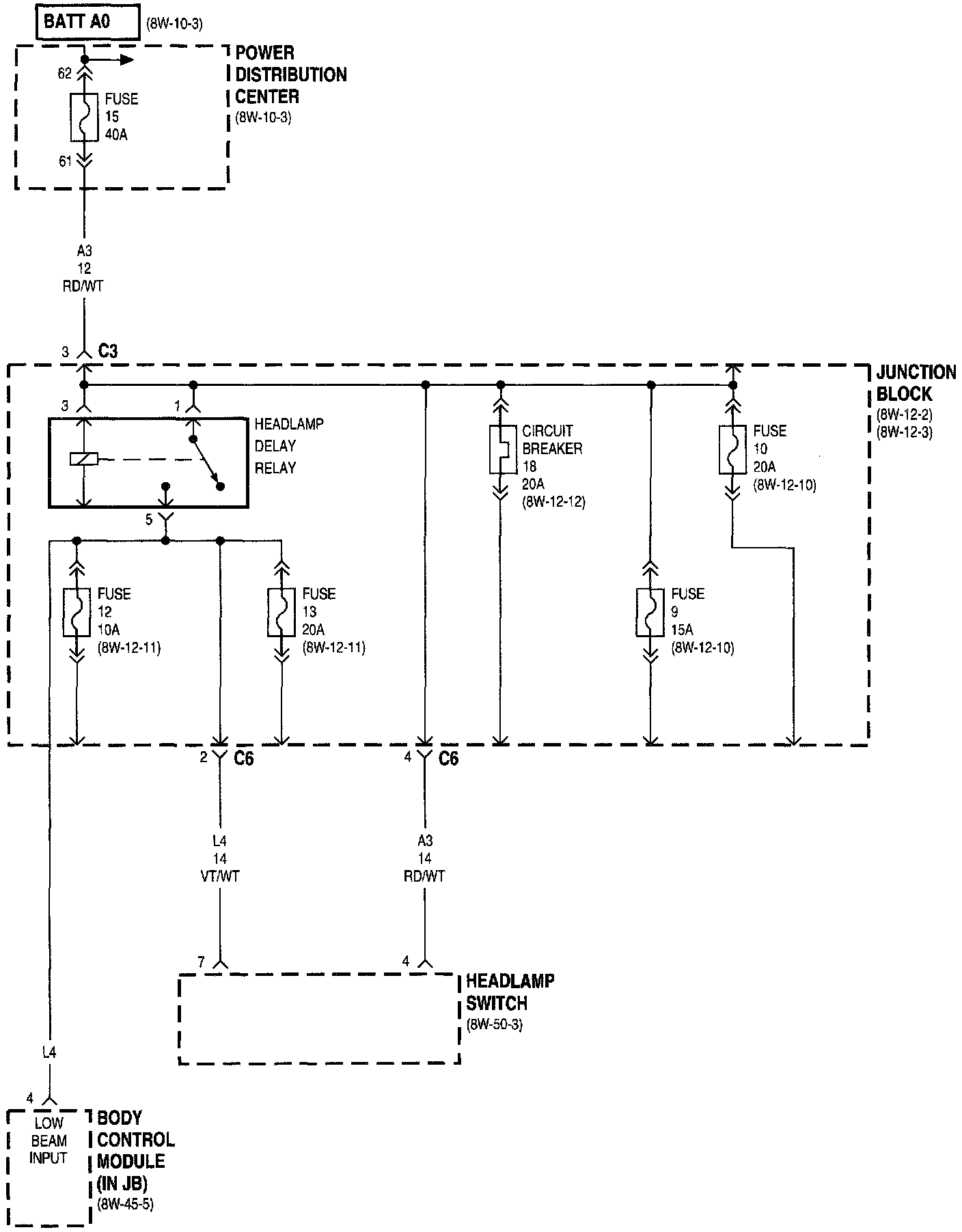

Power Distribution (Part 5 Of 12):

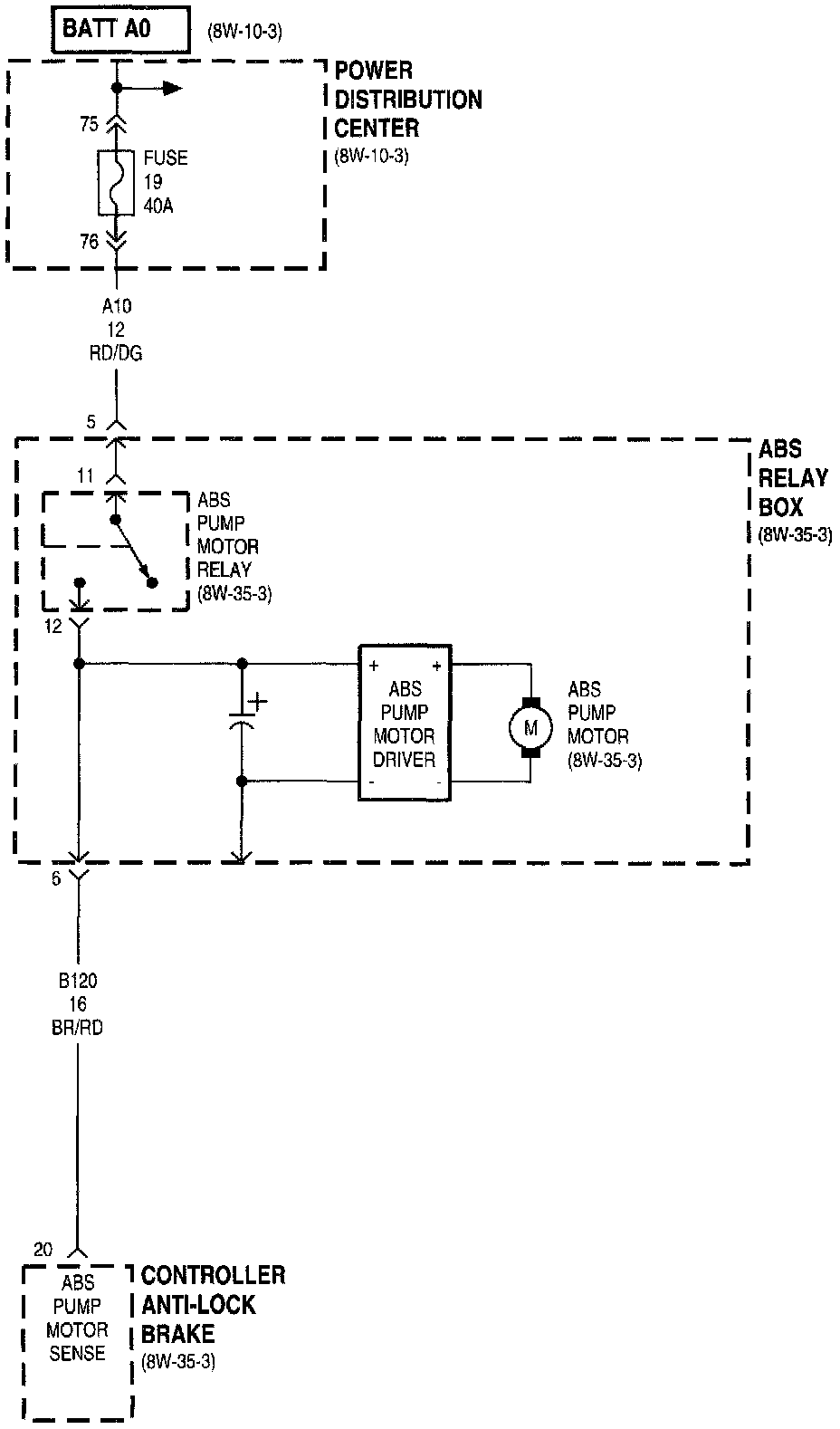

Power Distribution (Part 6 Of 12):

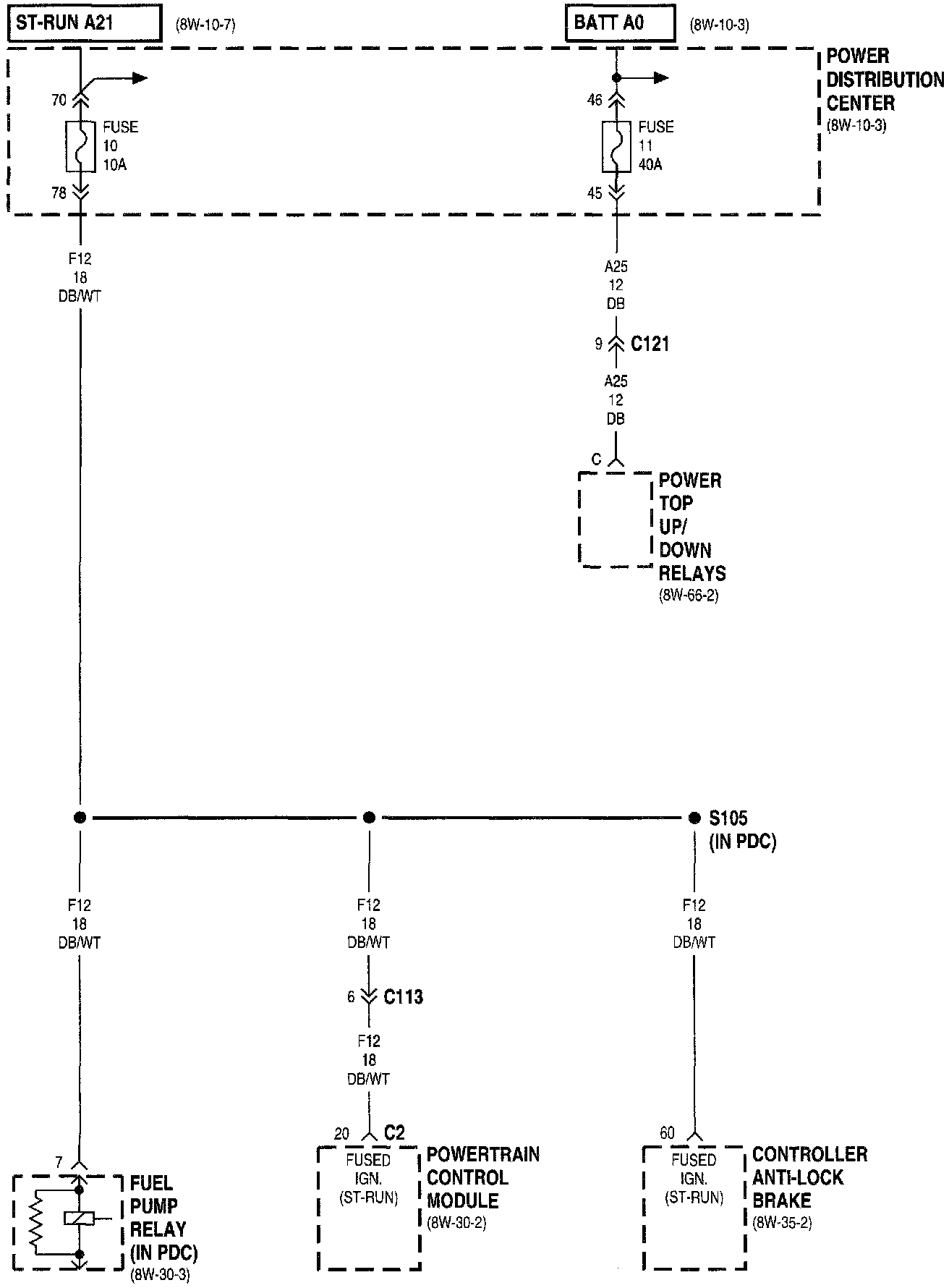

Power Distribution (Part 7 Of 12):

Power Distribution (Part 8 Of 12):

Power Distribution (Part 9 Of 12):

Power Distribution (Part 10 Of 12):

Power Distribution (Part 11 Of 12):

Power Distribution (Part 12 Of 12):

NOTE: To view sheets referred in these diagrams, see Diagram Information and Instructions/Complete Body and Chassis Diagrams.
