Installation

PROCEDURE

CAUTION: Proper installation of wheel speed sensor cables is critical to continued system operation. Be sure that cables are installed in retainers. Failure to install cables in retainers as in this section may result in contact with moving parts and/or over extension of cable, resulting in an open circuit.

Wheel Speed Sensor Connection To Vehicle Wiring Harness:

1. Connect the wheel speed sensor cable connector to the vehicle wiring harness.

Speed Sensor Cable Routing Brackets:

2. Install the speed sensor cable assembly grommet into the front inner fender. Install speed sensor cable grommet retainer/routing bracket on the inner fender of the vehicle and install and securely tighten attaching bolt.

Correct Front Wheel Speed Sensor Cable Routing:

CAUTION: When installing the wheel speed sensor cable routing bracket on the steering knuckle, the speed sensor cable must be looped toward the shock absorber. If speed sensor cable is not routed in this direction it will rub against the tire or wheel, damaging the speed sensor cable.

3. Install the speed sensor cable routing bracket on the steering knuckle. Install and tighten routing bracket mounting bolt to a torque of 12 Nm (105 inch lbs.)

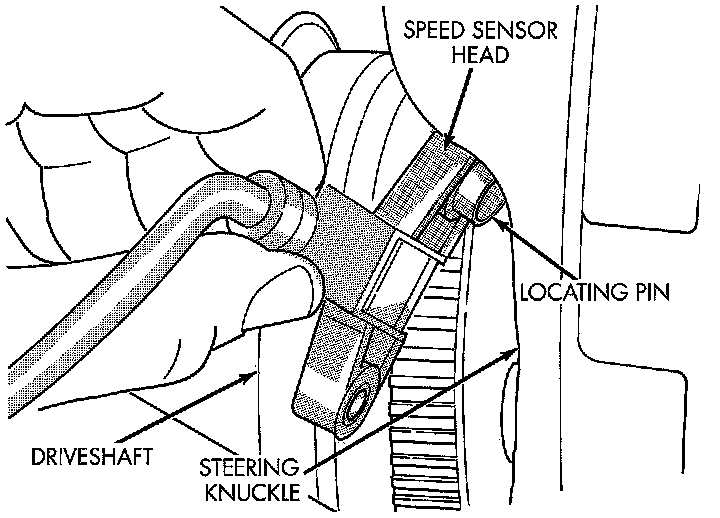

Installing Speed Sensor Head In Steering Knuckle:

4. Install speed sensor head on steering knuckle. When installing speed sensor head on steering knuckle, apply a small amount of grease on speed sensor locating pinch Use Mopar, Multi-Purpose Grease or an equivalent on speed sensor head locating pinch Install the speed sensor head attaching screw and tighten to a torque of 6 Nm (55 inch lbs.).
5. Install the wheel and tire assembly on vehicle.
6. Road test vehicle to ensure proper operation of the base and ABS systems.
