Electronic Brake Control Module: Service and Repair

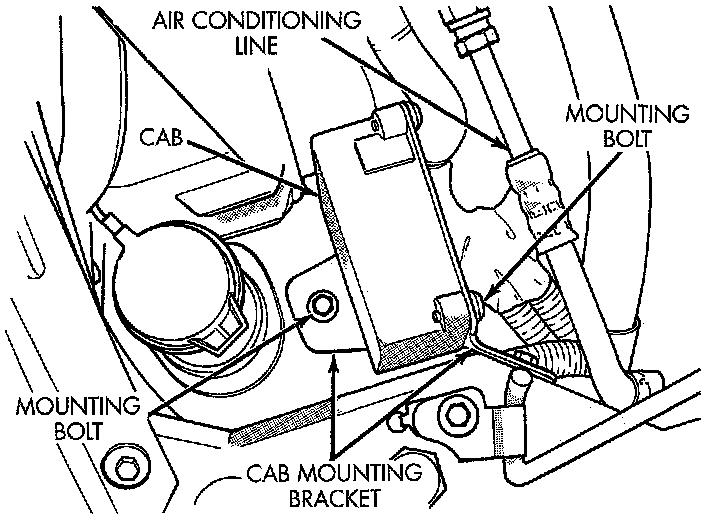

Controller Antilock Brake Location:

REMOVE
1. Turn vehicle ignition off.

CAB 60-Way Wiring Harness Connector:

2. Disconnect the wiring harness 60 way connector from the Controller Antilock Brake Module (CAB). Verify that the vehicle ignition is off before removing the 60 way connector.

CAB Bracket To Engine Compartment Mounting:

3. Remove the 2 bolts attaching the CAB mounting bracket to inner fender and front upper crossmember.
4. Remove the CAB from the vehicle.

INSTALL
1. Install the CAB and the mounting bracket assembled, on the right inner fender of the vehicle.
2. Install the 2 bolts mounting the CAB bracket to the vehicle. Tighten both mounting bolts to a torque of 9 Nm (75 inch lbs.).
3. Install 60-way wiring harness connector into the CAB 60-way connector by hand until seated as far as possible. Then use CAB connector retaining bolt to fully seat wiring harness connector into the CAB.
4. Tighten the 60-way connector retaining bolt to a torque of 4 Nm (35 inch lbs.).
