Home >> Chrysler >> 1997 >> Sebring Convertible V6-2.5L VIN H >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Trouble Code (TC) Tests >> DTC Test - CODE TO TC TEST CHART (Checking for Trouble Codes)

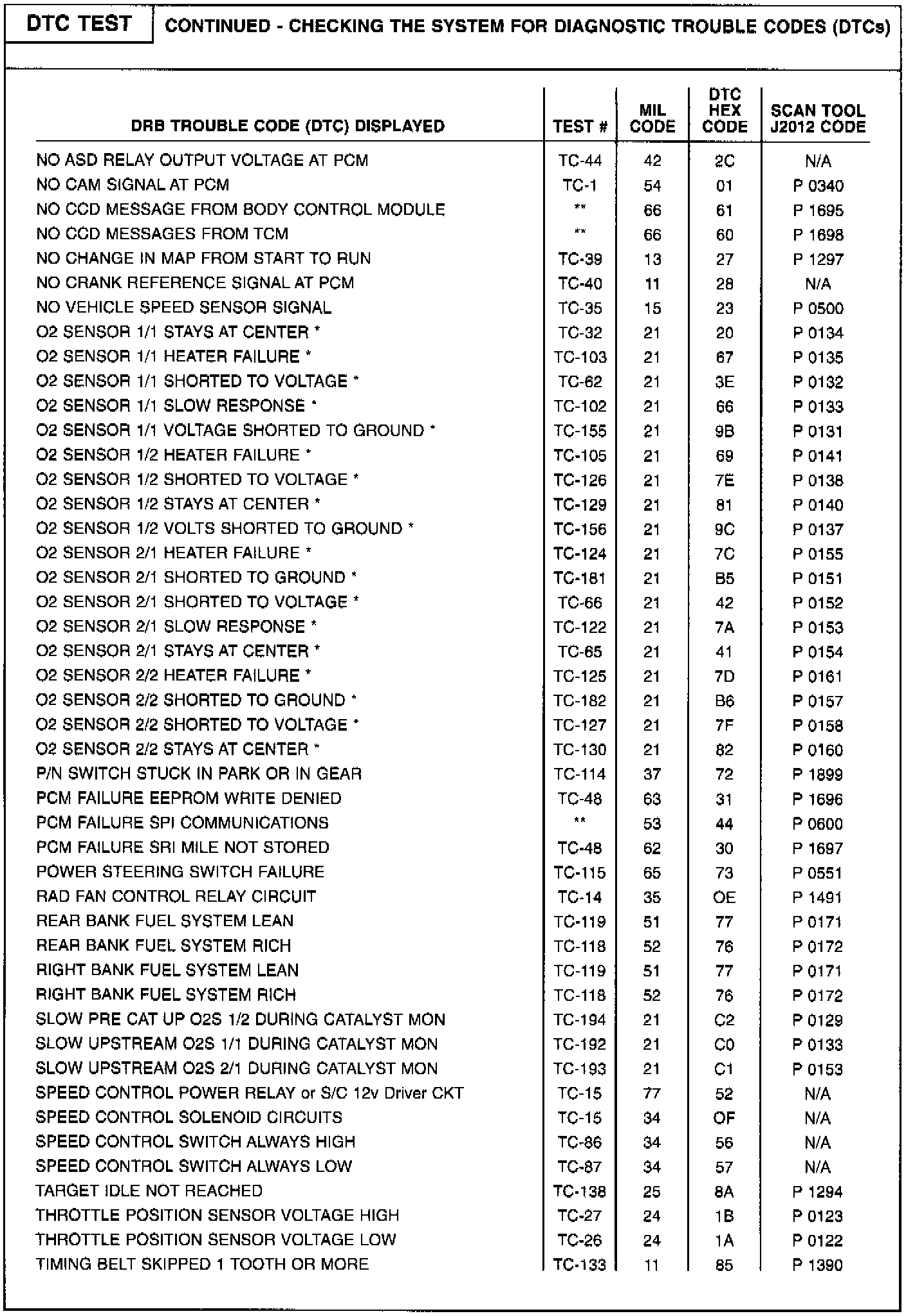

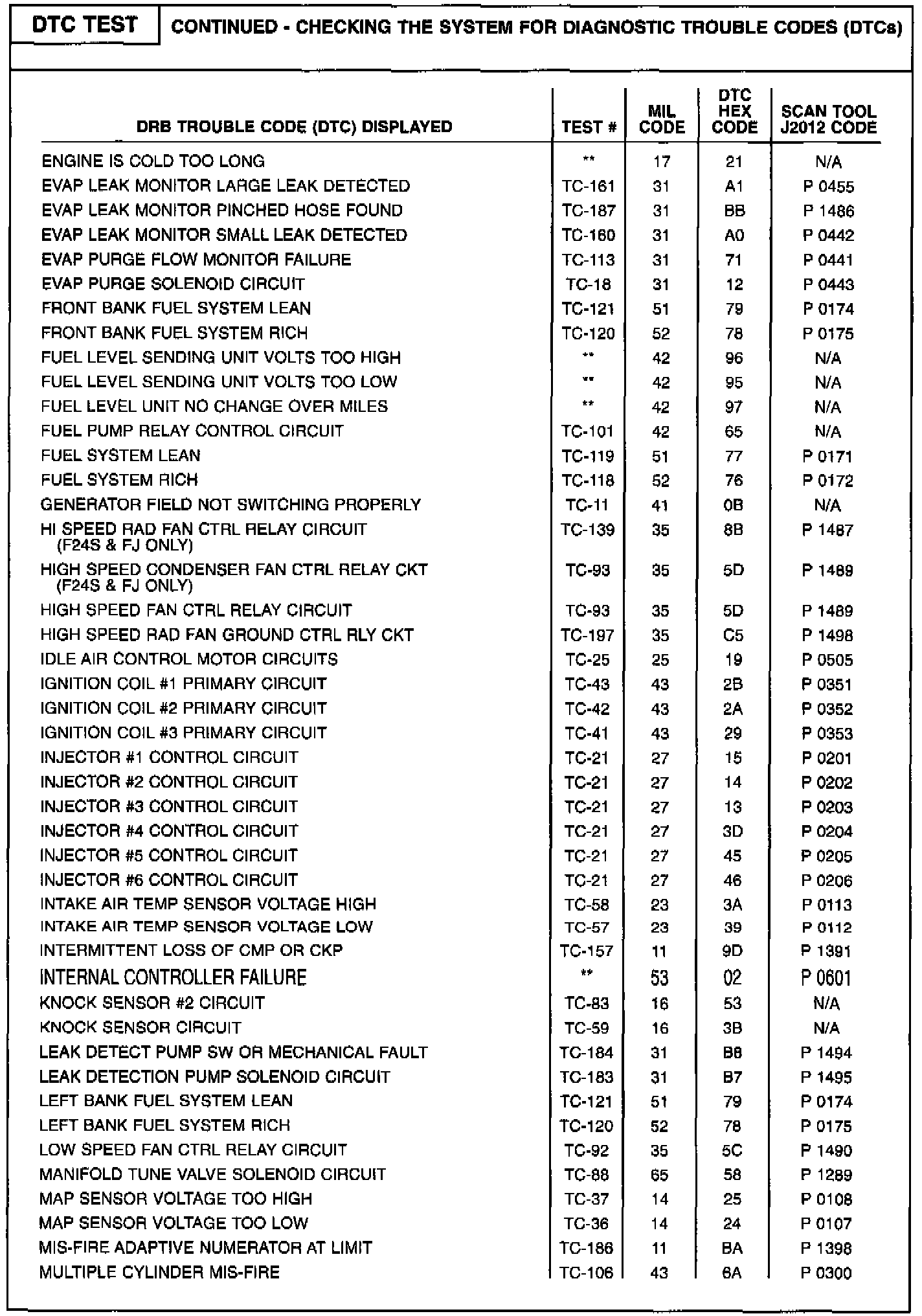

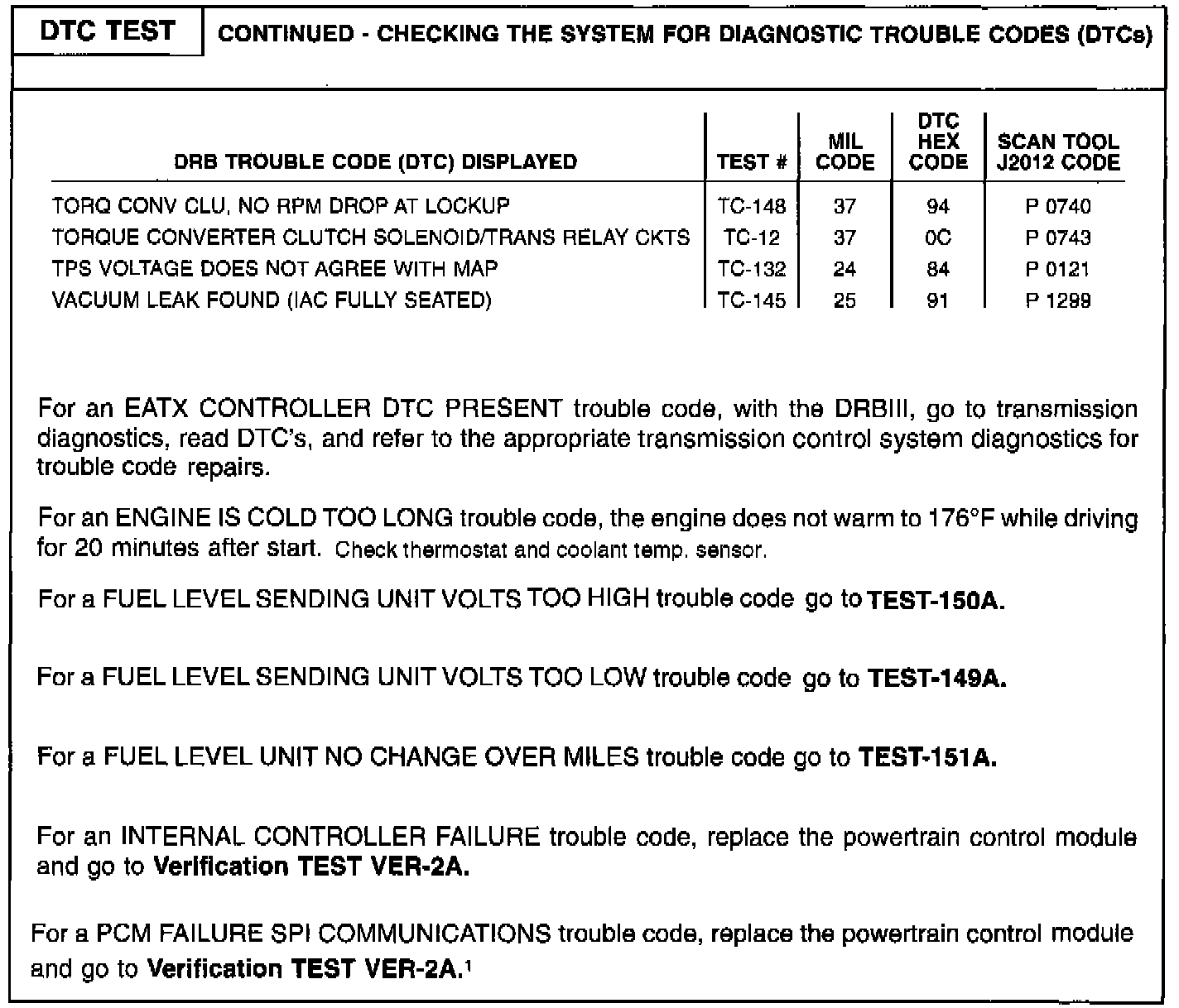

DTC Test - CODE TO TC TEST CHART (Checking for Trouble Codes)

DTC Test:

DTC Test:

DTC Test:

DTC Test:
