Test 4D

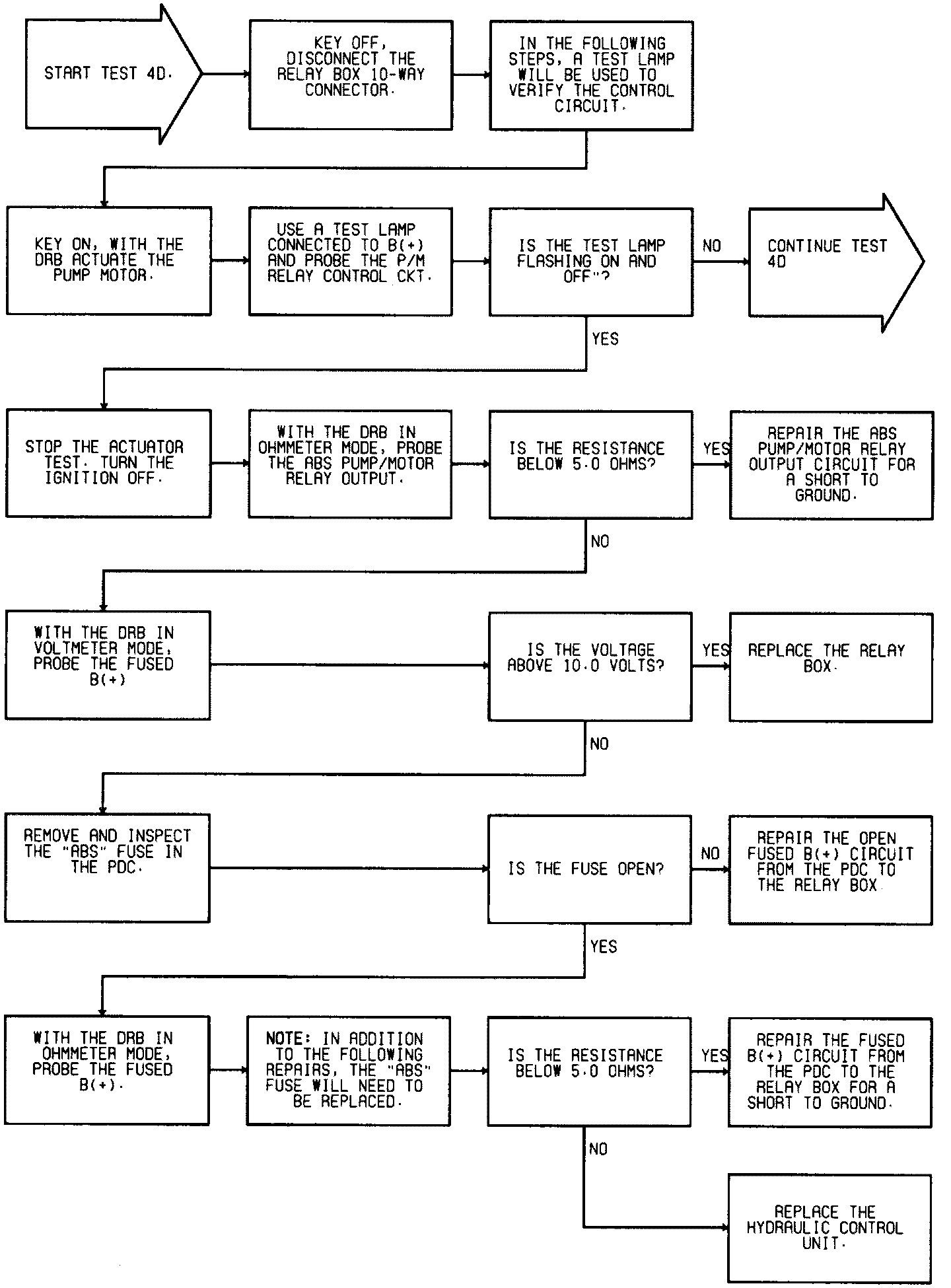

Test 4D: Repairing -- Pump/Motor Circuit (Part 1 Of 2):

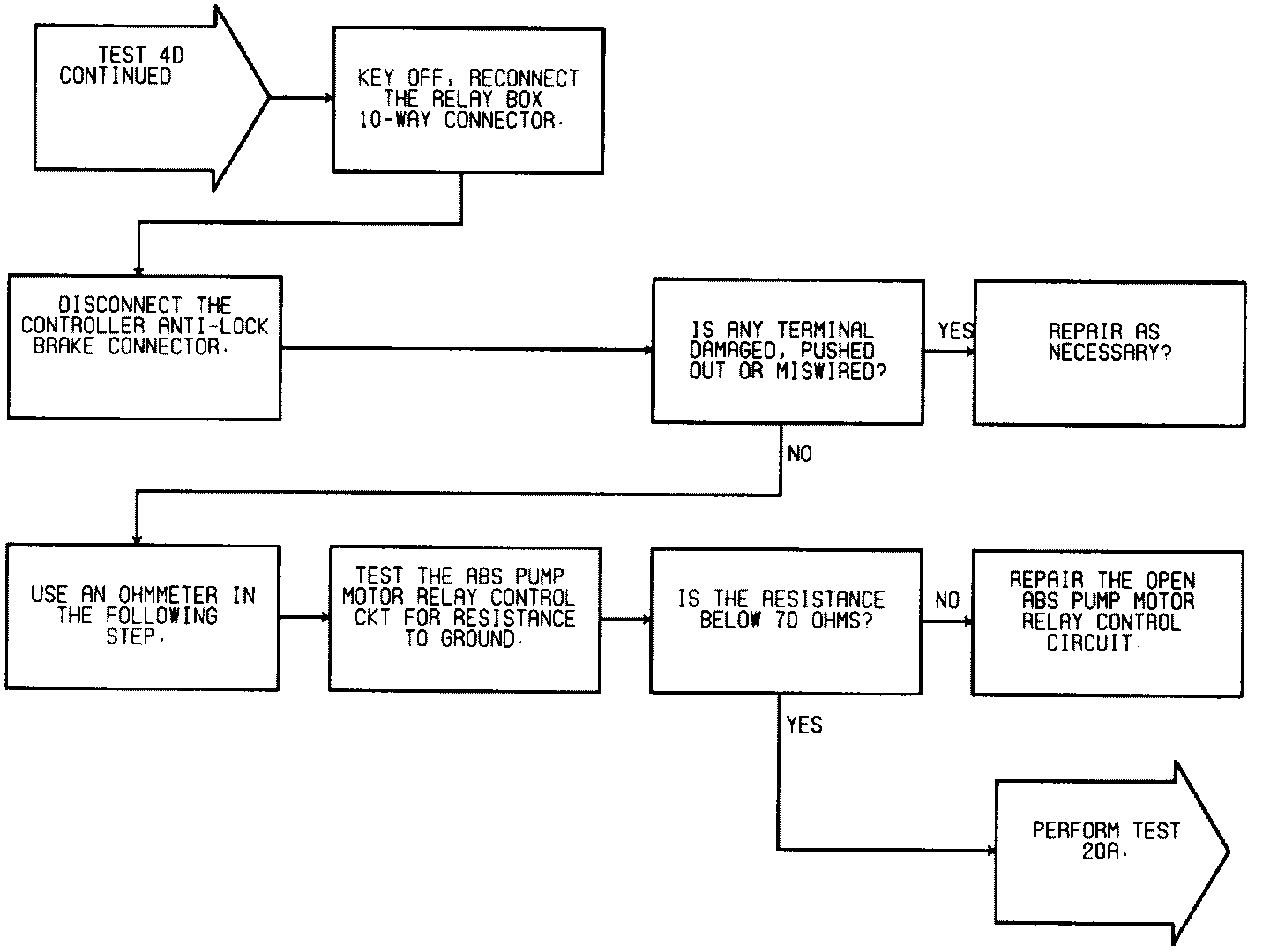

Test 4D: Reparing -- Pump/Motor Circuit (Part 2 Of 2):

System Relay Circuits Schematics:

Hydraulic Control Unit:

Power Distribution Center:

NOTE: You must perform Test 4A before proceeding with this test.
