Test 2B - Modulator Circuits

Test 2B: Repairing -- Modulator Circuits (Part 1 Of 2):

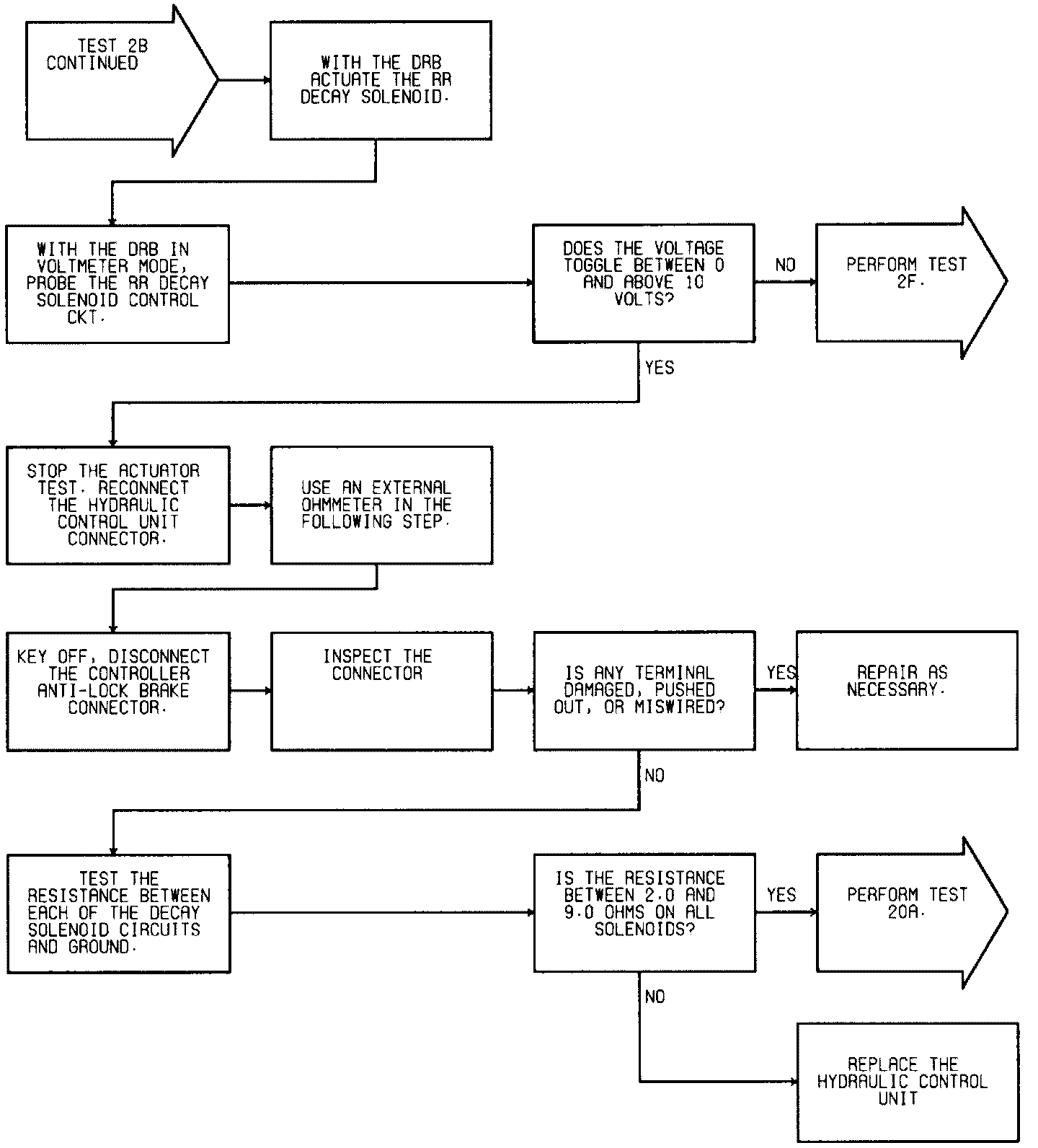

Test 2B: Repairing -- Modulator Circuits (Part 2 Of 2):

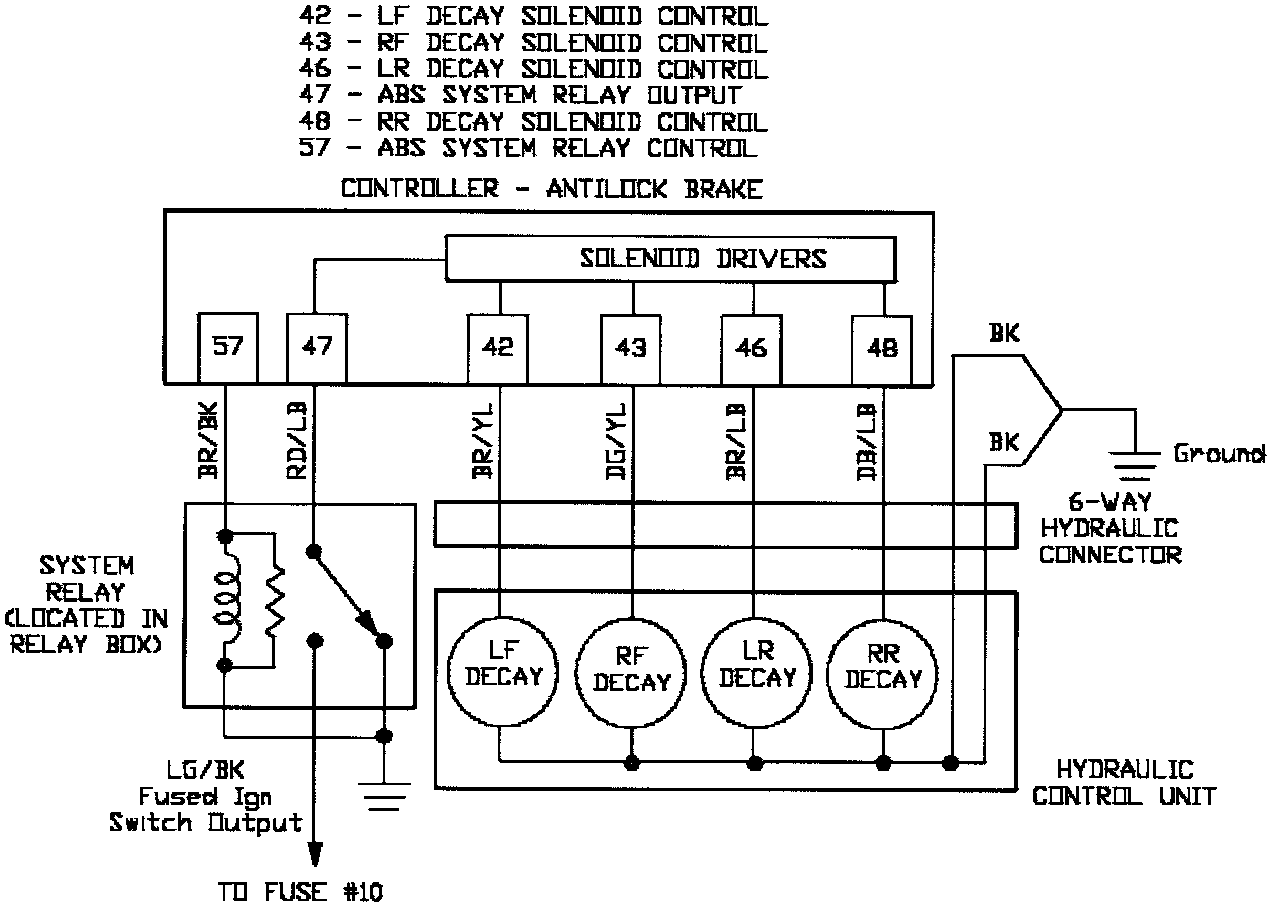

Modulator Schematics:

Hydraulic Control Unit:

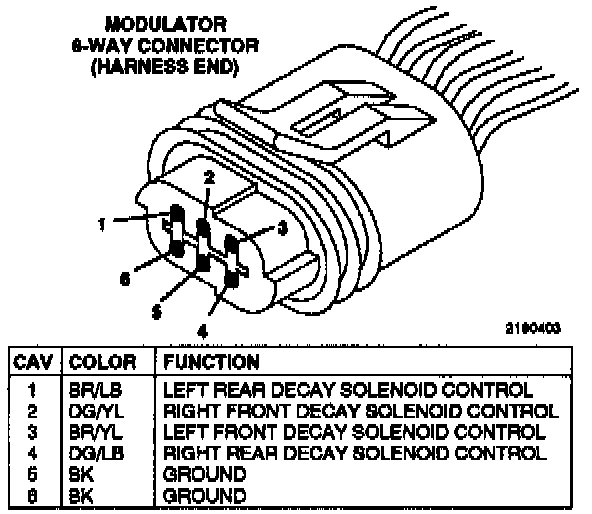

Modulator Connector:

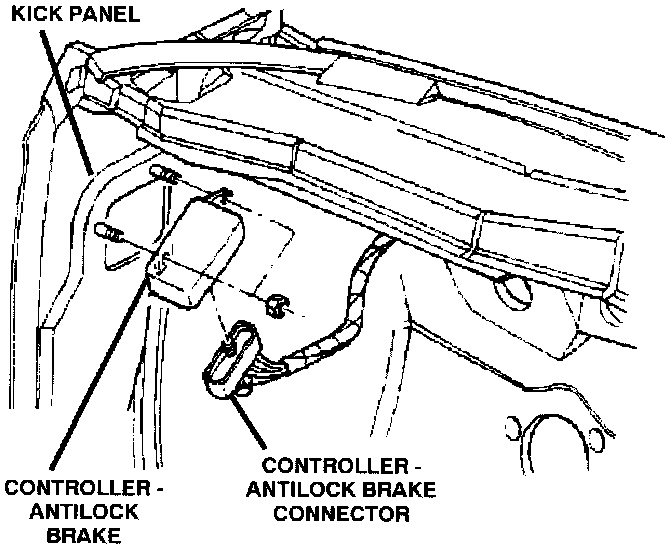

Controller Antilock Brake And Connector:

NOTE: You must perform Test 2A before proceeding with this test.
