Test 11B - Right Front Wheel Speed Sensor

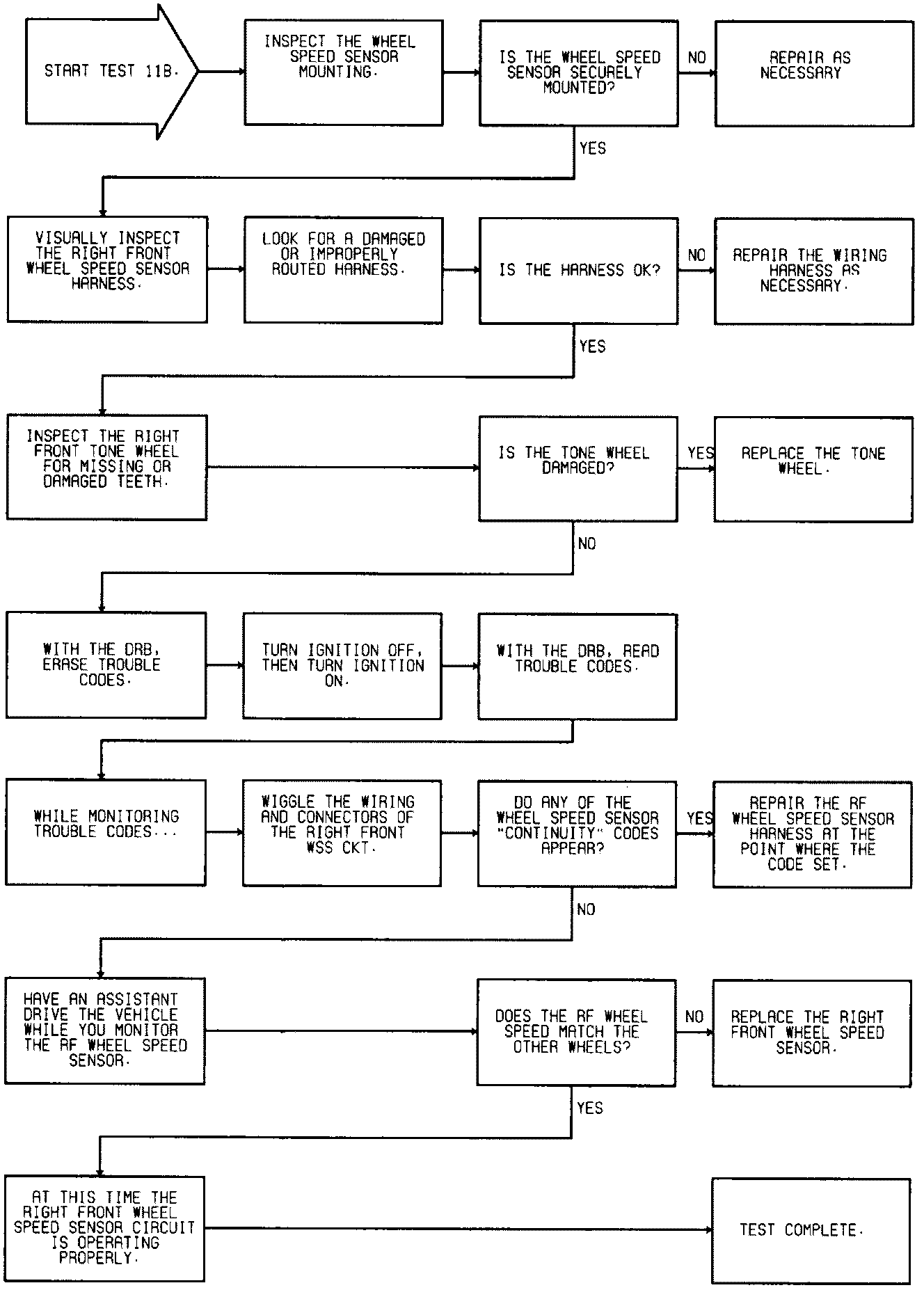

Test 11B: Repairing -- Right Front Wheel Speed Sensor:

Front Wheel Speed Sensor:

ABS Electrical Layout:

NOTE: You must perform Test 11A, before performing this test.
